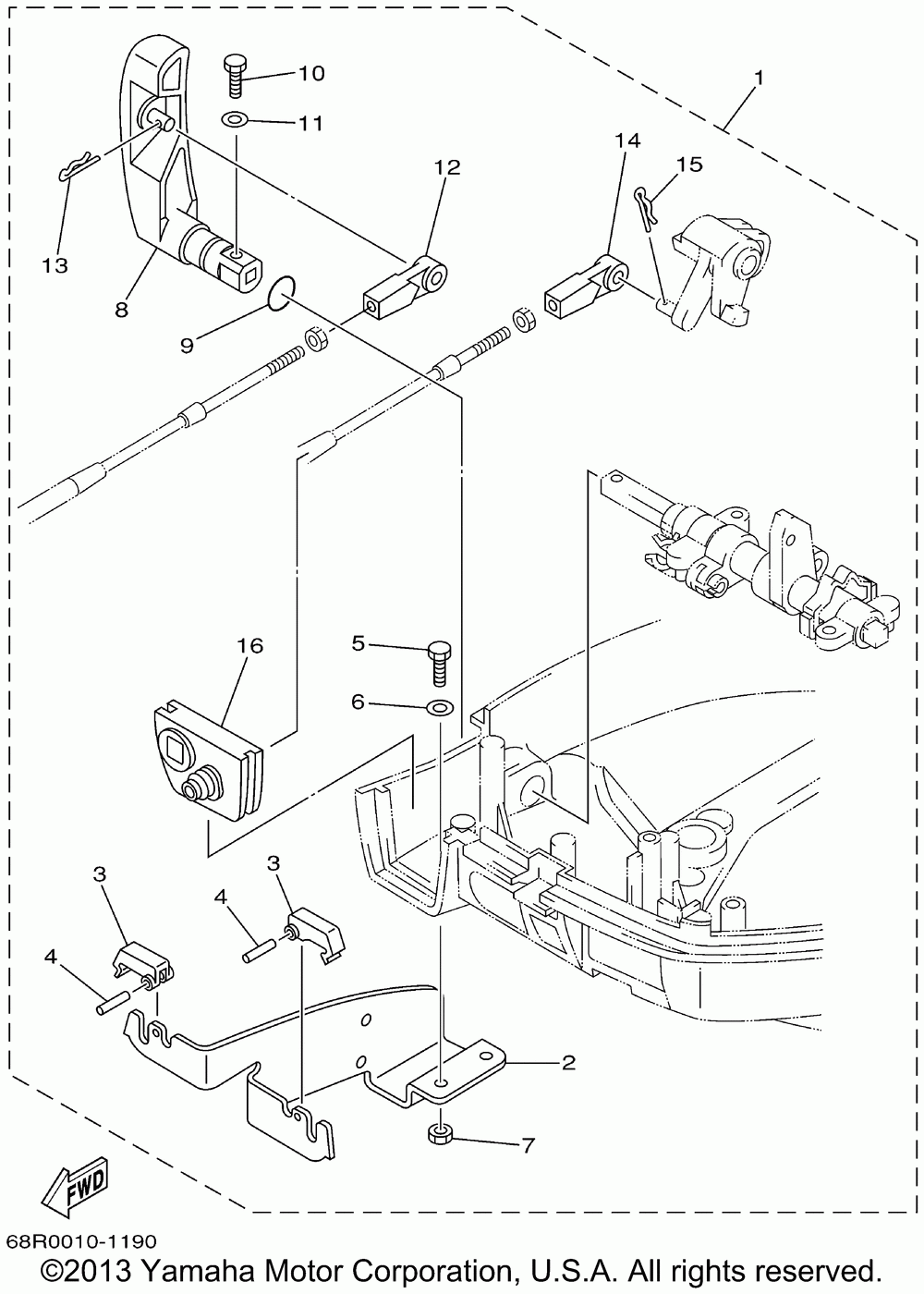

Remote control attachment
Remote control attachment

Remote control attachment

Yamaha T8PLRZ/T8PXRZ/T8PLHZ/T8PXHZ

Remote control attachment

#

oem код

название

цена

1

60R-G8501-00-00

Remote Cont. Attac Ap Ph(ph)

Remote Cont. Attac Ap Ph(ph)

2

68T-48531-00-00

Bracket, Remote Cont (ph)

Bracket, Remote Cont (ph)

3

682-48538-50-00

Clamp, Cable (ph)

Clamp, Cable (ph)

4

Pin, Spring (ph)

Pin, Spring (ph)

5

Bolt (ph)

Bolt (ph)

6

Washer (ph) (5 Per Pack)

Washer (ph) (5 Per Pack)

7

Nut (ph) (5 Per Pack)

Nut (ph) (5 Per Pack)

8

60R-G4111-10-00

Handle, Gear Shift (ph)

Handle, Gear Shift (ph)

9

O-ring (ph) (5 Per Pack)

O-ring (ph) (5 Per Pack)

10

Bolt (ph)

Bolt (ph)

11

Washer (ph) (5 Per Pack)

Washer (ph) (5 Per Pack)

12

663-48344-00-00

Cable End, Rem.cntl (ph)

Cable End, Rem.cntl (ph)

13

Clip (ph)

Clip (ph)

14

663-48344-00-00

Cable End, Rem.cntl (ph)

Cable End, Rem.cntl (ph)

15

Clip (ph)

Clip (ph)

16

68T-42725-10-00

Grommet (ph)

Grommet (ph)
