Коленчатый вал и Поршень Каталог оригинальных запчастей для лодочных моторов Yamaha V150TLRZ (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Yamaha
2001
V150TLRZ
Коленчатый вал и Поршень
Коленчатый вал и Поршень

Коленчатый вал и Поршень

Yamaha V150TLRZ

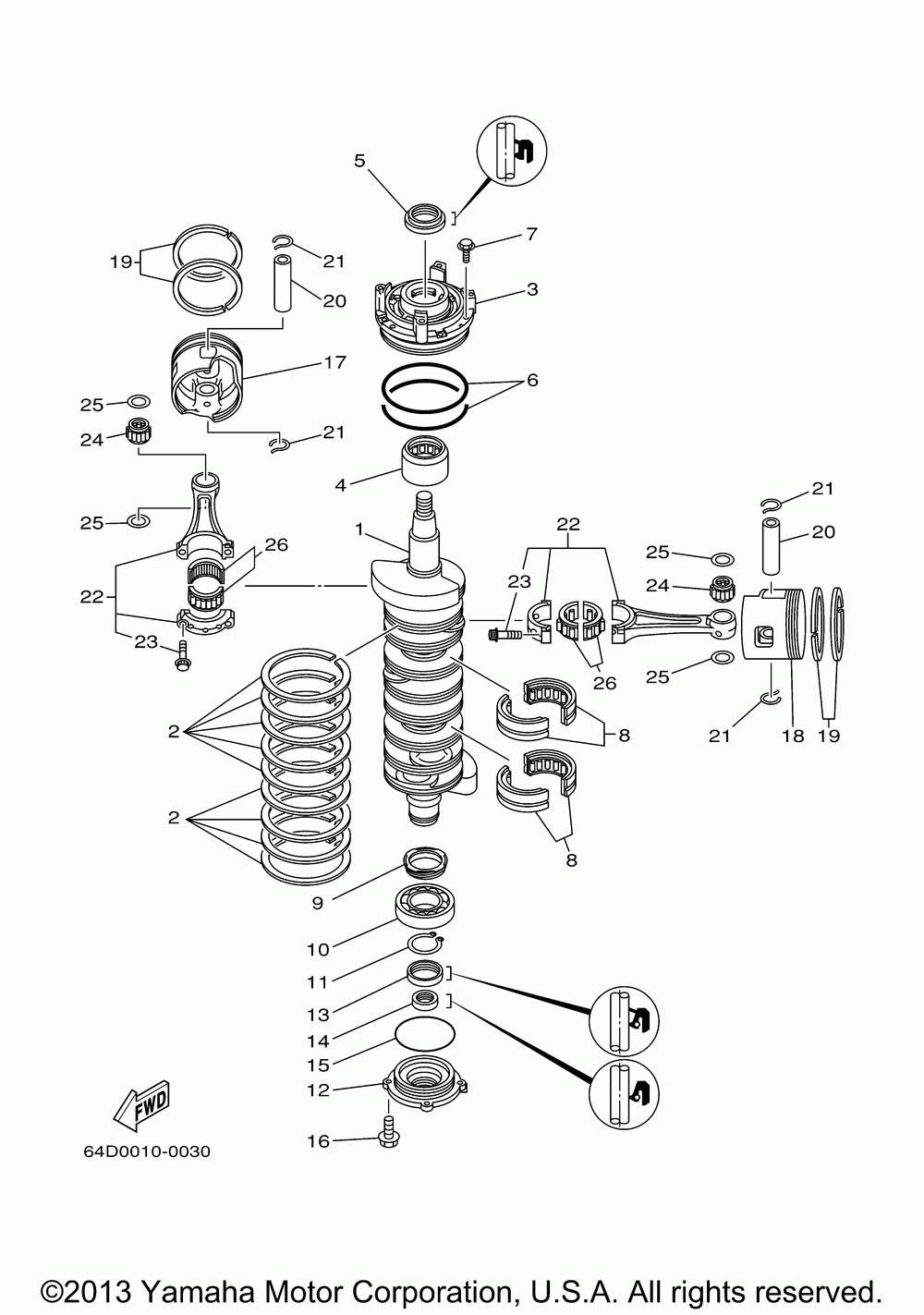

Коленчатый вал и Поршень

#

oem код

название

цена

1

6G5-11411-02-00

Crankshaft (64k0)

Crankshaft (64k0)

1

6G5-11411-02-00

Crankshaft (64k0)

Crankshaft (64k0)

2

6E5-11447-00-00

Seal, Crank (64k0)

Seal, Crank (64k0)

3

6R3-15163-00-1S

Housing, Bearing 1 (64k0)

Housing, Bearing 1 (64k0)

3

6R3-15163-00-1S

Housing, Bearing 1 (64k0)

Housing, Bearing 1 (64k0)

4

Bearing, Cyl.#11 (64k0)

Bearing, Cyl.#11 (64k0)

4

Bearing, Cyl.#11 (64k0)

Bearing, Cyl.#11 (64k0)

5

Oil Seal, Sd-type (64k0)

Oil Seal, Sd-type (64k0)

5

Oil Seal, Sd-type (64k0)

Oil Seal, Sd-type (64k0)

6

O-ring (64k0)

O-ring (64k0)

7

Bolt, With Washer (64k0)

Bolt, With Washer (64k0)

7

Bolt, With Washer (64k0)

Bolt, With Washer (64k0)

8

Bearing, Cyl. (64k0)

Bearing, Cyl. (64k0)

8

Bearing, Cyl. (64k0)

Bearing, Cyl. (64k0)

9

6R3-11536-00-00

Gear, Drive (64k0)

Gear, Drive (64k0)

9

6R3-11536-00-00

Gear, Drive (64k0)

Gear, Drive (64k0)

10

Bearing (64k0)

Bearing (64k0)

10

Bearing (64k0)

Bearing (64k0)

11

Circlip (64k0)

Circlip (64k0)

11

Circlip (64k0)

Circlip (64k0)

12

6G5-15359-00-94

Housing, Oil Seal (64k0)

Housing, Oil Seal (64k0)

12

6G5-15359-00-94

Housing, Oil Seal (64k0)

Housing, Oil Seal (64k0)

13

Oil Seal, Sd-type (64k0)

Oil Seal, Sd-type (64k0)

13

Oil Seal, Sd-type (64k0)

Oil Seal, Sd-type (64k0)

14

Oil Seal, S-type (64k0)

Oil Seal, S-type (64k0)

14

Oil Seal, S-type (64k0)

Oil Seal, S-type (64k0)

15

O-ring (64k0)

O-ring (64k0)

15

O-ring (64k0)

O-ring (64k0)

16

Bolt, With Washer (64k0)

Bolt, With Washer (64k0)

16

Bolt, With Washer (64k0)

Bolt, With Washer (64k0)

17

64D-11636-02-00

Piston (0.50mm O/s) (0.50mm O/s) Ap (64k0)

Piston (0.50mm O/s) (0.50mm O/s) Ap (64k0)

17

64D-11636-02-00

Piston (0.50mm O/s) (0.50mm O/s) Ap (64k0)

Piston (0.50mm O/s) (0.50mm O/s) Ap (64k0)

17

64D-11635-02-00

Piston (0.25mm O/s) (0.25mm O/s) Ap (64k0)

Piston (0.25mm O/s) (0.25mm O/s) Ap (64k0)

17

64D-11635-02-00

Piston (0.25mm O/s) (0.25mm O/s) Ap (64k0)

Piston (0.25mm O/s) (0.25mm O/s) Ap (64k0)

17

64D-11631-02-90

Piston (std) (std) (64k0)

Piston (std) (std) (64k0)

17

64D-11631-02-90

Piston (std) (std) (64k0)

Piston (std) (std) (64k0)

18

64D-11646-02-00

Piston 2 (0.50mm O/s (0.50mm O/s) Ap (64k0)

Piston 2 (0.50mm O/s (0.50mm O/s) Ap (64k0)

18

64D-11645-02-00

Piston 2 (0.25mm O/s (0.25mm O/s) Ap (64k0)

Piston 2 (0.25mm O/s (0.25mm O/s) Ap (64k0)

18

64D-11645-02-00

Piston 2 (0.25mm O/s (0.25mm O/s) Ap (64k0)

Piston 2 (0.25mm O/s (0.25mm O/s) Ap (64k0)

18

64D-11642-02-90

Piston 2 (std) (std) (64k0)

Piston 2 (std) (std) (64k0)

19

64D-11603-02-00

Piston Ring Set (std (std) (64k0)

Piston Ring Set (std (std) (64k0)

18

64D-11642-02-90

Piston 2 (std) (std) (64k0)

Piston 2 (std) (std) (64k0)

19

64D-11604-02-00

Piston Ring Set (0.2 (0.25mm O/s) Ap (64k0)

Piston Ring Set (0.2 (0.25mm O/s) Ap (64k0)

19

64D-11604-02-00

Piston Ring Set (0.2 (0.25mm O/s) Ap (64k0)

Piston Ring Set (0.2 (0.25mm O/s) Ap (64k0)

19

64D-11605-02-00

Piston Ring Set (0.5 (0.50mm O/s) Ap (64k0)

Piston Ring Set (0.5 (0.50mm O/s) Ap (64k0)

19

64D-11605-02-00

Piston Ring Set (0.5 (0.50mm O/s) Ap (64k0)

Piston Ring Set (0.5 (0.50mm O/s) Ap (64k0)

20

6R5-11633-10-00

Pin, Piston (64k0)

Pin, Piston (64k0)

20

6R5-11633-10-00

Pin, Piston (64k0)

Pin, Piston (64k0)

21

6R5-11634-10-00

Clip, Piston Pin (64k0)

Clip, Piston Pin (64k0)

21

6R5-11634-10-00

Clip, Piston Pin (64k0)

Clip, Piston Pin (64k0)

22

6R5-11650-10-00

Connecting Rod Asy (64k0)

Connecting Rod Asy (64k0)

22

6R5-11650-10-00

Connecting Rod Asy (64k0)

Connecting Rod Asy (64k0)

23

Bolt (64k0)

Bolt (64k0)

23

Bolt (64k0)

Bolt (64k0)

24

Bearing (64k0)

Bearing (64k0)

24

Bearing (64k0)

Bearing (64k0)

25

Washer, Plate (64k0) (5 Per Pack)

Washer, Plate (64k0) (5 Per Pack)

25

Washer, Plate (64k0) (5 Per Pack)

Washer, Plate (64k0) (5 Per Pack)

26

Bearing, Cyl.#10 (64k0)

Bearing, Cyl.#10 (64k0)

26

Bearing, Cyl.#10 (64k0)

Bearing, Cyl.#10 (64k0)
