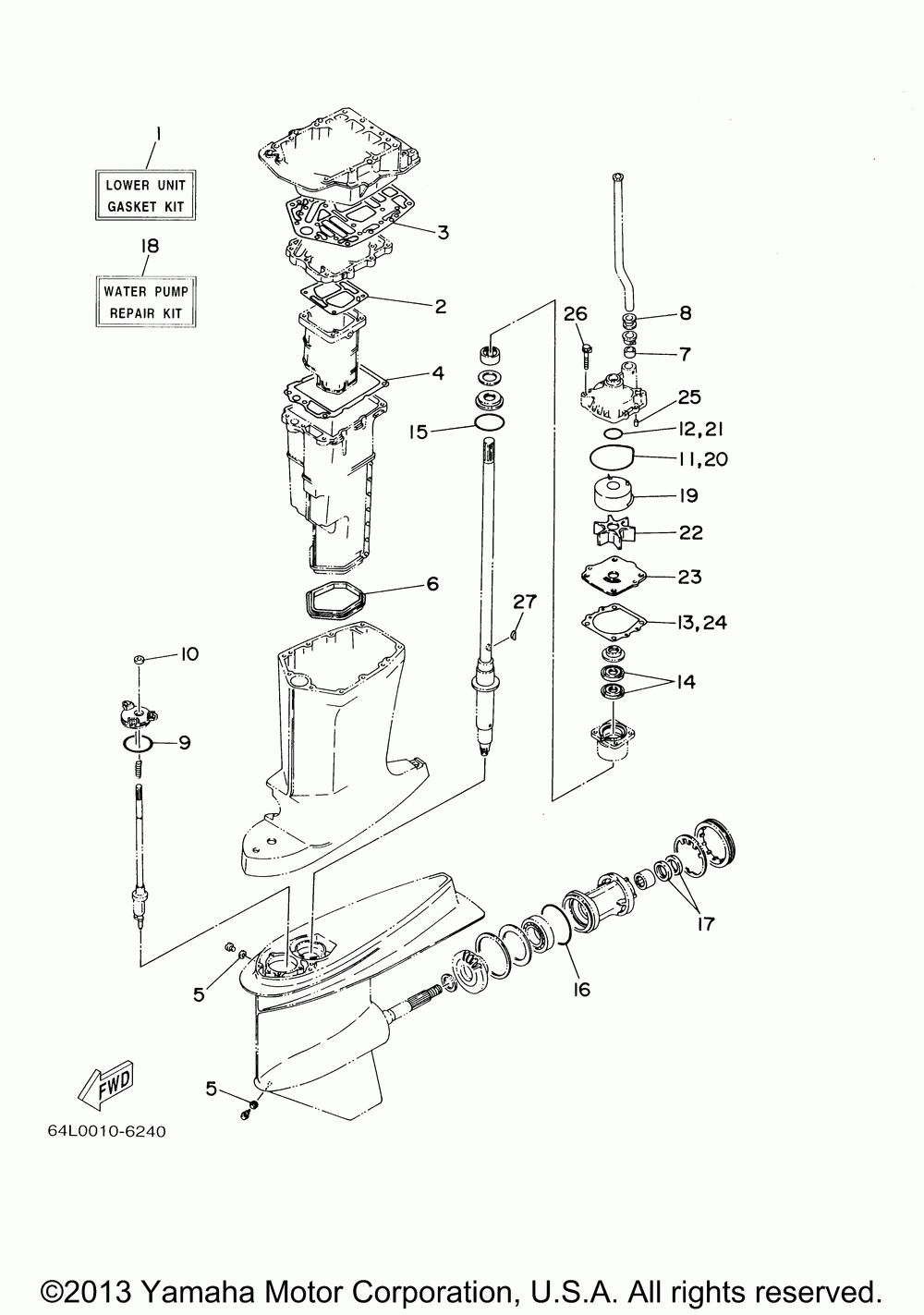

Ремонтные комплекты 2

Yamaha V150TLRZ
Yamaha
#oem кодцена
1
6G5-W0001-C1-00
Gasket Kit (64k0)
2
6G5-41134-A1-00
Gasket, Exhaust Mani (64k0)
3
6G5-45114-A1-00
Gasket, Upper Casing (64k0)
4
6E5-41135-A0-00
Gasket, Exh.mani.3 (64k0)
5
90430-08020-00
Gasket (64k0) (10 Per Pack)
6
6E5-45123-00-00
Gasket, Muffler (64k0)
7
6E5-44365-00-00
Water Seal (64k0)
8
6E5-44366-00-00
Water Seal (64k0)
10
93106-09014-00
Oil Seal, Dd-type (64k0)
11
93210-86M38-00
O-ring (64k0)
12
93210-37M67-00
O-ring (64k0) (5 Per Pack)
13
6E5-44315-A0-00
Gasket, Water Pump (64k0)
14
93101-28M16-00
Oil Seal, S-type (64k0)
15
93210-54534-00
O-ring (64k0)
16
93210-97M55-00
O-ring (64k0)
17
93101-30M17-00
Oil Seal, S-type (64k0)
18
61A-W0078-A3-00
Water Pump Repair (64k0)
19
61A-44322-02-00
Insert, Cartridge (64k0)
20
93210-86M38-00
O-ring (64k0)
21
93210-37M67-00
O-ring (64k0) (5 Per Pack)
22
6E5-44352-01-00
Impeller (64k0)
23
6G5-44323-01-00
Outer Plate, Cartrid (64k0)
24
6E5-44315-A0-00
Gasket, Water Pump (64k0)
25
93606-12019-00
Pin, Dowel (64k0) (5 Per Pack)
26
90119-08M14-00
Bolt, With Washer (64k0)
27
90280-04M05-00
Key, Woodruff (64k0)
