Генератор
Генератор

Генератор

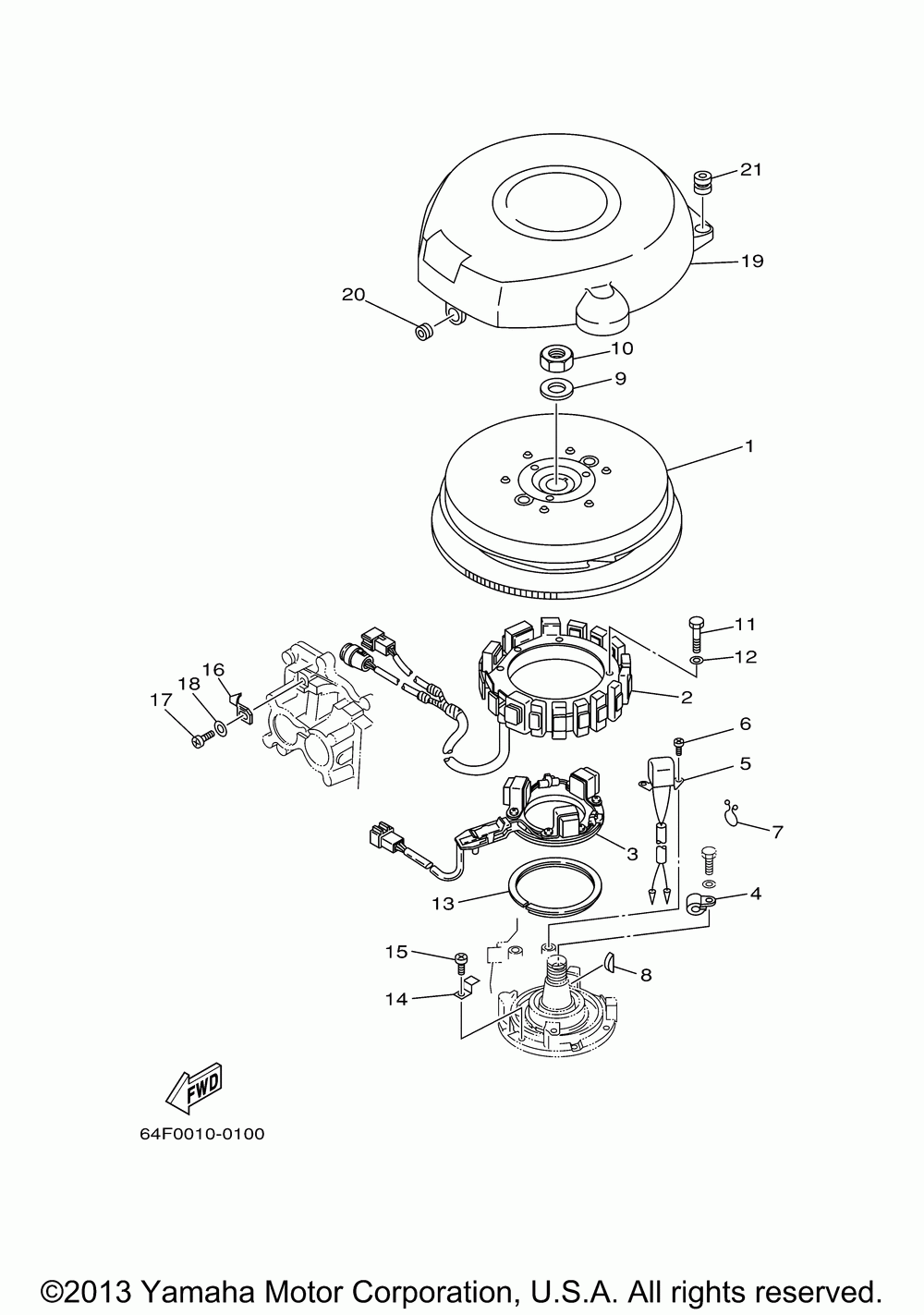

Yamaha V150TLRZ

Генератор

#

oem код

название

цена

1

64D-85550-02-00

Rotor Assy (64k0)

Rotor Assy (64k0)

2

6R3-85510-00-00

Stator Asy (64k0)

Stator Asy (64k0)

3

64D-85580-00-00

Coil, Pulser (64k0)

Coil, Pulser (64k0)

4

Clamp (64k0)

Clamp (64k0)

5

6R5-85895-01-00

Crank Position Sen (64k0)

Crank Position Sen (64k0)

6

Screw, Pan Head (64k0)

Screw, Pan Head (64k0)

7

Clamp (64k0)

Clamp (64k0)

8

Key, Woodruff (64k0)

Key, Woodruff (64k0)

9

Washer, Plate (64k0)

Washer, Plate (64k0)

10

Nut, Hexagon (64k0)

Nut, Hexagon (64k0)

11

Bolt (661) (64k0)

Bolt (661) (64k0)

12

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

13

688-41611-00-00

Retainer, Mag.base (64k0)

Retainer, Mag.base (64k0)

14

688-41612-00-00

Retainer, Mag.base (64k0)

Retainer, Mag.base (64k0)

15

Screw, Pan Head (64k0)

Screw, Pan Head (64k0)

16

6E5-81332-00-00

Plate, Timing (64k0)

Plate, Timing (64k0)

17

Screw, Pan Head W/w (64k0) (5 Per Pack)

Screw, Pan Head W/w (64k0) (5 Per Pack)

18

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

19

64D-81337-01-00

Cover, Flywheel (64k0)

Cover, Flywheel (64k0)

20

Grommet (64k0)

Grommet (64k0)

21

663-82317-01-00

Damper, Ign Coil (64k0)

Damper, Ign Coil (64k0)
