Дейвуд Каталог оригинальных запчастей для лодочных моторов Yamaha V150TLRZ (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Дейвуд

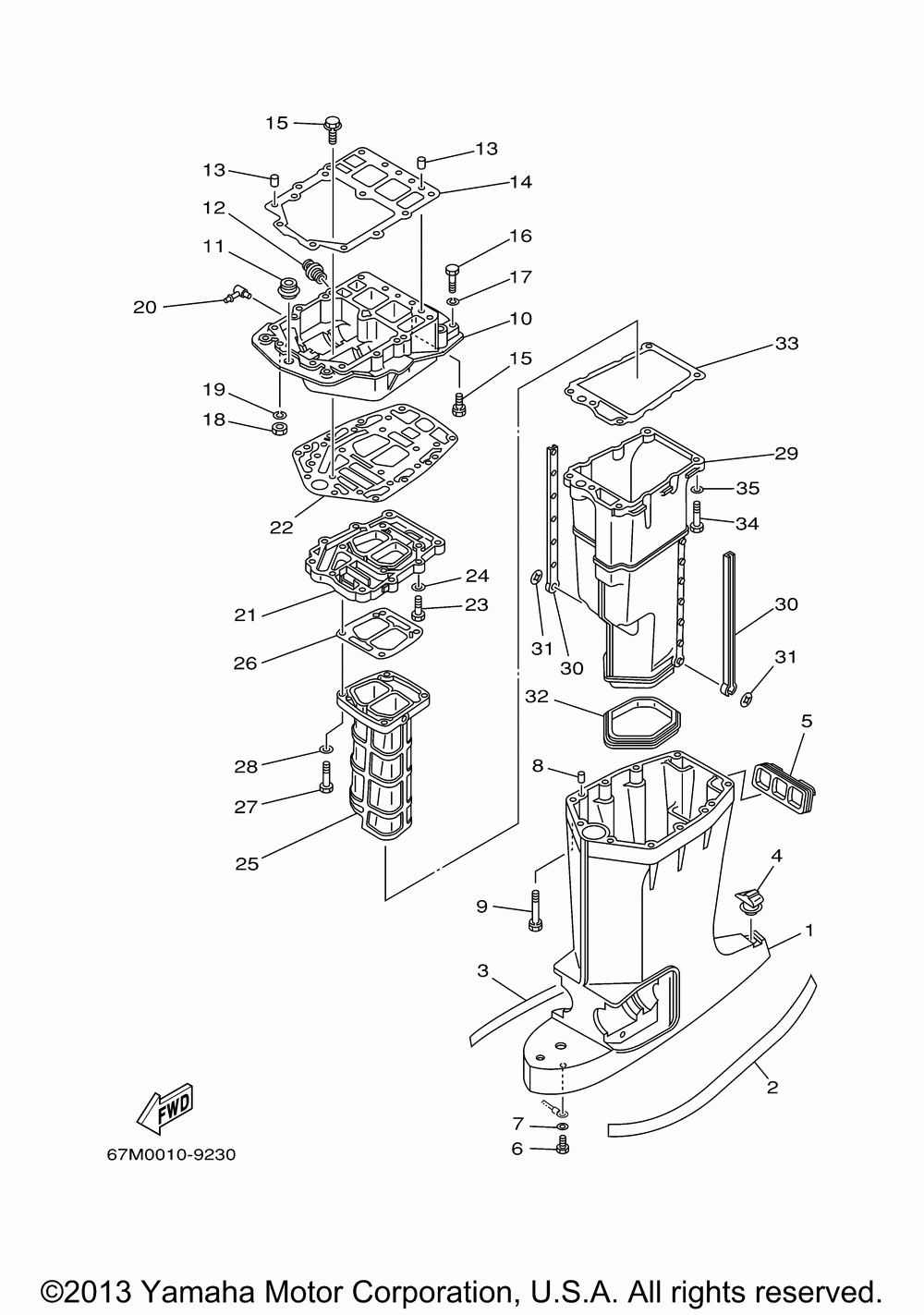

Yamaha V150TLRZ

Дейвуд

#

oem код

название

цена

1

6E5-45111-02-8D

Casing, Upper L (64k0)

Casing, Upper L (64k0)

1

6E5-45111-02-8D

Casing, Upper L (64k0)

Casing, Upper L (64k0)

2

6N9-42791-40-00

Mark (64k0)

Mark (64k0)

2

6N9-42791-40-00

Mark (64k0)

Mark (64k0)

3

6N9-42792-40-00

Mark 2 (64k0)

Mark 2 (64k0)

3

6N9-42792-40-00

Mark 2 (64k0)

Mark 2 (64k0)

4

6E5-45155-00-00

Cap (64k0)

Cap (64k0)

5

6E5-42769-00-00

Seal, Rubber (64k0)

Seal, Rubber (64k0)

5

6E5-42769-00-00

Seal, Rubber (64k0)

Seal, Rubber (64k0)

6

Bolt (64k0)

Bolt (64k0)

6

Bolt (64k0)

Bolt (64k0)

7

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

7

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

8

Pin, Dowel (64k0) (5 Per Pack)

Pin, Dowel (64k0) (5 Per Pack)

8

Pin, Dowel (64k0) (5 Per Pack)

Pin, Dowel (64k0) (5 Per Pack)

9

Bolt, With Washer (64k0)

Bolt, With Washer (64k0)

9

Bolt, With Washer (64k0)

Bolt, With Washer (64k0)

10

6G5-41137-11-CA

Guide, Exhaust Flushing Kit (64k0)

Guide, Exhaust Flushing Kit (64k0)

10

6G5-41137-11-CA

Guide, Exhaust Flushing Kit (64k0)

Guide, Exhaust Flushing Kit (64k0)

11

6E5-42724-00-00

Grommet 1 (64k0)

Grommet 1 (64k0)

11

6E5-42724-00-00

Grommet 1 (64k0)

Grommet 1 (64k0)

12

6G5-12581-00-00

Joint, Hose 1 (64k0)

Joint, Hose 1 (64k0)

12

6G5-12581-00-00

Joint, Hose 1 (64k0)

Joint, Hose 1 (64k0)

13

Pin, Dowel (64k0) (5 Per Pack)

Pin, Dowel (64k0) (5 Per Pack)

13

Pin, Dowel (64k0) (5 Per Pack)

Pin, Dowel (64k0) (5 Per Pack)

14

6G5-45113-A2-00

Gasket, Upper Casing (64k0)

Gasket, Upper Casing (64k0)

14

6G5-45113-A2-00

Gasket, Upper Casing (64k0)

Gasket, Upper Casing (64k0)

15

Bolt (64k0)

Bolt (64k0)

15

Bolt (64k0)

Bolt (64k0)

16

Bolt, Hexagon (64k0)

Bolt, Hexagon (64k0)

16

Bolt, Hexagon (64k0)

Bolt, Hexagon (64k0)

17

Washer, Spring (64k0)

Washer, Spring (64k0)

17

Washer, Spring (64k0)

Washer, Spring (64k0)

18

Nut (64k0)

Nut (64k0)

18

Nut (64k0)

Nut (64k0)

19

Washer, Spring (64k0)

Washer, Spring (64k0)

19

Washer, Spring (64k0)

Washer, Spring (64k0)

20

6H1-11372-00-00

Nipple, Hose Flushing Kit (64k0)

Nipple, Hose Flushing Kit (64k0)

20

6H1-11372-00-00

Nipple, Hose Flushing Kit (64k0)

Nipple, Hose Flushing Kit (64k0)

21

6G5-41131-01-CA

Manifold, Ext. 1 (64k0)

Manifold, Ext. 1 (64k0)

21

6G5-41131-01-CA

Manifold, Ext. 1 (64k0)

Manifold, Ext. 1 (64k0)

22

6G5-45114-A1-00

Gasket, Upper Casing (64k0)

Gasket, Upper Casing (64k0)

22

6G5-45114-A1-00

Gasket, Upper Casing (64k0)

Gasket, Upper Casing (64k0)

23

Bolt (64k0)

Bolt (64k0)

23

Bolt (64k0)

Bolt (64k0)

24

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

24

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

25

64D-41132-00-CA

Manifold, Exhaust (64k0)

Manifold, Exhaust (64k0)

25

64D-41132-00-CA

Manifold, Exhaust (64k0)

Manifold, Exhaust (64k0)

26

6G5-41134-A1-00

Gasket, Exhaust Mani (64k0)

Gasket, Exhaust Mani (64k0)

26

6G5-41134-A1-00

Gasket, Exhaust Mani (64k0)

Gasket, Exhaust Mani (64k0)

27

Bolt, Hexagon (64k0)

Bolt, Hexagon (64k0)

27

Bolt, Hexagon (64k0)

Bolt, Hexagon (64k0)

28

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

28

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

29

6E5-14711-01-CA

Muffler 1 (64k0)

Muffler 1 (64k0)

29

6E5-14711-01-CA

Muffler 1 (64k0)

Muffler 1 (64k0)

30

6E5-14737-00-00

Damper, Muffler (64k0)

Damper, Muffler (64k0)

30

6E5-14737-00-00

Damper, Muffler (64k0)

Damper, Muffler (64k0)

31

Nut, Spring (64k0) (5 Per Pack)

Nut, Spring (64k0) (5 Per Pack)

31

Nut, Spring (64k0) (5 Per Pack)

Nut, Spring (64k0) (5 Per Pack)

32

6E5-45123-00-00

Gasket, Muffler (64k0)

Gasket, Muffler (64k0)

32

6E5-45123-00-00

Gasket, Muffler (64k0)

Gasket, Muffler (64k0)

33

6E5-41135-A0-00

Gasket, Exh.mani.3 (64k0)

Gasket, Exh.mani.3 (64k0)

33

6E5-41135-A0-00

Gasket, Exh.mani.3 (64k0)

Gasket, Exh.mani.3 (64k0)

34

Bolt, Hexagon (64k0)

Bolt, Hexagon (64k0)

34

Bolt, Hexagon (64k0)

Bolt, Hexagon (64k0)

35

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)

35

Washer (64k0) (5 Per Pack)

Washer (64k0) (5 Per Pack)
