Кронштейн 1 Каталог оригинальных запчастей для лодочных моторов Yamaha VX150TLRZ (2001)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Yamaha
2001
VX150TLRZ

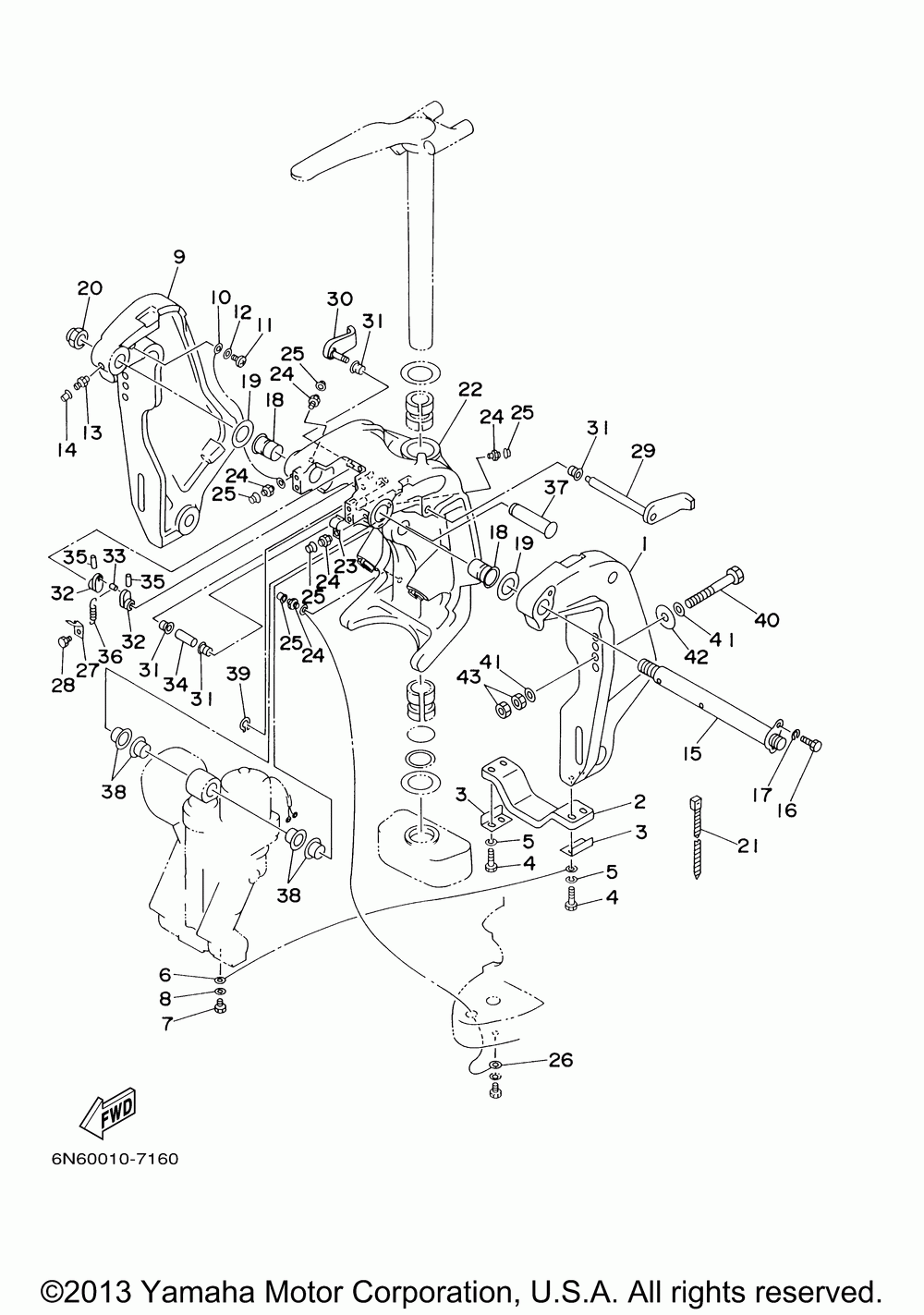

Кронштейн 1
Кронштейн 1

Кронштейн 1

Yamaha VX150TLRZ

Кронштейн 1

#

oem код

название

цена

1

64E-43111-02-8D

Bracket, Clamp (67m0)

Bracket, Clamp (67m0)

2

6G5-45251-02-00

Anode (67m0)

Anode (67m0)

3

6G5-44526-00-00

Plate (67m0)

Plate (67m0)

4

Bolt (67m0)

Bolt (67m0)

5

Washer (67m0) (5 Per Pack)

Washer (67m0) (5 Per Pack)

6

6E5-82148-00-00

Wire, Lead 4 (67m0)

Wire, Lead 4 (67m0)

7

Bolt (67m0)

Bolt (67m0)

8

Washer (67m0) (5 Per Pack)

Washer (67m0) (5 Per Pack)

9

64E-43112-02-8D

Bracket, Clamp (67m0)

Bracket, Clamp (67m0)

10

6E5-82148-00-00

Wire, Lead 4 (67m0)

Wire, Lead 4 (67m0)

11

Screw, Pan Head (67m0)

Screw, Pan Head (67m0)

12

Washer (67m0) (5 Per Pack)

Washer (67m0) (5 Per Pack)

13

Nipple, Grease (67m0)

Nipple, Grease (67m0)

14

663-45119-00-00

Cap, Grease Nipple Ap (67m0)

Cap, Grease Nipple Ap (67m0)

15

64E-43131-01-00

Bolt, Clamp Bracket (67m0)

Bolt, Clamp Bracket (67m0)

16

Bolt (67m0)

Bolt (67m0)

17

Washer, Spring (67m0)

Washer, Spring (67m0)

18

Bush, Spec'l Nylon (67m0)

Bush, Spec'l Nylon (67m0)

19

Washer, Plate (67m0)

Washer, Plate (67m0)

20

Nut, Self-locking (67m0)

Nut, Self-locking (67m0)

21

Clamp (67m0)

Clamp (67m0)

22

64E-43311-10-8D

Bracket, Swivel 1 L (67m0)

Bracket, Swivel 1 L (67m0)

23

Clamp (67m0)

Clamp (67m0)

24

Nipple, Grease (67m0)

Nipple, Grease (67m0)

25

663-45119-00-00

Cap, Grease Nipple Ap (67m0)

Cap, Grease Nipple Ap (67m0)

26

6E5-82147-00-00

Wire, Lead 4 L (67m0)

Wire, Lead 4 L (67m0)

27

6G5-43144-00-00

Hook, Spring (67m0)

Hook, Spring (67m0)

28

Bolt (67m0)

Bolt (67m0)

29

6G5-43181-02-00

Lever, Tilt Stop (67m0)

Lever, Tilt Stop (67m0)

30

6G5-43185-02-00

Lever, Tilt Stop 2 (67m0)

Lever, Tilt Stop 2 (67m0)

31

Bush, Spec'l Nylon (67m0) (5 Per Pack)

Bush, Spec'l Nylon (67m0) (5 Per Pack)

32

6G5-43148-00-00

Collar, Distance (67m0)

Collar, Distance (67m0)

33

Pin, Spec'l Shape (67m0)

Pin, Spec'l Shape (67m0)

34

Collar (67m0)

Collar (67m0)

35

Pin, Spring (67m0)

Pin, Spring (67m0)

36

Spring, Tension (67m0)

Spring, Tension (67m0)

37

64E-43126-00-00

Pin, Upper Shock Mt (67m0)

Pin, Upper Shock Mt (67m0)

38

Bush, Spec'l Nylon (67m0)

Bush, Spec'l Nylon (67m0)

39

Circlip, S-type (67m0)

Circlip, S-type (67m0)

40

Bolt (l:130mm) (l:130mm) (67m0)

Bolt (l:130mm) (l:130mm) (67m0)

41

Washer, Plate (67m0)

Washer, Plate (67m0)

42

Washer, Plate (67m0)

Washer, Plate (67m0)

43

Nut (67m0)

Nut (67m0)
