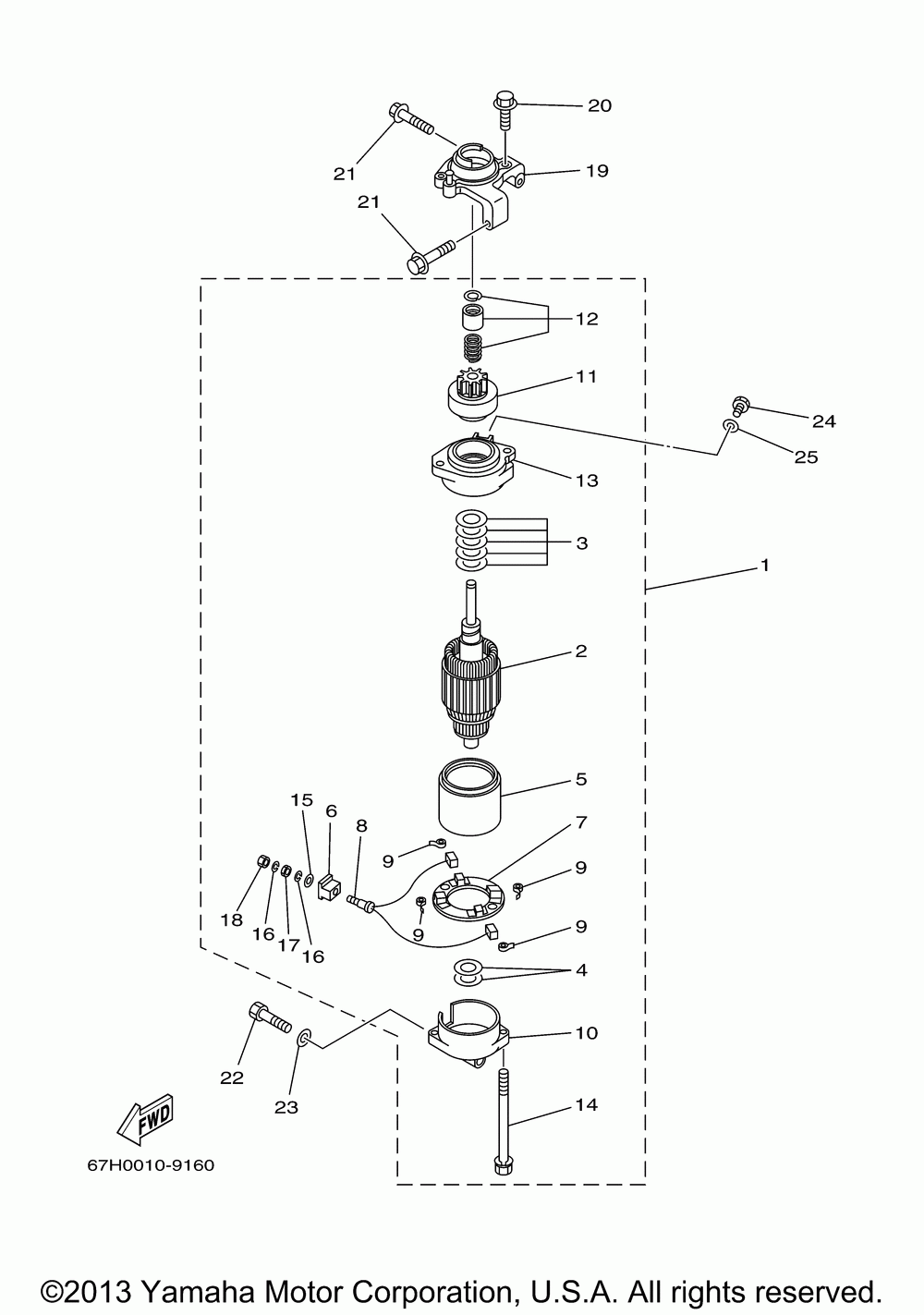

ПУСКОВОЙ ЭЛЕКТРОДВИГАТЕЛЬ

Yamaha VX150TLRZ
Yamaha
#oem кодцена
1
6N7-81800-10-00
Starting Motor Assy (67m0)
2
6N7-81850-10-00
Armature Assy (67m0)
3
61A-81809-00-00
Washer Kit (67m0)
4
61A-81824-00-00
Washer 2 (67m0)
5
6N7-81810-00-00
Stator Asy (67m0)
6
6K7-8182G-10-00
Bush, Terminal (67m0)
7
6N7-81840-00-00
Brush Holder Asy (67m0)
8
6N7-81801-00-00
Brush Set (67m0)
9
6N7-81813-00-00
Spring, Brush (67m0)
10
6N7-81820-10-00
Rear Bracket Assy (67m0)
11
6N7-81807-00-00
Gear Assy, Startin (67m0)
12
6N7-81857-00-00
Retainer (67m0)
13
6N7-81830-00-00
Fornt Bracket Asy (67m0)
14
6K7-81826-11-00
Bolt (67m0)
15
6E5-8182E-10-00
Washer, Plain (67m0)
16
6E5-8182F-10-00
Washer, Plain (67m0)
17
6E5-8182A-10-00
Nut (67m0)
18
6E5-8182K-10-00
Nut (67m0)
19
67H-81822-00-94
Bracket, Starting (67m0)
20
90119-08M76-00
Bolt, With Washer (67m0)
21
90119-08M77-00
Bolt, With Washer (67m0)
22
90119-08M57-00
Bolt, With Washer (67m0)
23
92990-08600-00
Washer (67m0) (5 Per Pack)
24
97095-08016-00
Bolt (67m0)
25
92990-08600-00
Washer (67m0) (5 Per Pack)
