Дейвуд

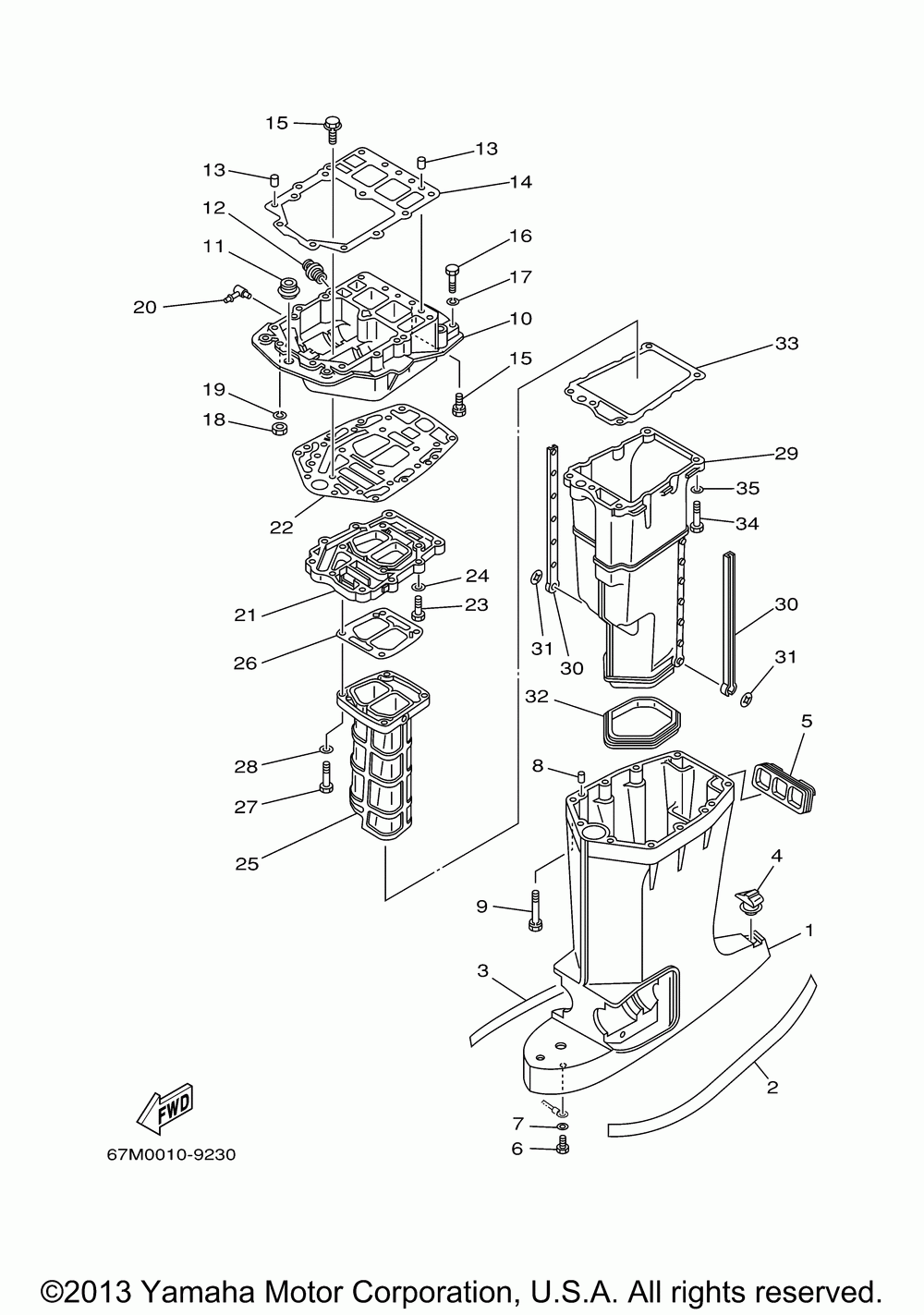

Yamaha VX150TLRZ
Yamaha
#oem кодцена
1
6E5-45111-02-8D
Casing, Upper L (67m0)
2
6N9-42791-40-00
Mark (67m0)
2
6N9-42791-40-00
Mark (67m0)
3
6N9-42792-40-00
Mark 2 (67m0)
3
6N9-42792-40-00
Mark 2 (67m0)
4
6E5-45155-00-00
Cap (67m0)
4
6E5-45155-00-00
Cap (67m0)
5
6E5-42769-00-00
Seal, Rubber (67m0)
5
6E5-42769-00-00
Seal, Rubber (67m0)
6
97085-06010-00
Bolt (67m0)
6
97085-06010-00
Bolt (67m0)
7
92990-06600-00
Washer (67m0) (5 Per Pack)
7
92990-06600-00
Washer (67m0) (5 Per Pack)
8
93608-12M05-00
Pin, Dowel (67m0) (5 Per Pack)
8
93608-12M05-00
Pin, Dowel (67m0) (5 Per Pack)
9
90119-08M78-00
Bolt, With Washer (67m0)
9
90119-08M78-00
Bolt, With Washer (67m0)
10
6G5-41137-11-CA
Guide, Exhaust Flushing Kit (67m0)
10
6G5-41137-11-CA
Guide, Exhaust Flushing Kit (67m0)
11
6E5-42724-00-00
Grommet 1 (67m0)
11
6E5-42724-00-00
Grommet 1 (67m0)
12
6G5-12581-00-00
Joint, Hose 1 (67m0)
12
6G5-12581-00-00
Joint, Hose 1 (67m0)
13
93608-12M05-00
Pin, Dowel (67m0) (5 Per Pack)
13
93608-12M05-00
Pin, Dowel (67m0) (5 Per Pack)
14
6G5-45113-A2-00
Gasket, Upper Casing (67m0)
14
6G5-45113-A2-00
Gasket, Upper Casing (67m0)
15
97080-08030-00
Bolt (67m0)
15
97080-08030-00
Bolt (67m0)
16
97095-08045-00
Bolt, Hexagon (67m0)
16
97095-08045-00
Bolt, Hexagon (67m0)
17
92990-08100-00
Washer, Spring (67m0)
17
92990-08100-00
Washer, Spring (67m0)
18
95380-08700-00
Nut (67m0)
18
95380-08700-00
Nut (67m0)
19
92990-08100-00
Washer, Spring (67m0)
19
92990-08100-00
Washer, Spring (67m0)
20
6H1-11372-00-00
Nipple, Hose Flushing Kit (67m0)
20
6H1-11372-00-00
Nipple, Hose Flushing Kit (67m0)
21
6G5-41131-01-CA
Manifold, Ext. 1 (67m0)
21
6G5-41131-01-CA
Manifold, Ext. 1 (67m0)
22
6G5-45114-A1-00
Gasket, Upper Casing (67m0)
22
6G5-45114-A1-00
Gasket, Upper Casing (67m0)
23
97080-08030-00
Bolt (67m0)
23
97080-08030-00
Bolt (67m0)
24
92990-08600-00
Washer (67m0) (5 Per Pack)
25
64D-41132-00-CA
Manifold, Exhaust (67m0)
25
64D-41132-00-CA
Manifold, Exhaust (67m0)
26
6G5-41134-A1-00
Gasket, Exhaust Mani (67m0)
26
6G5-41134-A1-00
Gasket, Exhaust Mani (67m0)
27
97095-08045-00
Bolt, Hexagon (67m0)
27
97095-08045-00
Bolt, Hexagon (67m0)
28
92990-08600-00
Washer (67m0) (5 Per Pack)
28
92990-08600-00
Washer (67m0) (5 Per Pack)
29
6E5-14711-01-CA
Muffler 1 (67m0)
29
6E5-14711-01-CA
Muffler 1 (67m0)
30
6E5-14737-00-00
Damper, Muffler (67m0)
30
6E5-14737-00-00
Damper, Muffler (67m0)
31
90183-05M02-00
Nut, Spring (67m0) (5 Per Pack)
31
90183-05M02-00
Nut, Spring (67m0) (5 Per Pack)
32
6E5-45123-00-00
Gasket, Muffler (67m0)
32
6E5-45123-00-00
Gasket, Muffler (67m0)
33
6E5-41135-A0-00
Gasket, Exh.mani.3 (67m0)
33
6E5-41135-A0-00
Gasket, Exh.mani.3 (67m0)
34
97095-08045-00
Bolt, Hexagon (67m0)
34
97095-08045-00
Bolt, Hexagon (67m0)
35
92990-08600-00
Washer (67m0) (5 Per Pack)
35
92990-08600-00
Washer (67m0) (5 Per Pack)
