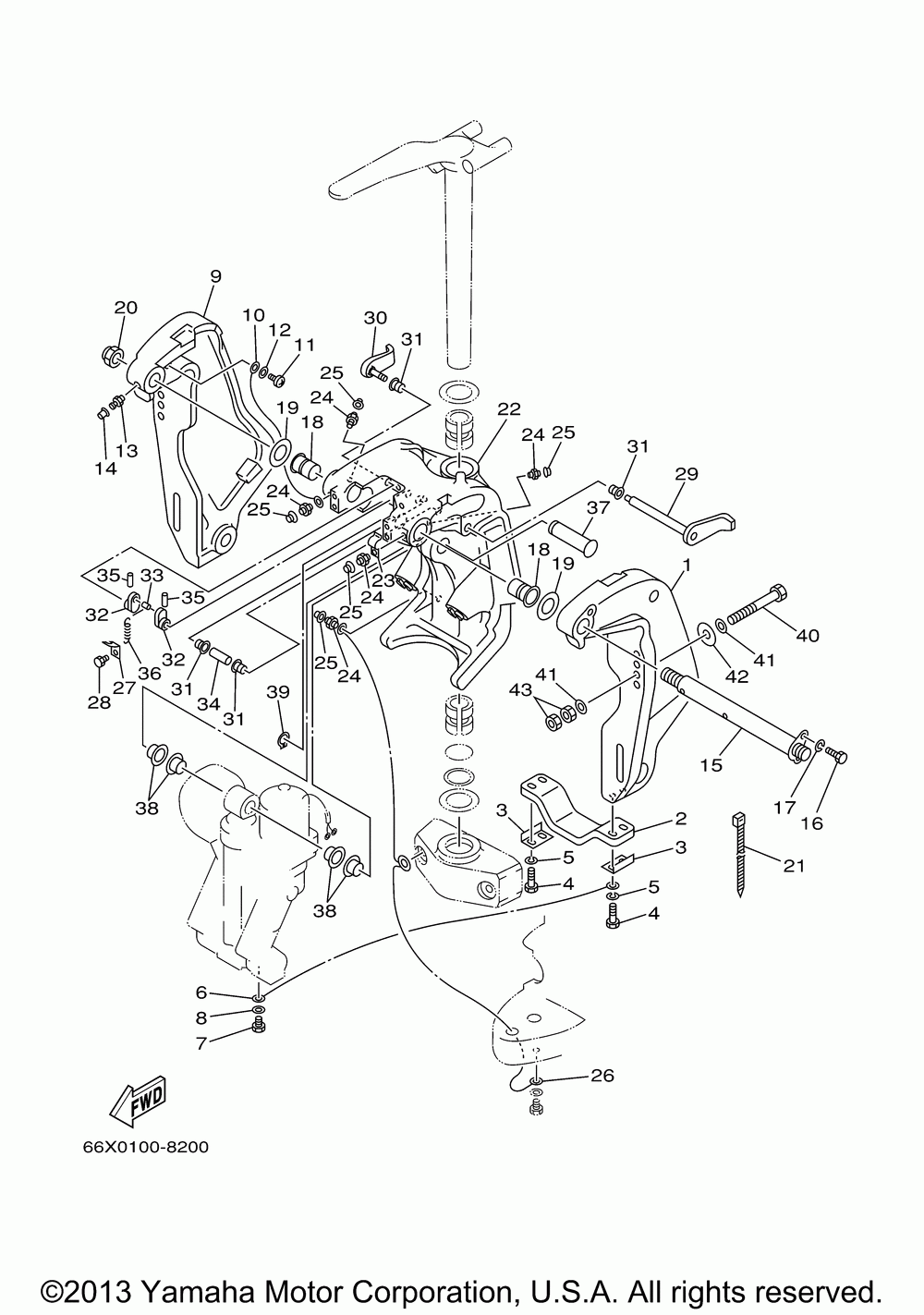

Кронштейн 1

Yamaha VX200TLRZ/VX225TLRZ
Yamaha
#oem кодцена
1
64E-43111-02-8D
Bracket, Clamp (vx)
2
6G5-45251-02-00
Anode (vx)
3
6G5-44526-00-00
Plate (vx)
4
97080-06030-00
Bolt (vx)
5
92995-06100-00
Washer (vx) (5 Per Pack)
6
6E5-82148-00-00
Wire, Lead 4 (vx)
7
97085-06010-00
Bolt (vx)
8
92990-06600-00
Washer (vx) (5 Per Pack)
9
64E-43112-02-8D
Bracket, Clamp (vx)
10
6E5-82148-00-00
Wire, Lead 4 (vx)
11
97885-06012-00
Screw, Pan Head (vx)
12
92990-06600-00
Washer (vx) (5 Per Pack)
13
93700-06M03-00
Nipple, Grease (vx)
14
663-45119-00-00
Cap, Grease Nipple Ap (vx)
15
64E-43131-01-00
Bolt, Clamp Bracket (vx)
16
97095-08020-00
Bolt (vx)
17
92990-08100-00
Washer, Spring (vx)
18
90386-25M31-00
Bush, Spec'l Nylon (vx)
19
90201-26M59-00
Washer, Plate (vx)
20
90185-22007-00
Nut, Self-locking (vx)
21
90465-10098-00
Clamp (vx)
22
64E-43311-10-8D
Bracket, Swivel 1 (vx)
23
90465-08M63-00
Clamp (vx)
24
93700-06M03-00
Nipple, Grease (vx)
25
663-45119-00-00
Cap, Grease Nipple Ap (vx)
26
66K-82149-00-00
Wire, Lead 3 (vx)
27
6G5-43144-00-00
Hook, Spring (vx)
28
97085-06010-00
Bolt (vx)
29
6G5-43181-02-00
Lever, Tilt Stop (vx)
30
6G5-43185-02-00
Lever, Tilt Stop 2 (vx)
31
90386-10M16-00
Bush, Spec'l Nylon (vx) (5 Per Pack)
32
6G5-43148-00-00
Collar, Distance (vx)
33
90249-06M19-00
Pin, Spec'l Shape (vx)
34
90387-10M05-00
Collar (vx)
35
91690-30020-00
Pin, Spring (vx)
36
90506-14M24-00
Spring, Tension (vx)
37
64E-43126-00-00
Pin, Upper Shock Mt (vx)
38
90386-22M98-00
Bush, Spec'l Nylon (vx)
39
93410-22M11-00
Circlip, S-type (vx)
40
90101-12M05-00
Bolt (l:130mm) (l:130mm) (vx)
41
90201-13M01-00
Washer, Plate (vx)
42
90201-12426-00
Washer, Plate (vx)
43
95380-12600-00
Nut (vx)
