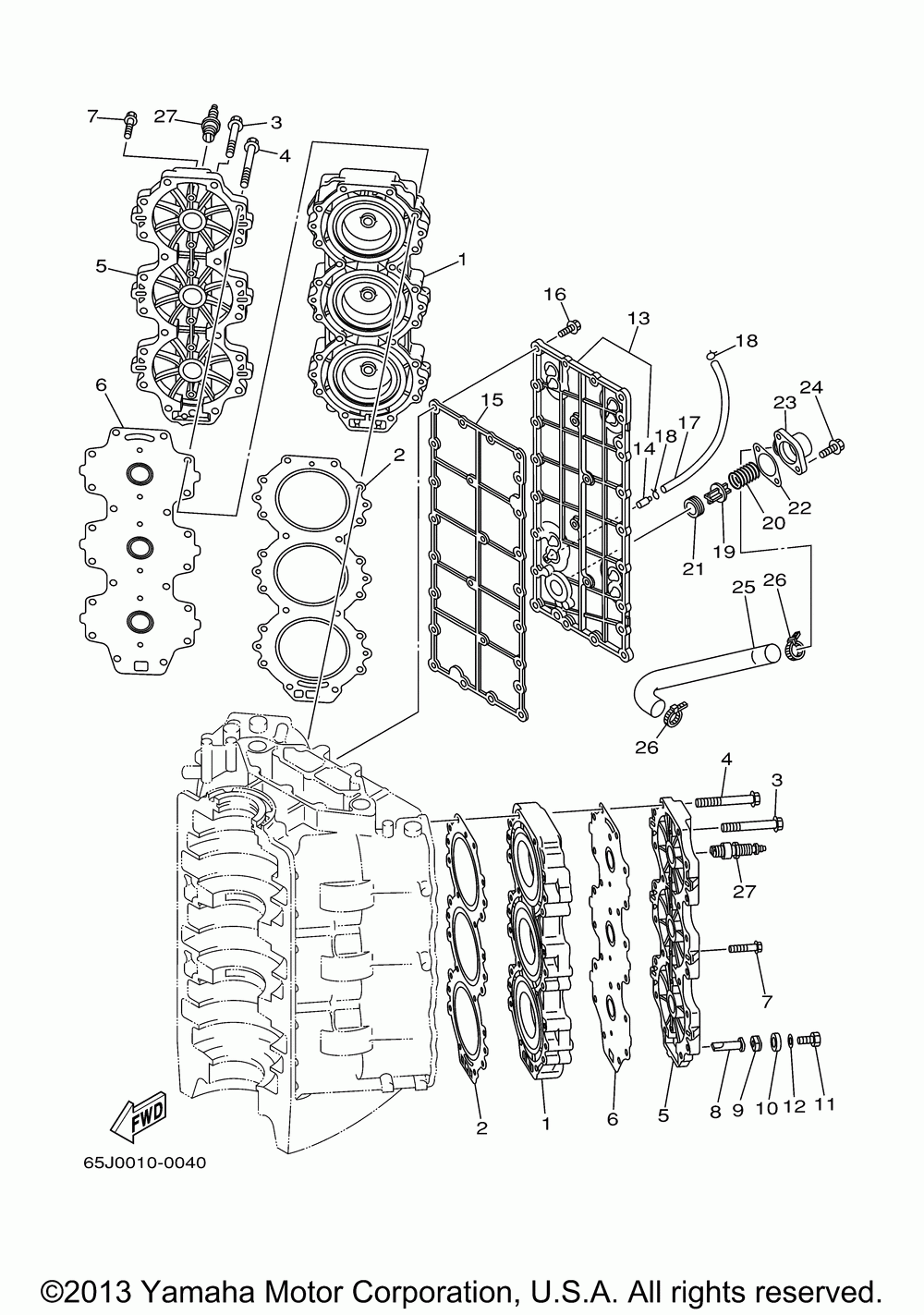

Цилиндр и картер 2

Yamaha VX200TLRZ/VX225TLRZ
Yamaha
#oem кодцена
1
66X-11111-00-1S
Head, Cylinder 1 Ur Vx200 (vx)
1
62J-11111-01-1S
Head, Cylinder 1 Ur Vx225 (vx)
2
69L-11181-01-00
Gasket, Cylinder Hea (vx)
3
90119-08MA5-00
Bolt, With Washer (vx)
4
90119-08M99-00
Bolt, W/washer (vx)
5
61A-11191-00-1S
Cover, Cylinder He (vx)
6
61A-11193-A2-00
Gasket, Head Cover 1 (vx)
7
90119-06MA5-00
Bolt, With Washer (vx)
8
6J8-11325-00-00
Anode (vx)
9
6H3-11328-00-00
Anode Grommet (vx)
10
6H3-11327-00-94
Anode Cover (vx)
11
97095-06016-00
Bolt (ga1) (vx) (5 Per Pack)
12
92990-06600-00
Washer (vx) (5 Per Pack)
13
61A-41113-00-1S
Outer Cover, Exhau (vx)
14
652-24461-00-00
Pipe, Joint (vx)
15
6S3-41112-00-00
Gasket, Exhaust Inne (vx)
16
90119-06MA3-00
Bolt, With Washer (vx)
17
90445-092K1-00
Hose (l600) (vx)
18
90467-08004-00
Clip, Scissor (vx)
19
60H-12416-00-00
Valve, Pressure Cont (vx)
20
90501-16M11-00
Spring, Compression (vx)
21
90480-20M05-00
Grommet (vx)
22
6G5-11382-A1-00
Gasket 2 (vx)
23
6G5-11372-00-1S
Cover, Bypass 2 (vx)
24
90119-06MA2-00
Bolt, With Washer (vx)
25
61A-12576-00-00
Hose 1 (vx)
26
90465-13M18-00
Clamp (vx) (5 Per Pack)
27
BR9-HS100-00-00
Br9hs-10 Ngk 10pk (ngk Br9hs-10) Ur Vx200 (vx) (10 Per Pack)
27
BR8-HS100-00-00
Br8hs1 Ngk Splug 10 (ngk Br8hs-10) Ur Vx225 (vx) (10 Per Pack)
