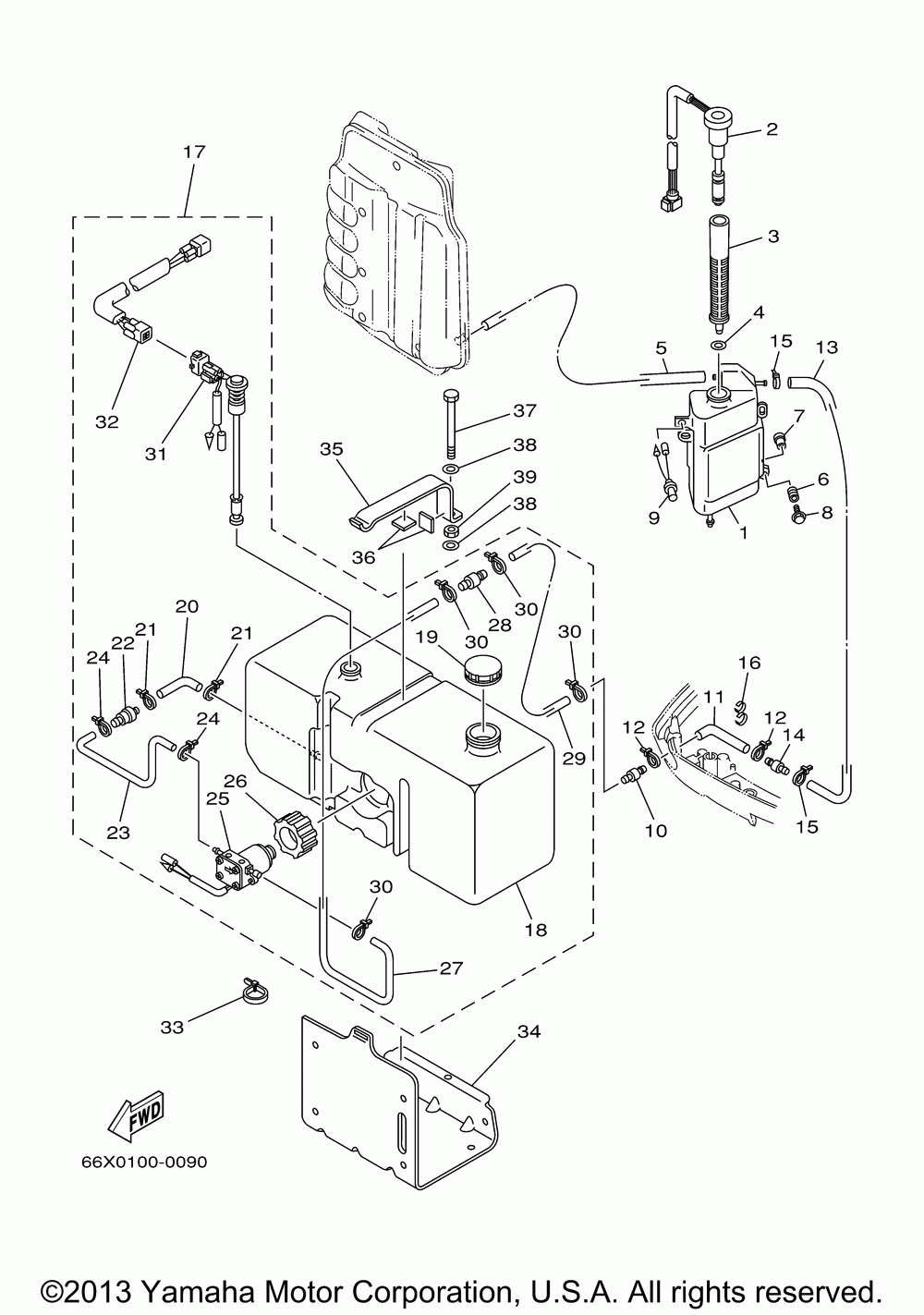

Масляный бак

Yamaha VX200TLRZ/VX225TLRZ
Yamaha
#oem кодцена
1
61A-21750-00-00
Oil Tank Asy (vx)
2
61A-85730-03-00
Oil Level Gauge Assy (vx)
3
61A-13411-00-00
Strainer, Oil (vx)
4
6E5-13414-00-00
Gasket, Strnr Cover (vx) (5 Per Pack)
5
90445-05M07-00
Hose (l700) (vx)
6
6A0-82317-00-00
Damper, Ign Coil (vx)
7
90387-06119-00
Collar (vx)
8
90119-06M95-00
Bolt, With Washer (vx)
9
6R3-8259E-00-00
Switch Assy (vx)
10
6E5-24379-00-00
Pipe, Joint (vx)
11
90445-11M81-00
Hose (l1900) (vx)
12
90465-10098-00
Clamp (vx)
13
6E5-24323-00-00
Pipe 12 (vx)
14
6E5-24379-00-00
Pipe, Joint (vx)
15
90465-10098-00
Clamp (vx)
16
90464-13M34-00
Clamp (vx)
17
61A-21708-30-00
Sub Oil Tank Assy. Ap (vx)
18
6E5-21733-30-00
Sub Tank, Oil (18l) (18l) (vx)
19
6E5-21770-03-00
Cap Assy, Oil Tank (vx)
20
6E5-24322-10-00
Pipe (vx)
21
90465-10098-00
Clamp (vx)
22
646-24251-02-00
Strainer 1 (vx)
23
6E5-24319-10-00
Pipe, Oil Tank (vx)
24
90465-10098-00
Clamp (vx)
25
6E5-81900-01-00
Motor Pump Assy (vx)
26
6E5-81922-00-00
Grommet (vx)
27
6E5-24321-01-00
Pipe 10 (vx)
28
6E5-24379-00-00
Pipe, Joint (vx)
29
90445-11M00-00
Hose (l6500) (vx)
30
90465-10098-00
Clamp (vx)
31
6E5-85720-06-00
Oil Level Gauge Assy (vx)
32
6R3-85721-80-00
Oil Tank Harn 26ft (l=8.0m) (vx)
33
90465-13M11-00
Clamp Ap (vx)
34
6E5-21734-01-33
Hldr, Oil Sub Tank Ap (vx)
35
6E5-21798-01-33
Bracket, Damper Ap (vx)
36
6E5-21746-00-00
Damper Ap (vx)
37
97080-06100-00
Bolt Ap (vx)
38
92990-06600-00
Washer Ap (vx) (5 Per Pack)
39
95380-06600-00
Nut Ap (vx) (5 Per Pack)
