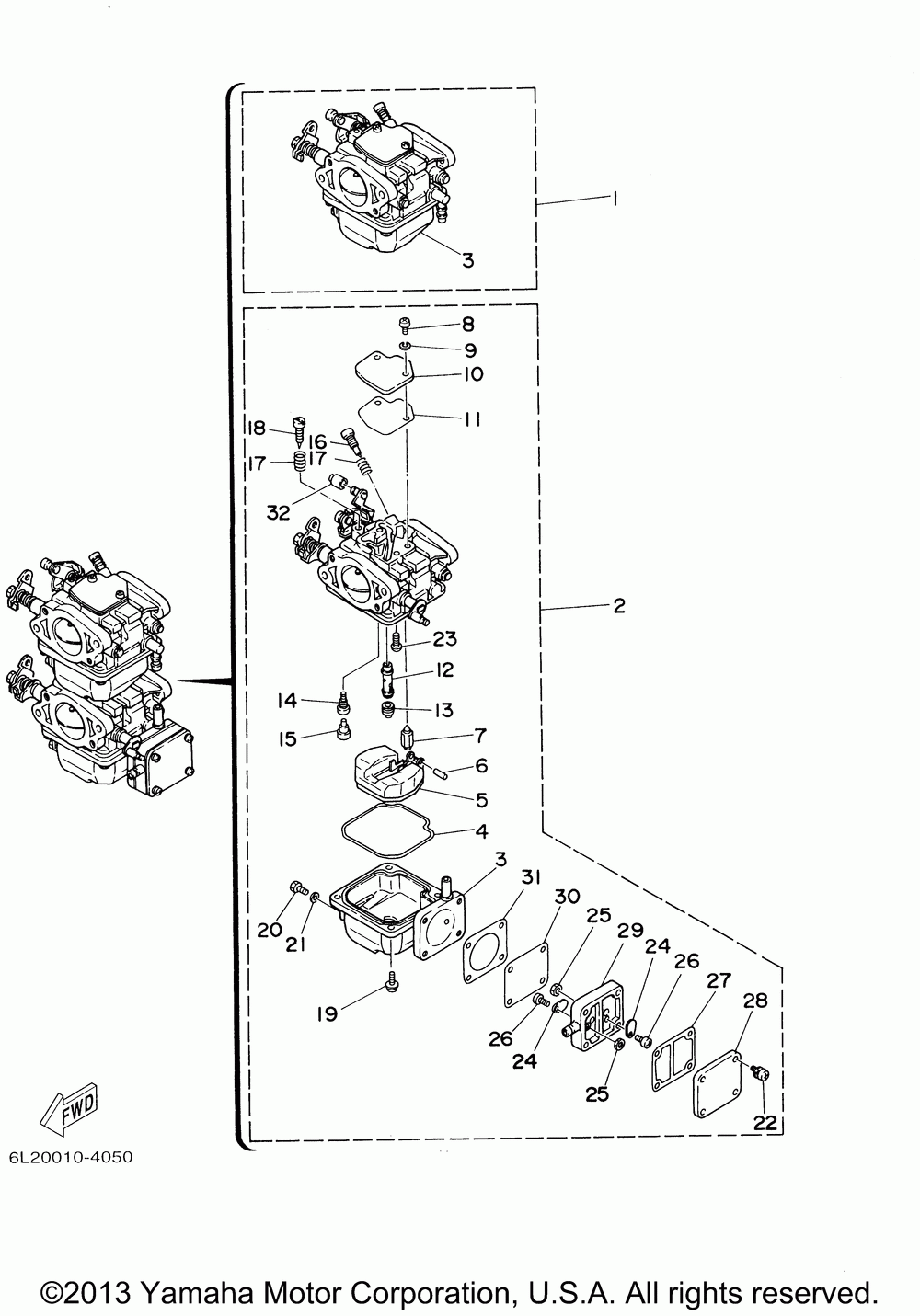

Карбюратор

Yamaha 25MSHY/25MLHY
Yamaha
#oem кодцена
1
6L2-14301-02-00
Carburetor Assy 1 1(mh)
1
6L2-14301-02-00
Carburetor Assy 1 1(mh)
2
6L2-14302-02-00
Carburetor Assy 2 2(mh)
2
6L2-14302-02-00
Carburetor Assy 2 2(mh)
3
6L2-14381-00-00
Body, Float Chamber Ur 1(mh)
3
6L2-14381-00-00
Body, Float Chamber Ur 1(mh)
3
6L2-14383-00-00
Body, Float Chamber Ur 2(mh)
3
6L2-14383-00-00
Body, Float Chamber Ur 2(mh)
4
6L2-14384-00-00
Gasket, Float Chmbr (mh)
4
6L2-14384-00-00
Gasket, Float Chmbr (mh)
5
6L2-14385-00-00
Float (mh)
5
6L2-14385-00-00
Float (mh)
6
6E5-14386-01-00
Pin, Float (mh)
6
6E5-14386-01-00
Pin, Float (mh)
7
6L2-14392-00-00
Valve, Needle (mh)
7
6L2-14392-00-00
Valve, Needle (mh)
8
98580-04010-00
Screw, Pan Head (mh)
8
98580-04010-00
Screw, Pan Head (mh)
9
92990-04100-00
Washer, Spring (mh) (5 Per Pack)
9
92990-04100-00
Washer, Spring (mh) (5 Per Pack)
10
6L2-14157-00-00
Cover, Mixing (mh)
10
6L2-14157-00-00
Cover, Mixing (mh)
11
6L2-14399-00-00
Gasket (mh)
11
6L2-14399-00-00
Gasket (mh)
12
6L2-14341-00-00
Nozzle, Main (mh)
12
6L2-14341-00-00
Nozzle, Main (mh)
13
30X-14343-63-00
Jet, Main#125 (#125) (mh)
13
30X-14343-63-00
Jet, Main#125 (#125) (mh)
14
6L2-14342-30-00
Jet, Pilot (#60) (# 60) (mh)
14
6L2-14342-30-00
Jet, Pilot (#60) (# 60) (mh)
15
50M-14355-00-00
Plug (mh)
15
50M-14355-00-00
Plug (mh)
16
6L2-14323-00-00
Screw, Air Adj (mh)
16
6L2-14323-00-00
Screw, Air Adj (mh)
17
646-14212-01-00
Spring, Pilot Adj (mh)
17
646-14212-01-00
Spring, Pilot Adj (mh)
18
664-14321-01-00
Screw, Throttle (mh)
18
664-14321-01-00
Screw, Throttle (mh)
19
97980-04112-00
Screw, W/washer (mh)
19
97980-04112-00
Screw, W/washer (mh)
20
677-14383-01-00
Screw, Drain (mh)
20
677-14383-01-00
Screw, Drain (mh)
21
6L2-14398-00-00
Gasket (mh)
21
6L2-14398-00-00
Gasket (mh)
22
677-24444-09-00
Screw (mh)
22
677-24444-09-00
Screw (mh)
23
98980-04006-00
Screw, Bind (mh)
23
98980-04006-00
Screw, Bind (mh)
24
62Y-24421-01-00
Valve, Check (mh)
24
62Y-24421-01-00
Valve, Check (mh)
25
95380-03600-00
Nut (mh) (5 Per Pack)
25
95380-03600-00
Nut (mh) (5 Per Pack)
26
6E7-14325-00-00
Screw, Pan Head (mh)
26
6E7-14325-00-00
Screw, Pan Head (mh)
27
6L2-24435-00-00
Gasket, Body 2 (mh)
27
6L2-24435-00-00
Gasket, Body 2 (mh)
28
6L2-24413-00-00
Body 2 (mh)
28
6L2-24413-00-00
Body 2 (mh)
29
682-24412-00-00
Body 1 (mh)
29
682-24412-00-00
Body 1 (mh)
30
677-24411-02-00
Diaphragm, Pump (mh)
30
677-24411-02-00
Diaphragm, Pump (mh)
31
677-24434-02-00
Gasket, Body (mh)
31
677-24434-02-00
Gasket, Body (mh)
32
99999-03499-00
Collar & Stopper Set 2(mh)
32
99999-03499-00
Collar & Stopper Set 2(mh)
