Starter 40mh Каталог оригинальных запчастей для лодочных моторов Yamaha 40MLHY/50EJRY/40MJHY/40TLRY (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

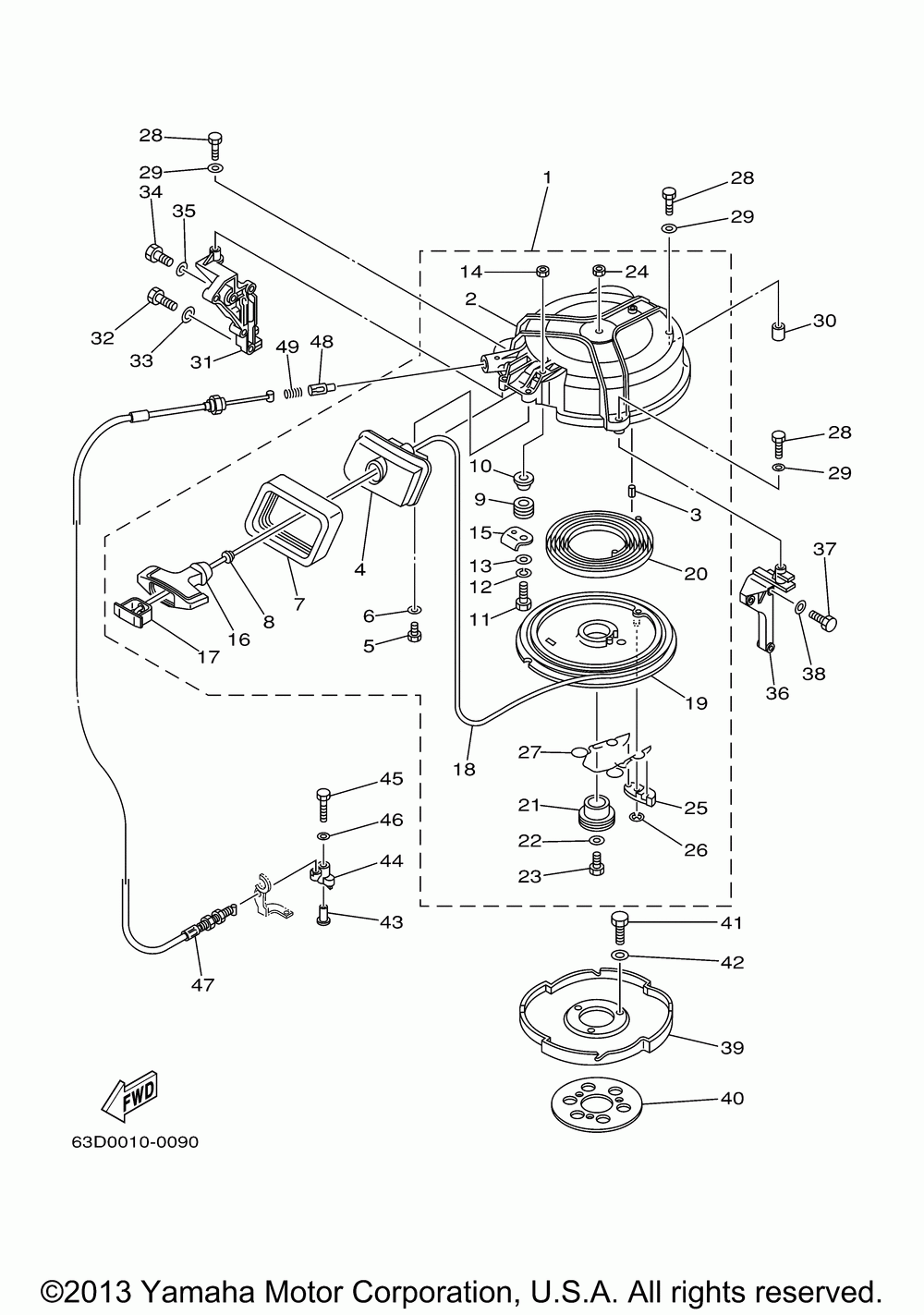

Starter 40mh

Yamaha 40MLHY/50EJRY/40MJHY/40TLRY

Starter 40mh

#

oem код

название

цена

1

63B-Y130E-00-00

Starter Assy (m)

Starter Assy (m)

2

6H4-15711-02-94

Case, Starter (m)

Case, Starter (m)

3

Pin, Spring (m) (5 Per Pack)

Pin, Spring (m) (5 Per Pack)

4

6H4-15758-01-4D

Guide, Rope (m)

Guide, Rope (m)

5

Bolt (ga1) (m) (5 Per Pack)

Bolt (ga1) (m) (5 Per Pack)

6

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

7

6H4-15762-00-00

Seal, Rubber 2 (m)

Seal, Rubber 2 (m)

8

6A0-15789-00-00

Damper (m)

Damper (m)

9

6F5-15752-00-00

Roller, Wire (m)

Roller, Wire (m)

10

Collar (m)

Collar (m)

11

Bolt (m)

Bolt (m)

12

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

13

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

14

Nut (m) (5 Per Pack)

Nut (m) (5 Per Pack)

15

6H4-15787-01-00

Adaptor (m)

Adaptor (m)

16

689-15755-01-00

Handle, Starter (m)

Handle, Starter (m)

17

6F5-15779-02-00

Cover (m)

Cover (m)

19

6H4-15714-00-00

Drum, Sheave (m)

Drum, Sheave (m)

20

Spring, Spiral (m)

Spring, Spiral (m)

21

6H4-15717-01-00

Shaft, Starter (m)

Shaft, Starter (m)

22

Washer, Plate (m)

Washer, Plate (m)

23

Bolt(7u8) (m) (5 Per Pack)

Bolt(7u8) (m) (5 Per Pack)

24

Nut (m) (5 Per Pack)

Nut (m) (5 Per Pack)

25

676-15741-03-00

Pawl, Drive (m)

Pawl, Drive (m)

26

Circlip, E-type (m) (5 Per Pack)

Circlip, E-type (m) (5 Per Pack)

27

6H4-15705-00-00

Spring, Pawl Drive (m)

Spring, Pawl Drive (m)

28

Bolt (m)

Bolt (m)

29

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

30

Pin, Dowel (m)

Pin, Dowel (m)

31

63D-15771-00-1S

Stay 1 (m)

Stay 1 (m)

32

Bolt (682) (m)

Bolt (682) (m)

33

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

34

Bolt (661) (m)

Bolt (661) (m)

35

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

36

6H4-15772-02-00

Stay 2 (m)

Stay 2 (m)

37

Bolt (661) (m)

Bolt (661) (m)

38

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

39

6H4-15723-01-94

Pulley, Starter (m)

Pulley, Starter (m)

40

6J8-81365-A0-00

Gasket, Hole Cover (m)

Gasket, Hole Cover (m)

41

Bolt (661) (m)

Bolt (661) (m)

42

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

43

Collar (m)

Collar (m)

44

63D-15746-00-00

Arm (m)

Arm (m)

45

Bolt (682) (m) (5 Per Pack)

Bolt (682) (m) (5 Per Pack)

46

Washer (m) (5 Per Pack)

Washer (m) (5 Per Pack)

47

63D-15770-00-00

Cable Cmpl, Str Stp (m)

Cable Cmpl, Str Stp (m)

48

656-15748-00-00

Plunger, Str Stop (m)

Plunger, Str Stop (m)

49

Spring, Compression (m)

Spring, Compression (m)
