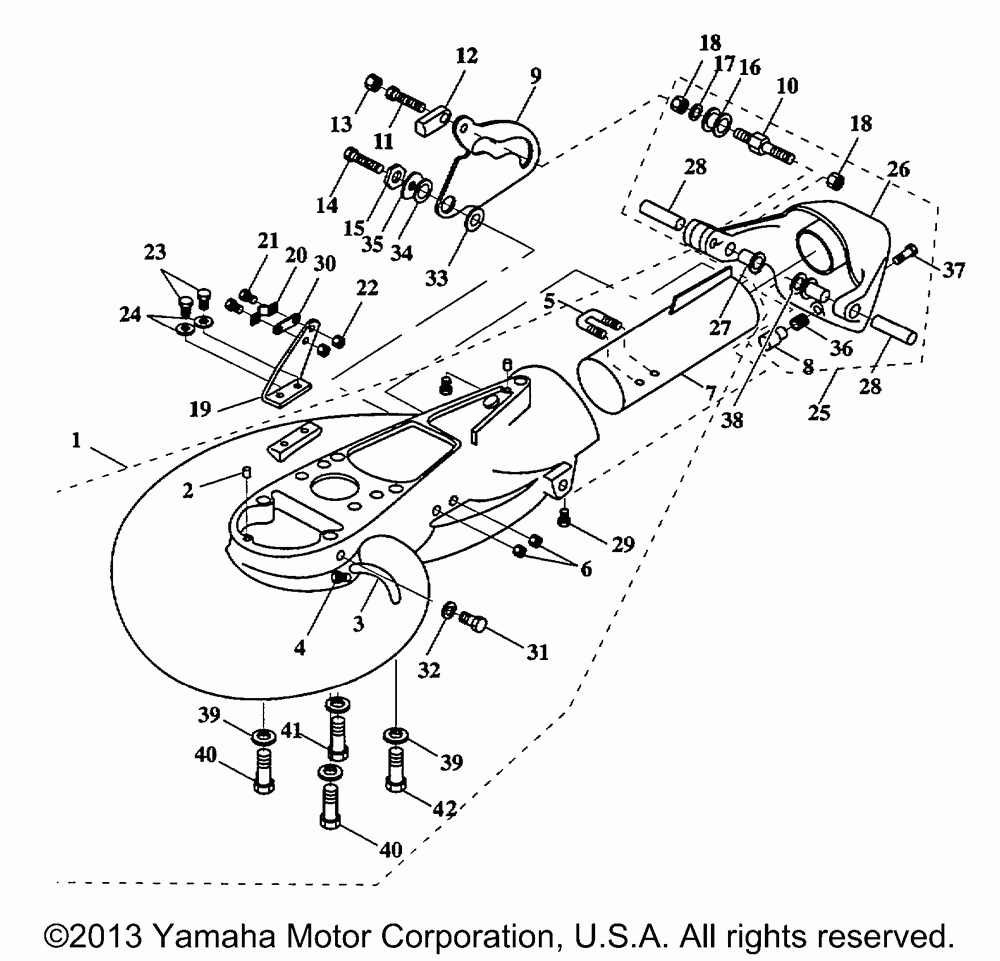

Main housing from serial 59500

Yamaha 90EJRY-PUM/150TJRY-PU
Yamaha
#oem кодцена
1
6E5-JD009-41-01
Mn Hsng.w/ex Tbe Lat 115-200 Hp Model
1
6H1-JD009-08-01
Main Hsng.w/ex.tbe, 90 Hp Model
2
6H4-JD006-31-00
Dowel Pin 3/16x1/2
3
6H4-JD009-75-00
Hose, Grease
4
6H4-JD005-39-00
Fitting, Grease
5
6H4-JD008-46-00
Болт
6
6H4-JD006-21-00
Nut, Fiber Lock
7
6H1-JD001-28-00
Exhaust Tube
8
6H4-JD001-16-90
Gate, Bumper
9
6H1-JD001-03-40
Shift Cam, (y,aa)
10
6H4-JD001-04-30
Shaft, Roller
11
6H1-JD005-73-00
Bolt, 1/4-20 X 3/4"
12
63D-JD005-53-02
Ball End
13
6H4-JD006-23-00
Nut, Fiber 1/4-20
14
6H4-JD005-74-10
Bolt, Hex Hd Nylock
15
6H4-JD001-03-60
Eccentric, Cam
16
6H4-JD001-04-20
Roller Assy W/bush
17
6H4-JD006-35-00
Washer, Plain 1/4
18
6H4-JD006-24-00
Nut, Fbr.loc 1/4-28
19
6H4-JD001-56-00
Bracket, Cable Supp
20
6H4-JD005-43-00
Cable Clamp 154317
21
6H4-JD005-61-00
Screw, Fil Hd Slot
22
6H4-JD006-19-00
Nut, Fbr Lock 10/24
23
6H4-JD005-72-00
Bolt, Hex Head
24
6H4-JD006-35-00
Washer, Plain 1/4
25
6H1-JD001-17-30
Gate Assy, Lge. Cam
26
6H1-JD011-72-01
Gate, Reverse Y,aa
27
6H1-JD005-36-00
Nylon Sleeve 4951a
28
6H1-JD008-23-00
Pin, Gate Pivot 1/2
29
6H4-JD005-74-00
Bolt, Hex Hd.ny.loc
30
6H4-JD005-42-00
Shim, Morse A035777
32
6H4-JD001-02-50
Flush Washer
33
6H4-JD001-03-70
Bushing, Cam
34
6H4-JD001-03-80
Washer, Cam
35
6H4-JD001-03-90
Shim, Cam
36
6H4-JD001-17-00
Spring, Bumper
37
6H4-JD005-58-00
Screw, Fil Hd
38
6H1-JD001-17-80
Washer, Spring 1/2
39
6H4-JD006-36-00
Washer, Spring M10
40
6H1-JD006-08-00
Bolt 3/8-16x2-1/4"
41
6H1-JD006-09-00
Bolt 3/8-16x2-3/4"
42
6H1-JD006-10-00
Bolt 3/8-16 X 3"
