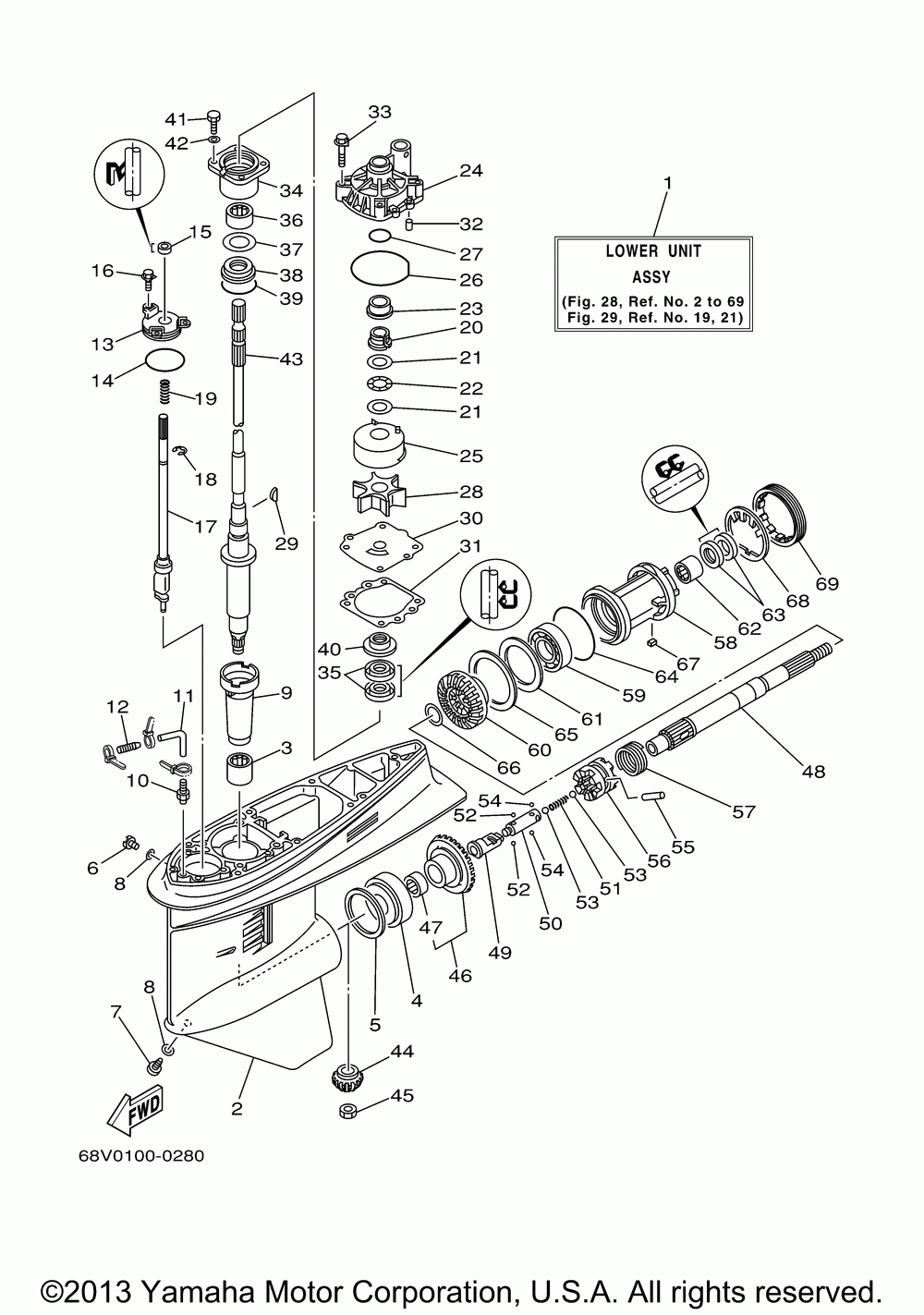

Lower casing drive 1 f115

Yamaha F115TXRY/LF115TXRY/F115TLRY
Yamaha
#oem кодцена
1
68V-45300-33-8D
Lower Unit Assy Ur X (68v)
1
68V-45300-13-8D
Lower Unit Assy Ur L (68v)
2
6E5-45301-05-8D
Casing, Lower (68v)
3
93315-628U9-00
Bearing, Cyl.#15 (68v)
4
93332-000U7-00
Bearing, Taprd #32 (68v)
5
6E5-45567-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (68v)
5
6E5-45567-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (68v)
5
6E5-45567-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (68v)
5
6E5-45567-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (68v)
5
6E5-45567-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (68v)
5
6E5-45567-01-00
Shim (t:0.10mm) (t:0.10mm) Ur (68v)
5
6E5-45567-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (68v)
6
90340-08002-00
Plug, Straight Screw (68v)
7
688-45341-10-00
Plug, Drain (68v)
8
90430-08020-00
Gasket (68v) (10 Per Pack)
9
6E5-45536-00-00
Sleeve, Drive Shft (68v)
10
6E5-45378-00-00
Nipple, Hose (68v)
11
90445-07MF2-00
Hose (l120) Ur X (68v)
12
6E5-83558-10-00
End, Nipple (68v)
13
6E5-45321-00-00
Plate (68v)
14
93210-58677-00
O-ring (68v)
15
93106-09014-00
Oil Seal, Dd-type (68v)
16
90119-06M10-00
Bolt, With Washer (68v)
17
6L6-44150-01-00
Shift Cam Assy (68v)
19
90501-11M10-00
Spring, Compression (68v)
20
61A-45538-00-00
Spacer 1 (68v)
21
90201-22M01-00
Washer, Plate (68v) (5 Per Pack)
22
90206-22M19-00
Washer, Wave (68v)
23
61A-45527-00-00
Collar, Drive Shaft (68v)
24
61A-44311-01-00
Housing, Water Pump (68v)
25
61A-44322-02-00
Insert, Cartridge (68v)
26
93210-86M38-00
O-ring (68v)
27
93210-37M67-00
O-ring (68v) (5 Per Pack)
28
6E5-44352-01-00
Impeller (68v)
29
90280-04M05-00
Key, Woodruff (68v)
30
6E5-44323-00-00
Outer Plate, Cart. (68v)
31
6E5-44315-A0-00
Gasket, Water Pump (68v)
32
93606-12019-00
Pin, Dowel (68v) (5 Per Pack)
33
90119-08M14-00
Bolt, With Washer (68v)
34
6E5-45331-00-9S
Housing, Bearing (68v)
35
93101-28M16-00
Oil Seal, S-type (68v)
36
93315-430V5-00
Bearing, Cyl.#15 (68v)
37
6E5-45587-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (68v)
37
6E5-45587-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (68v)
37
6E5-45587-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (68v)
37
6E5-45587-01-00
Shim 3 (t:0.10mm) Ur (68v)
37
6E5-45587-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (68v)
37
6E5-45587-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (68v)
37
6E5-45587-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (68v)
38
93341-930V2-00
Bearing, Thrust (68v)
39
93210-54534-00
O-ring (68v)
40
6E5-45344-00-00
Cover, Oil Seal (68v)
41
97095-08025-00
Bolt (68v)
42
92990-08600-00
Washer (68v) (5 Per Pack)
43
68V-45501-10-00
Drive Shaft Comp. Ur L (68v)
43
68V-45501-30-00
Drive Shaft Comp. Ur X (68v)
44
68V-45551-00-00
Pinion (13t) (68v)
45
90170-16M01-00
Nut, Hexagon (68v)
46
68V-45560-00-00
Gear (28t) (68v)
47
93315-425U7-00
Bearing, Cyl.#15 (68v)
48
6E5-45611-01-00
Shaft, Propeller (68v)
49
6K1-45641-01-00
Shifter (68v)
50
6E5-45634-01-00
Slide, Shaft (68v)
51
90501-16M37-00
Spring, Compression (68v)
52
93507-32031-00
Ball 7/32 (68v) (5 Per Pack)
53
93511-32027-00
Ball 11/32 (68v) (5 Per Pack)
54
93503-16003-00
Ball 3/16 (68v) (5 Per Pack)
55
90250-08M07-00
Pin, Straight (68v)
56
68V-45631-01-00
Clutch, Dog (68v)
57
6E5-45633-01-00
Ring, Cross Pin (68v)
58
6E5-45332-00-CA
Housing, Bearing (68v)
59
93306-208U0-00
Bearing (68v)
60
68V-45571-00-00
Gear (28t) (68v)
61
6E5-45576-00-00
Washer, Thrust (68v)
62
93315-43061-00
Bearing (68v)
63
93101-30M17-00
Oil Seal, S-type (68v)
64
93210-86M39-00
O-ring (68v)
65
6L6-45577-10-00
Shim (t:0.12mm) (t:0.12mm) Ur (68v)
65
6L6-45577-40-00
Shim (t:0.30mm) (t:0.30mm) Ur (68v)
65
6L6-45577-60-00
Shim (t:0.50mm) (t:0.50mm) Ur (68v)
65
6L6-45577-00-00
Shim (t:0.10mm) (t:0.10mm) Ur (68v)
65
6L6-45577-20-00
Shim (t:0.15mm) (t:0.15mm) Ur (68v)
65
6L6-45577-30-00
Shim (t:0.18mm) (t:0.18mm) Ur (68v)
65
6L6-45577-50-00
Shim (t:0.40mm) (t:0.40mm) Ur (68v)
66
90201-30M92-00
Washer, Plate (68v)
67
90282-04010-00
Key, Straight (68v)
68
688-45383-02-00
Washer, Claw (68v)
69
688-45384-02-00
Nut (68v)
