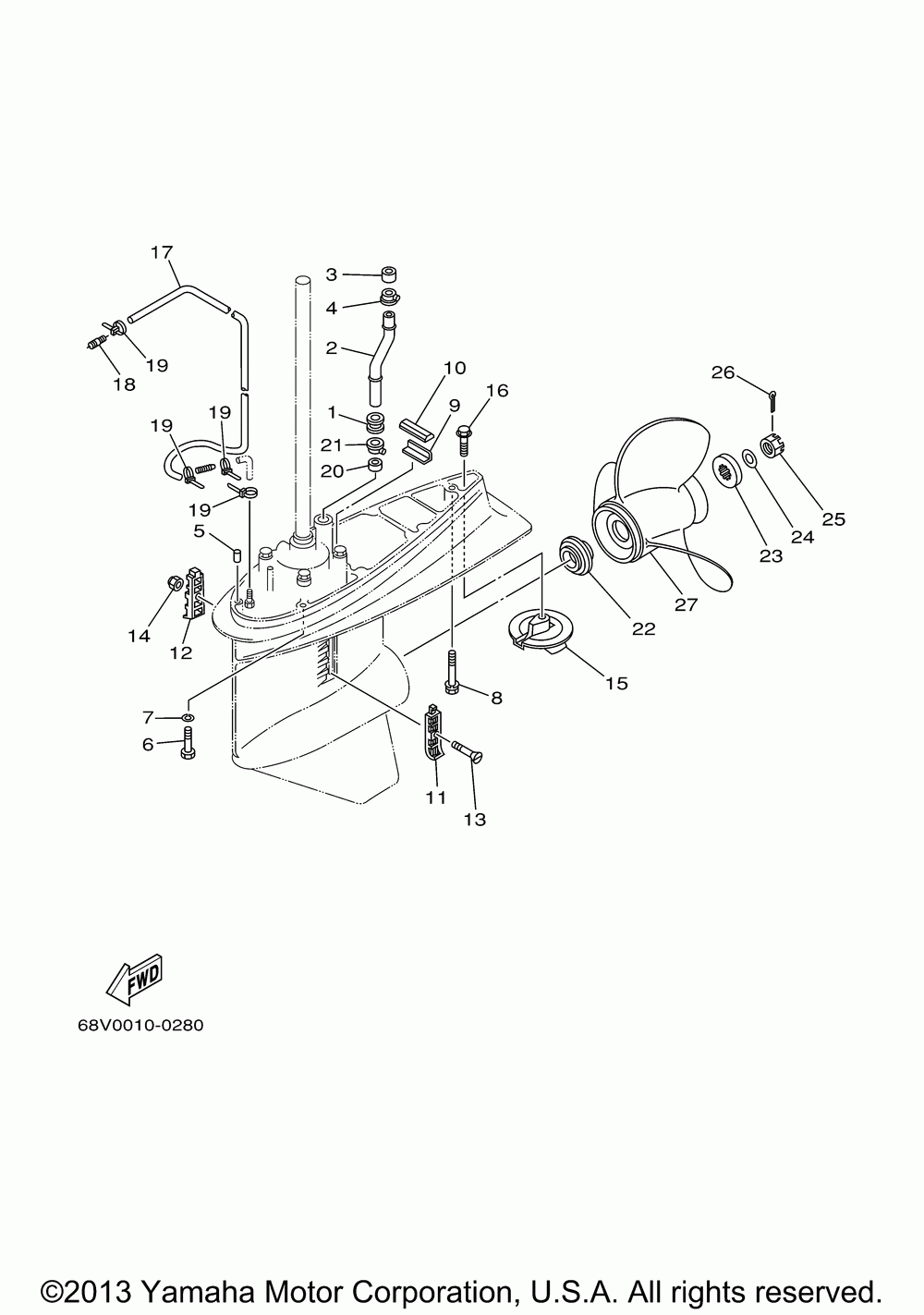

Lower casing drive 2 f115

Yamaha F115TXRY/LF115TXRY/F115TLRY
Yamaha
#oem кодцена
1
6E5-44366-00-00
Water Seal (68v)
2
68V-44361-30-00
Tube, Water Ur X (68v)
2
68V-44361-11-00
Tube, Water Ur L (68v)
3
6E5-44365-00-00
Water Seal (68v)
4
6E5-44312-00-00
Cover, Wtr.pump Hsg (68v)
5
93608-12M05-00
Pin, Dowel (68v) (5 Per Pack)
6
97075-10045-00
Bolt (68v)
7
92990-10100-00
Washer, Spring (68v) (5 Per Pack)
8
90119-10M89-00
Bolt, With Washer (68v)
9
663-45376-00-00
Guide, Rub.seal (68v)
10
688-45375-00-00
Seal, Rubber (68v)
11
688-45214-02-00
Cover, Water Inlet (68v)
12
688-45215-02-00
Cover, Water Inlet (68v)
13
90152-05M07-00
Screw, Countersunk (68v)
14
90185-05904-00
Nut, Self-locking (68v)
15
6E5-45371-01-00
Trim-tab (68v)
16
90105-10M00-00
Bolt, Washer Based (68v)
17
90445-070G6-00
Hose (l1550) (68v)
18
6E5-83558-00-00
End, Nipple (68v)
19
90465-10098-00
Clamp (68v)
20
6E5-44365-00-00
Water Seal (68v)
21
6E5-44312-00-00
Cover, Wtr.pump Hsg (68v)
22
63P-45987-00-00
Spacer (68v)
23
688-45997-01-00
Spacer 2 (68v)
24
92990-18200-00
Washer (68v)
25
90171-18M04-00
Nut, Castle (68v)
26
91490-40030-00
Pin, Cotter (68v) (5 Per Pack)
27
688-45974-02-00
Ss Prop.13"x 23 (3x13"x23"-k) Ur (68v)
27
688-45972-02-00
Ss.prop.13"x 21 (3x13"x21"-k) Ur (68v)
27
688-45932-60-00
Ss Prop. 13 1/2x14 (3x13-1/2"x14"-k) Ur (68v)
27
6E5-45952-00-00
Al.prop.13 X 23 (3x13"x23"-k) Ur (68v)
27
6E5-45954-00-00
Al.prop. 14 X 11 (3x14"x11"-k) Ur (68v)
27
688-45976-01-98
Ss Prop. 12 3/4 X 25 (3x13"x25"-k) Ur (68v)
27
6E5-45956-00-00
Al.prop 3x13"x25"-k (3x13"x25"-k) Ur (68v)
27
688-45930-02-00
Ss Prop.13"x 17 (3x13"x17"-k) Ur (68v)
27
62A-45970-10-00
Prop, Proseries 21" K (3x13-1/2"x21"-k) Ur (68v)
27
62A-45972-10-00
Prop, Proseries 23" K (3x13-1/2"x23"-k) Ur (68v)
27
62A-45974-10-00
Prop, Proseries 19" K (3x13-1/2"x19"-k) Ur (68v)
27
688-45970-03-00
Ss Prop.13"x 19 (3x13"x19"-k) Ur (68v)
27
6E5-45949-00-00
Al.prop.13 5/8 X 13 (3x13-5/8"x13"-k) Ur (68v)
27
6E5-45947-00-00
Al.prop13 1/2x15 (3x13-1/2"x15"-k) Ur (68v)
27
6E5-45945-01-00
Al.prop 13-1/4x17 (3x13-1/4"x17"-k) Ur (68v)
27
6E5-45943-00-00
Al.prop.12 5/8x21 (3x12-5/8"x21"-k) Ur (68v)
27
6E5-45941-00-00
Al.prop. 13x19 (3x13"x19"-k) Ur (68v)
27
688-45978-60-00
Ss Prop. 13 1/2x16 (3x13-1/2"x16"-k) Ur (68v)
