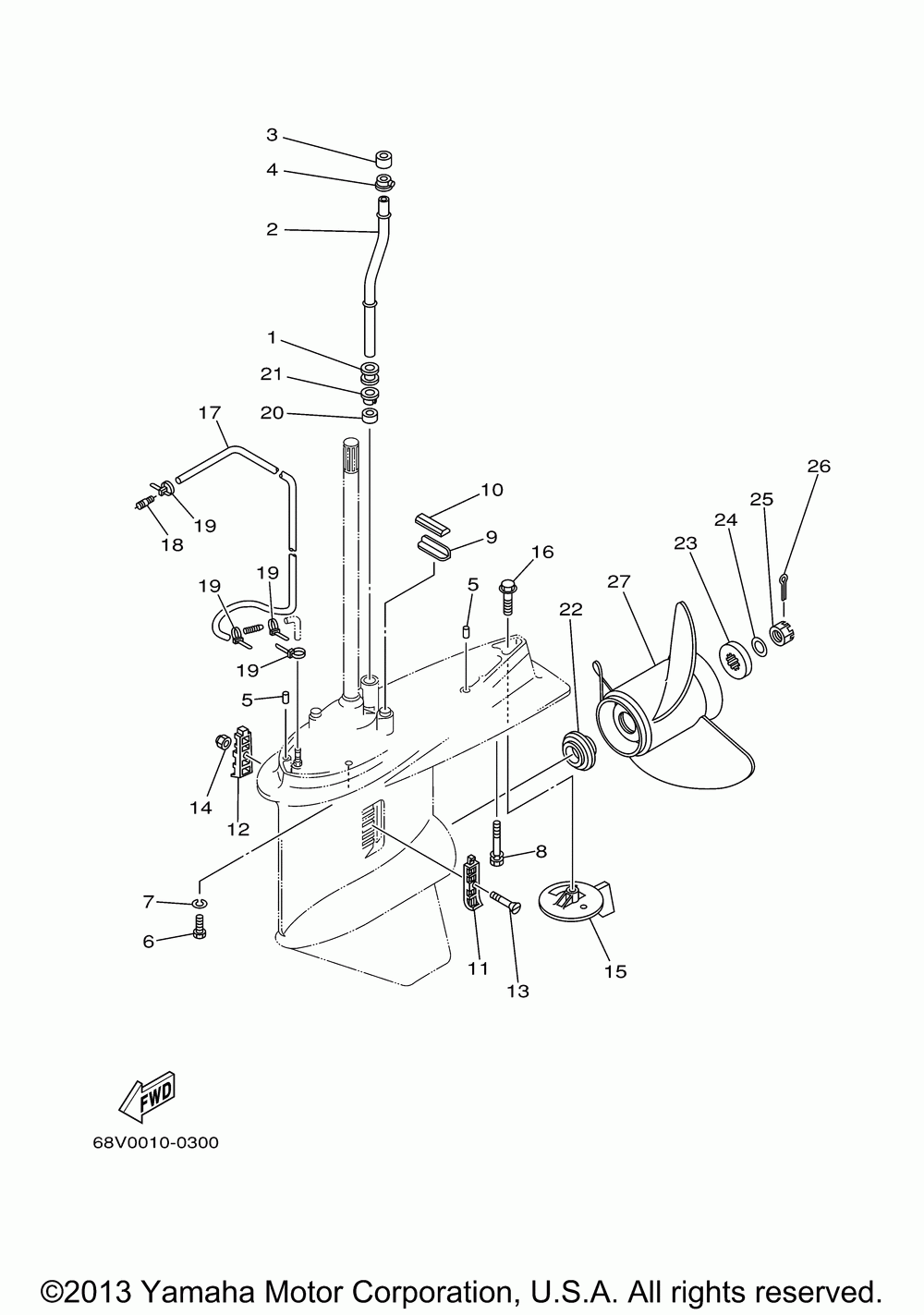

Lower casing drive 4 lf115

Yamaha F115TXRY/LF115TXRY/F115TLRY
Yamaha
#oem кодцена
1
6E5-44366-00-00
Water Seal (68w)
2
68V-44361-30-00
Tube, Water X (68w)
3
6E5-44365-00-00
Water Seal (68w)
4
6E5-44312-00-00
Cover, Wtr.pump Hsg (68w)
5
93608-12M05-00
Pin, Dowel (68w) (5 Per Pack)
6
97075-10045-00
Bolt (68w)
7
92990-10100-00
Washer, Spring (68w) (5 Per Pack)
8
90119-10M89-00
Bolt, With Washer (68w)
9
663-45376-00-00
Guide, Rub.seal (68w)
10
688-45375-00-00
Seal, Rubber (68w)
11
688-45214-02-00
Cover, Water Inlet (68w)
12
688-45215-02-00
Cover, Water Inlet (68w)
13
90152-05M07-00
Screw, Countersunk (68w)
14
90185-05904-00
Nut, Self-locking (68w)
15
6L6-45371-00-00
Trim-tab (68w)
16
90105-10M00-00
Bolt, Washer Based (68w)
17
90445-070G6-00
Hose (l1550) (68w)
18
6E5-83558-00-00
End, Nipple (68w)
19
90465-10098-00
Clamp (68w)
20
6E5-44365-00-00
Water Seal (68w)
21
6E5-44312-00-00
Cover, Wtr.pump Hsg (68w)
22
63P-45987-00-00
Spacer (68w)
23
688-45997-01-00
Spacer 2 (68w)
24
92990-18200-00
Washer (68w)
25
90171-18M04-00
Nut, Castle (68w)
26
91490-40030-00
Pin, Cotter (68w) (5 Per Pack)
27
6L6-45930-01-00
Ss Prop 13x17l (3x13"x17"-kl) Ur (68w)
27
6L6-45972-00-00
Ss Prop. 13 X 21 (3x13"x21"-kl) Ur (68w)
27
6L6-45970-00-00
Ss Prop. 13 X 19 (3x13"x19"-kl) Ur (68w)
