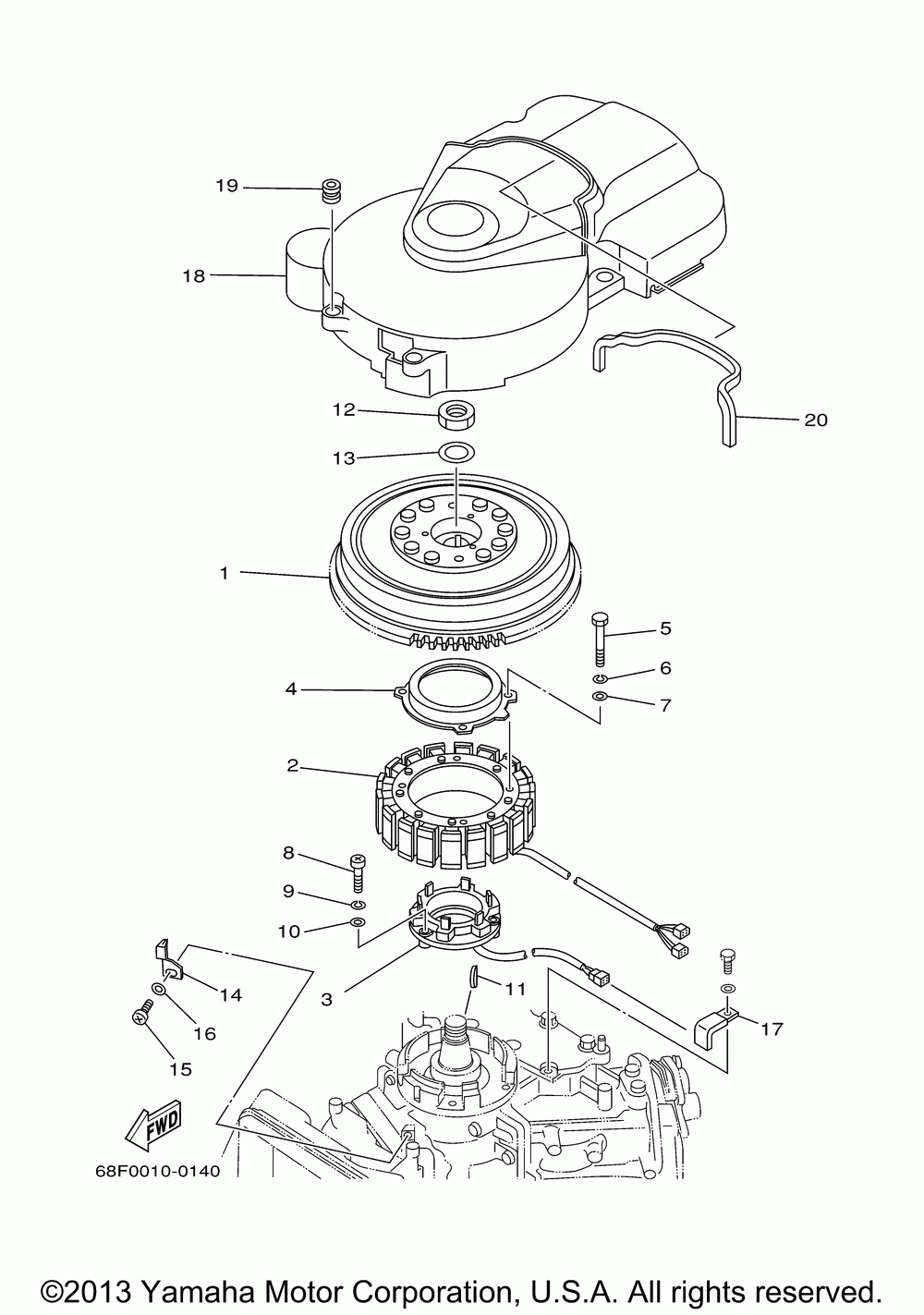

Генератор

Yamaha VZ150TLRY
Yamaha
#oem кодцена
1
68F-81450-00-00
Rotor Assy (68j)
1
68F-81450-00-00
Rotor Assy (68j)
2
68F-81410-00-00
Stator Assy (68j)
2
68F-81410-00-00
Stator Assy (68j)
3
60V-85580-10-00
Coil, Pulser (68j)
3
60V-85580-10-00
Coil, Pulser (68j)
4
61A-83721-00-00
Cover (68j)
4
61A-83721-00-00
Cover (68j)
5
97014-06035-00
Bolt(3rv) (68j)
5
97014-06035-00
Bolt(3rv) (68j)
6
92995-06100-00
Washer (68j) (5 Per Pack)
6
92995-06100-00
Washer (68j) (5 Per Pack)
7
92990-06600-00
Washer (68j) (5 Per Pack)
7
92990-06600-00
Washer (68j) (5 Per Pack)
8
98580-05530-00
Screw, Pan Head (68j)
8
98580-05530-00
Screw, Pan Head (68j)
9
92990-05100-00
Washer, Spring (68j) (5 Per Pack)
9
92990-05100-00
Washer, Spring (68j) (5 Per Pack)
10
92990-05600-00
Washer (68j) (5 Per Pack)
10
92990-05600-00
Washer (68j) (5 Per Pack)
11
90280-05049-00
Key, Woodruff (68j)
11
90280-05049-00
Key, Woodruff (68j)
12
90170-24M22-00
Nut, Hexagon (68j)
12
90170-24M22-00
Nut, Hexagon (68j)
13
90201-25M02-00
Washer, Plate (68j)
13
90201-25M02-00
Washer, Plate (68j)
14
6E5-81332-00-00
Plate, Timing (68j)
14
6E5-81332-00-00
Plate, Timing (68j)
15
97985-06210-00
Screw, Pan Head W/w (68j) (5 Per Pack)
15
97985-06210-00
Screw, Pan Head W/w (68j) (5 Per Pack)
16
92990-06600-00
Washer (68j) (5 Per Pack)
16
92990-06600-00
Washer (68j) (5 Per Pack)
17
90465-08M23-00
Clamp (68j)
17
90465-08M23-00
Clamp (68j)
18
68F-81337-10-00
Cover, Flywheel (68j)
18
68F-81337-10-00
Cover, Flywheel (68j)
19
663-82317-01-00
Damper, Ign Coil (68j)
19
663-82317-01-00
Damper, Ign Coil (68j)
20
68F-85547-01-00
Damper (68j)
20
68F-85547-01-00
Damper (68j)
