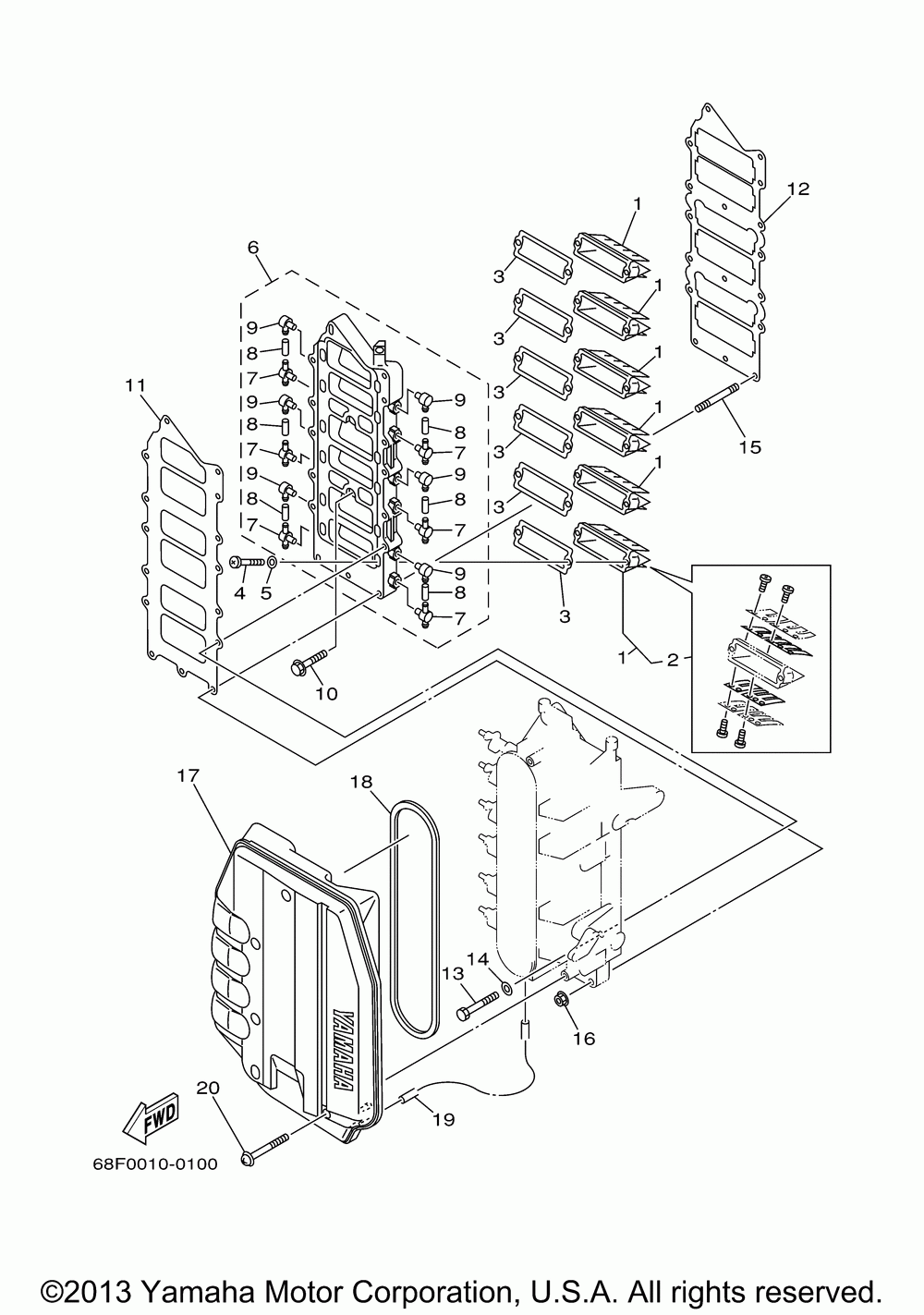

Впускная система

Yamaha VZ150TLRY
Yamaha
#oem кодцена
1
68H-13610-00-00
Reed Valve Assy (68j)
2
65J-W0004-01-00
Reed Set (68j)
3
61A-13621-A0-00
Gasket, Valve Seat (68j)
4
97885-05016-00
Screw, Pan Head (68j)
5
92990-05600-00
Washer (68j) (5 Per Pack)
6
68F-13624-00-1S
Plate, Reed Valve (68j)
7
6F6-11372-01-00
Nipple, Hose (68j)
8
90445-07MA3-00
Hose (l200) (l34) (68j)
9
650-11370-01-00
Check Valve Assy (68j)
10
90119-06MA4-00
Bolt, With Washer (68j)
11
65L-13646-00-00
Gasket, Manifold 2 (68j)
12
65L-13645-00-00
Gasket, Manifold 1 (68j)
13
97013-06060-00
Bolt, Hex (68j)
14
92990-06600-00
Washer (68j) (5 Per Pack)
15
95670-06660-00
Bolt, Stud (68j)
16
90179-06M24-00
Nut, Spec'l Shape (68j) (5 Per Pack)
17
67H-14440-00-00
Silencer Assy, Int (68j)
18
65L-14483-00-00
Gasket (68j)
19
90445-07M90-00
Hose (l250) (68j)
20
90159-06M16-00
Screw, W/washer (68j) (5 Per Pack)
