Масляный бак Каталог оригинальных запчастей для лодочных моторов Yamaha VZ150TLRY (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Yamaha
2000
VZ150TLRY

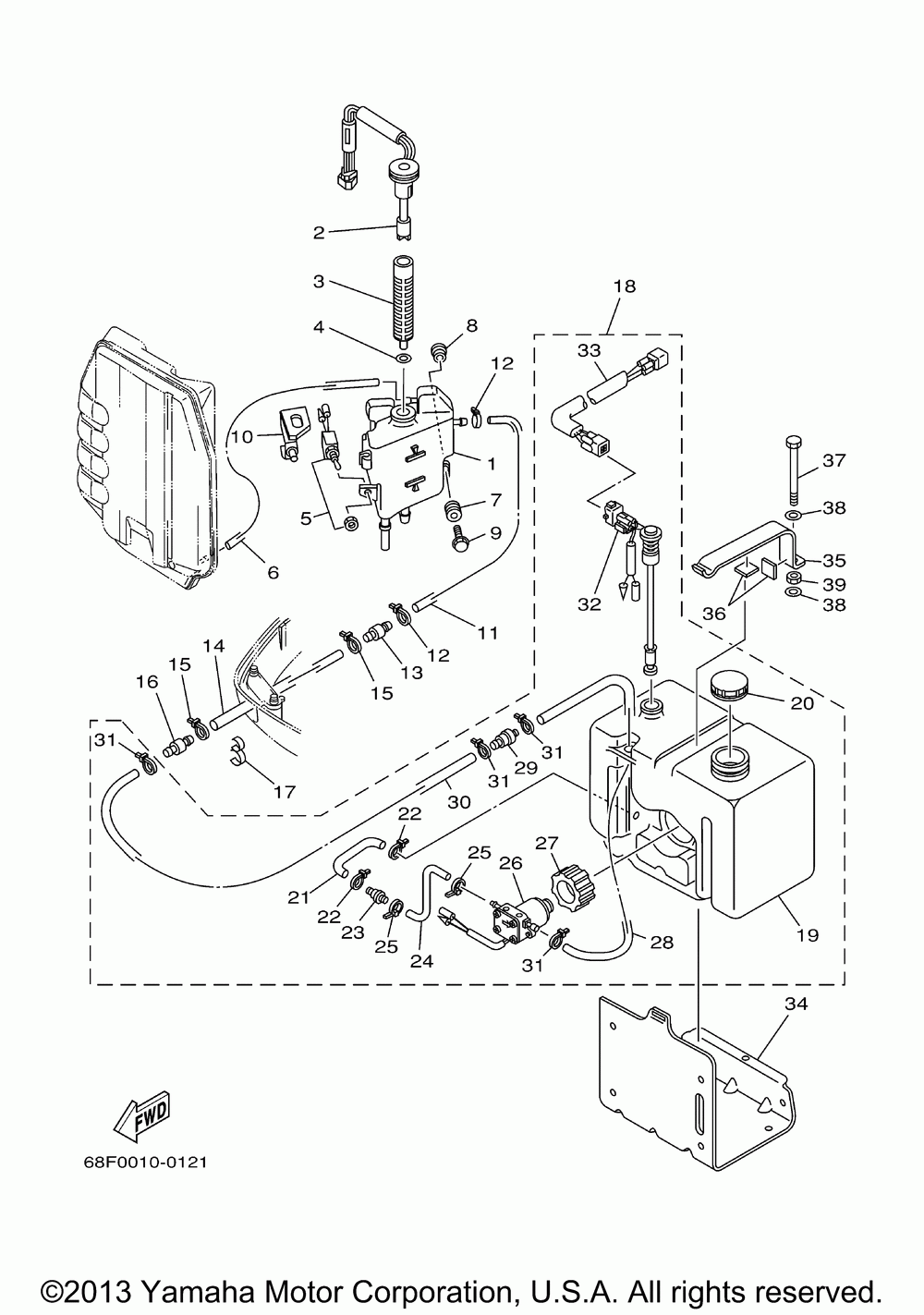

Масляный бак
Масляный бак

Масляный бак

Yamaha VZ150TLRY

Масляный бак

#

oem код

название

цена

1

68F-21750-00-00

Oil Tank Assy (68j)

Oil Tank Assy (68j)

2

67H-85730-02-00

Oil Level Gauge Assy (68j)

Oil Level Gauge Assy (68j)

2

67H-85730-02-00

Oil Level Gauge Assy (68j)

Oil Level Gauge Assy (68j)

3

6E5-13411-00-00

Strainer, Oil (68j)

Strainer, Oil (68j)

3

6E5-13411-00-00

Strainer, Oil (68j)

Strainer, Oil (68j)

4

6E5-13414-00-00

Gasket, Strnr Cover (68j) (5 Per Pack)

Gasket, Strnr Cover (68j) (5 Per Pack)

4

6E5-13414-00-00

Gasket, Strnr Cover (68j) (5 Per Pack)

Gasket, Strnr Cover (68j) (5 Per Pack)

5

6R3-8259E-00-00

Switch Assy (68j)

Switch Assy (68j)

6

Hose (l600) (68j)

Hose (l600) (68j)

6

Hose (l600) (68j)

Hose (l600) (68j)

7

6A0-82317-00-00

Damper, Ign Coil (68j)

Damper, Ign Coil (68j)

7

6A0-82317-00-00

Damper, Ign Coil (68j)

Damper, Ign Coil (68j)

8

Collar (68j)

Collar (68j)

8

Collar (68j)

Collar (68j)

9

Bolt, With Washer (68j)

Bolt, With Washer (68j)

9

Bolt, With Washer (68j)

Bolt, With Washer (68j)

10

Clamp (68j)

Clamp (68j)

10

Clamp (68j)

Clamp (68j)

11

6E5-24323-00-00

Pipe 12 (68j)

Pipe 12 (68j)

11

6E5-24323-00-00

Pipe 12 (68j)

Pipe 12 (68j)

12

Clamp (68j)

Clamp (68j)

12

Clamp (68j)

Clamp (68j)

13

6E5-24379-00-00

Pipe, Joint (68j)

Pipe, Joint (68j)

13

6E5-24379-00-00

Pipe, Joint (68j)

Pipe, Joint (68j)

14

Hose (l2400) (68j)

Hose (l2400) (68j)

14

Hose (l2400) (68j)

Hose (l2400) (68j)

15

Clamp (68j)

Clamp (68j)

15

Clamp (68j)

Clamp (68j)

16

6E5-24379-00-00

Pipe, Joint (68j)

Pipe, Joint (68j)

16

6E5-24379-00-00

Pipe, Joint (68j)

Pipe, Joint (68j)

17

Clamp (68j)

Clamp (68j)

17

Clamp (68j)

Clamp (68j)

18

6E5-21708-10-00

Sub Oil Tank Assy. Ap (68j)

Sub Oil Tank Assy. Ap (68j)

18

6E5-21708-10-00

Sub Oil Tank Assy. Ap (68j)

Sub Oil Tank Assy. Ap (68j)

19

6E5-21733-20-00

Sub Tank, Oil (10.5l (10.5l) (68j)

Sub Tank, Oil (10.5l (10.5l) (68j)

19

6E5-21733-20-00

Sub Tank, Oil (10.5l (10.5l) (68j)

Sub Tank, Oil (10.5l (10.5l) (68j)

20

6E5-21770-03-00

Cap Assy, Oil Tank (68j)

Cap Assy, Oil Tank (68j)

20

6E5-21770-03-00

Cap Assy, Oil Tank (68j)

Cap Assy, Oil Tank (68j)

21

6E5-24322-00-00

Pipe (68j)

Pipe (68j)

21

6E5-24322-00-00

Pipe (68j)

Pipe (68j)

22

Clamp (68j)

Clamp (68j)

22

Clamp (68j)

Clamp (68j)

23

646-24251-02-00

Strainer 1 (68j)

Strainer 1 (68j)

23

646-24251-02-00

Strainer 1 (68j)

Strainer 1 (68j)

24

6E5-24319-01-00

Pipe, Oil (68j)

Pipe, Oil (68j)

24

6E5-24319-01-00

Pipe, Oil (68j)

Pipe, Oil (68j)

25

Clamp (68j)

Clamp (68j)

25

Clamp (68j)

Clamp (68j)

26

6E5-81900-01-00

Motor Pump Assy (68j)

Motor Pump Assy (68j)

26

6E5-81900-01-00

Motor Pump Assy (68j)

Motor Pump Assy (68j)

27

6E5-81922-00-00

Grommet (68j)

Grommet (68j)

27

6E5-81922-00-00

Grommet (68j)

Grommet (68j)

28

6E5-24321-01-00

Pipe 10 (68j)

Pipe 10 (68j)

28

6E5-24321-01-00

Pipe 10 (68j)

Pipe 10 (68j)

29

6E5-24379-00-00

Pipe, Joint (68j)

Pipe, Joint (68j)

29

6E5-24379-00-00

Pipe, Joint (68j)

Pipe, Joint (68j)

30

Hose (l3000) (68j)

Hose (l3000) (68j)

30

Hose (l3000) (68j)

Hose (l3000) (68j)

31

Clamp (68j)

Clamp (68j)

31

Clamp (68j)

Clamp (68j)

32

6E5-85720-06-00

Oil Level Gauge Assy (68j)

Oil Level Gauge Assy (68j)

32

6E5-85720-06-00

Oil Level Gauge Assy (68j)

Oil Level Gauge Assy (68j)

33

6R3-85721-30-00

Oil, Trim, Ext., 9.8 (l=3.0m) (68j)

Oil, Trim, Ext., 9.8 (l=3.0m) (68j)

33

6R3-85721-30-00

Oil, Trim, Ext., 9.8 (l=3.0m) (68j)

Oil, Trim, Ext., 9.8 (l=3.0m) (68j)

34

6E5-21734-01-33

Hldr, Oil Sub Tank Ap (68j)

Hldr, Oil Sub Tank Ap (68j)

34

6E5-21734-01-33

Hldr, Oil Sub Tank Ap (68j)

Hldr, Oil Sub Tank Ap (68j)

35

6E5-21798-01-33

Bracket, Damper Ap (68j)

Bracket, Damper Ap (68j)

35

6E5-21798-01-33

Bracket, Damper Ap (68j)

Bracket, Damper Ap (68j)

36

6E5-21746-00-00

Damper Ap (68j)

Damper Ap (68j)

36

6E5-21746-00-00

Damper Ap (68j)

Damper Ap (68j)

37

Bolt Ap (68j)

Bolt Ap (68j)

37

Bolt Ap (68j)

Bolt Ap (68j)

38

Washer Ap (68j) (5 Per Pack)

Washer Ap (68j) (5 Per Pack)

38

Washer Ap (68j) (5 Per Pack)

Washer Ap (68j) (5 Per Pack)

39

Nut Ap (68j) (5 Per Pack)

Nut Ap (68j) (5 Per Pack)

39

Nut Ap (68j) (5 Per Pack)

Nut Ap (68j) (5 Per Pack)
