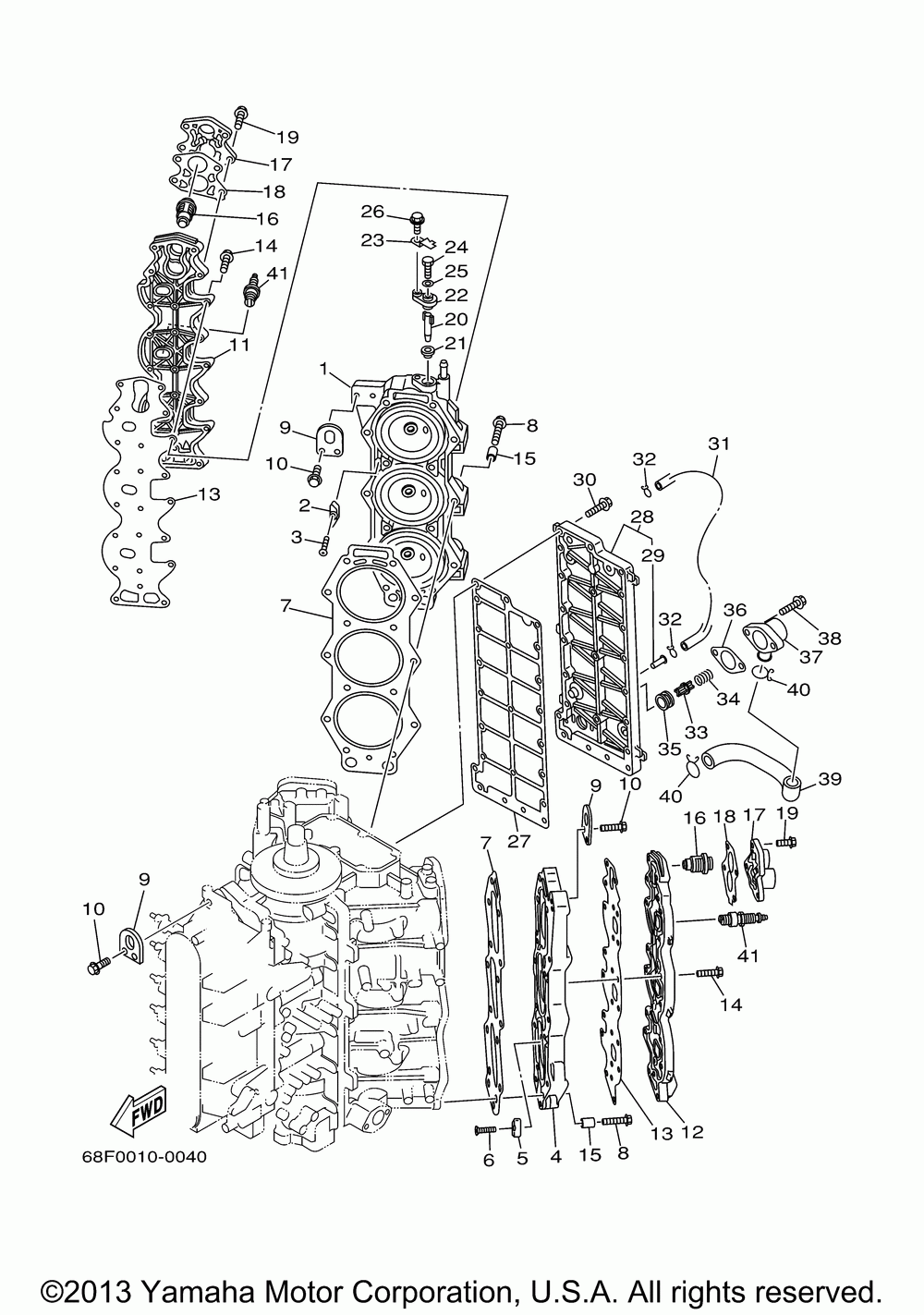

Цилиндр и картер 2

Yamaha VZ150TLRY
Yamaha
#oem кодцена
1
68F-11111-00-94
Head, Cylinder 1 (68j)
2
6E5-11325-00-00
Anode (68j)
3
98780-04014-00
Screw, Flat Head (68j)
4
68F-11121-00-94
Head, Cylinder 2 (68j)
5
6E5-11325-00-00
Anode (68j)
6
98780-04014-00
Screw, Flat Head (68j)
7
68F-11181-00-00
Gasket, Cylinder H (68j)
8
90119-08MA8-00
Bolt, With Washer (68j)
9
68F-11119-00-00
Hanger, Engine (68j)
10
90119-06MA2-00
Bolt, With Washer (68j)
11
68F-11191-00-1S
Cover, Cylinder He (68j)
12
68F-11192-00-1S
Cover, Cylinder He (68j)
13
68F-11193-02-00
Gasket, Head Cover 1 (68j)
14
90119-06MA4-00
Bolt, With Washer (68j)
15
99590-10114-00
Pin, Dowel (68j)
16
6E5-12411-30-00
Thermostat (68j)
17
688-12413-00-1S
Cover, Thermostat (68j)
18
688-12414-A1-00
Gasket, Cover (68j)
19
90119-06MA6-00
Bolt, With Washer (68j)
20
62Y-11325-00-00
Anode (68j)
21
66M-11328-00-00
Grommet, Anode (68j)
22
66M-11327-00-94
Anode Cover (68j)
23
66M-12535-00-00
Plate (68j)
24
97095-05012-00
Bolt (6a4) (68j)
25
92990-05600-00
Washer (68j) (5 Per Pack)
26
90119-06MA2-00
Bolt, With Washer (68j)
27
68F-41114-00-00
Gasket, Exhaust Ou (68j)
28
68F-41113-19-1S
Outer Cover, Exhaust (68j)
29
652-24461-00-00
Pipe, Joint (68j)
30
90119-06MA4-00
Bolt, With Washer (68j)
31
90445-092K1-00
Hose (l600) (68j)
32
90467-08M18-00
Clip (68j)
33
60H-12416-00-00
Valve, Pressure Cont (68j)
34
90501-16M11-00
Spring, Compression (68j)
35
90480-20M05-00
Grommet (68j)
36
6G5-11382-A1-00
Gasket 2 (68j)
37
6G5-11372-00-1S
Cover, Bypass 2 (68j)
38
90119-06MA2-00
Bolt, With Washer (68j)
39
68F-12576-00-00
Hose 1 (68j)
40
90467-23M16-00
Clip (68j)
41
BKR-6ES11-00-00
Bkr6es-11 Ngk 4pk (68j) (4 Per Pack)
