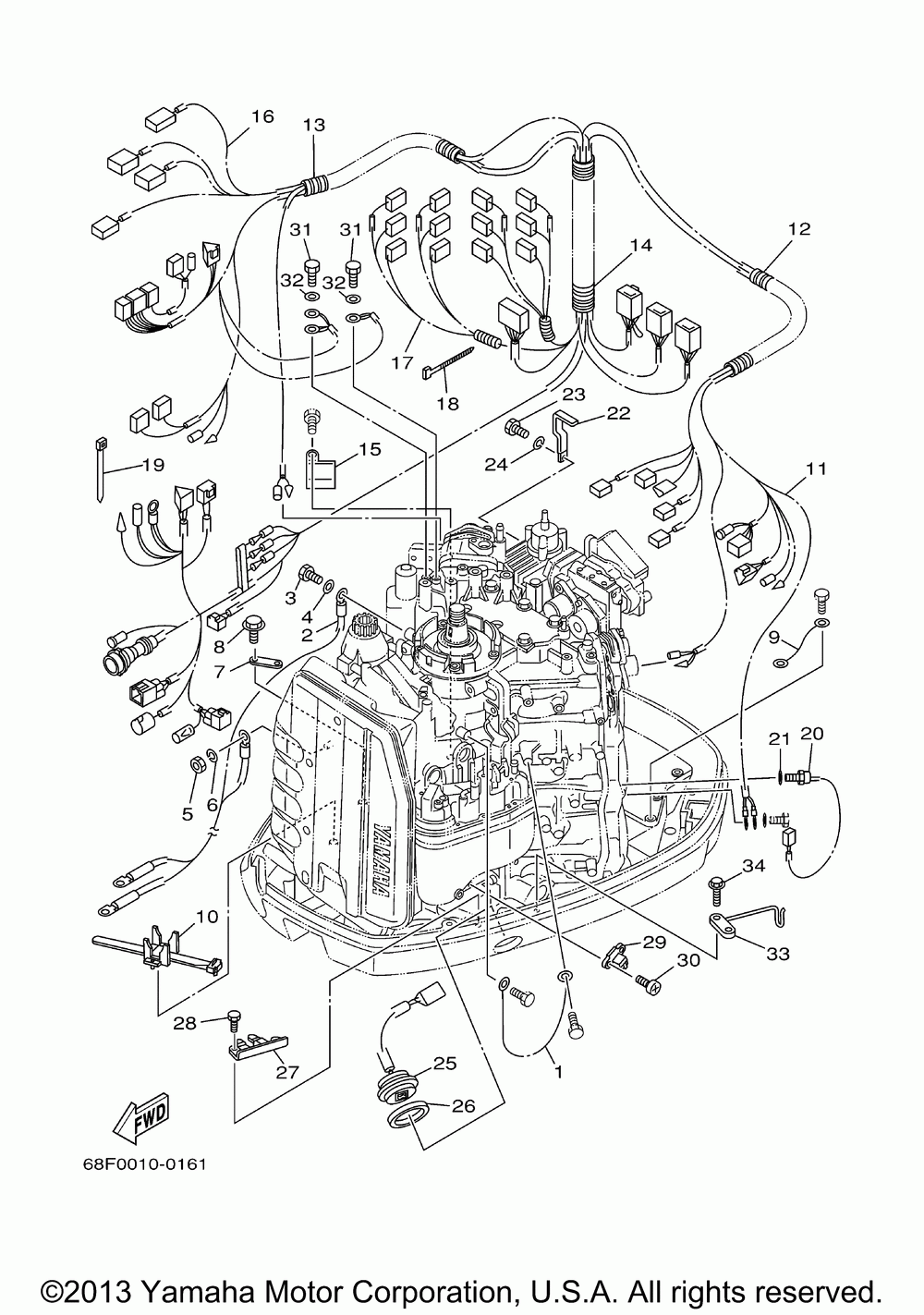

Электрика 2

Yamaha VZ150TLRY
Yamaha
#oem кодцена
1
6H2-81949-11-00
Wire, Lead (68j)
2
68F-82105-00-00
Battery Cable (68j)
3
97095-08016-00
Bolt (68j)
4
92990-08600-00
Washer (68j) (5 Per Pack)
5
95333-08600-00
Nut (6l2) (68j)
6
92990-08100-00
Washer, Spring (68j)
7
6E5-82588-00-00
Plate (68j)
8
95895-06020-00
Bolt (68j)
9
6E5-82531-10-00
Wire, Lead (68j)
10
688-82594-00-00
Clamp (68j)
11
68F-82590-00-00
Wire Harness Assy (68j)
12
90446-24MF6-00
Hose (68j)
13
90446-24MF7-00
Hose (68j)
14
90446-34MF8-00
Hose (68j)
15
90465-08M89-00
Clamp (68j)
16
68F-8259M-00-00
Wire Harness Assy (68j)
17
68F-8259N-00-00
Wire Harness Assy (68j)
18
90465-10098-00
Clamp (68j)
19
90465-11M52-00
Clamp (68j)
20
61A-85790-00-00
Thermosensor Asy (68j)
21
92990-10600-00
Washer (68j) (5 Per Pack)
22
90465-12M93-00
Clamp (68j)
23
97080-06012-00
Bolt (68j)
24
92995-06100-00
Washer (68j) (5 Per Pack)
25
6R3-82563-00-00
Trim & Tilt Switch (68j)
26
6E5-82587-00-00
Gasket (68j)
27
6R3-83614-00-00
Bracket (68j)
28
90109-06M80-00
Bolt (68j)
29
67H-82380-00-00
Sensor, Pressure (68j)
30
98580-06020-00
Screw, Pan Head (68j) (5 Per Pack)
31
97095-06014-00
Bolt (68j)
32
92990-06600-00
Washer (68j) (5 Per Pack)
33
6K7-82588-00-00
Plate (68j)
34
95895-06020-00
Bolt (68j)
