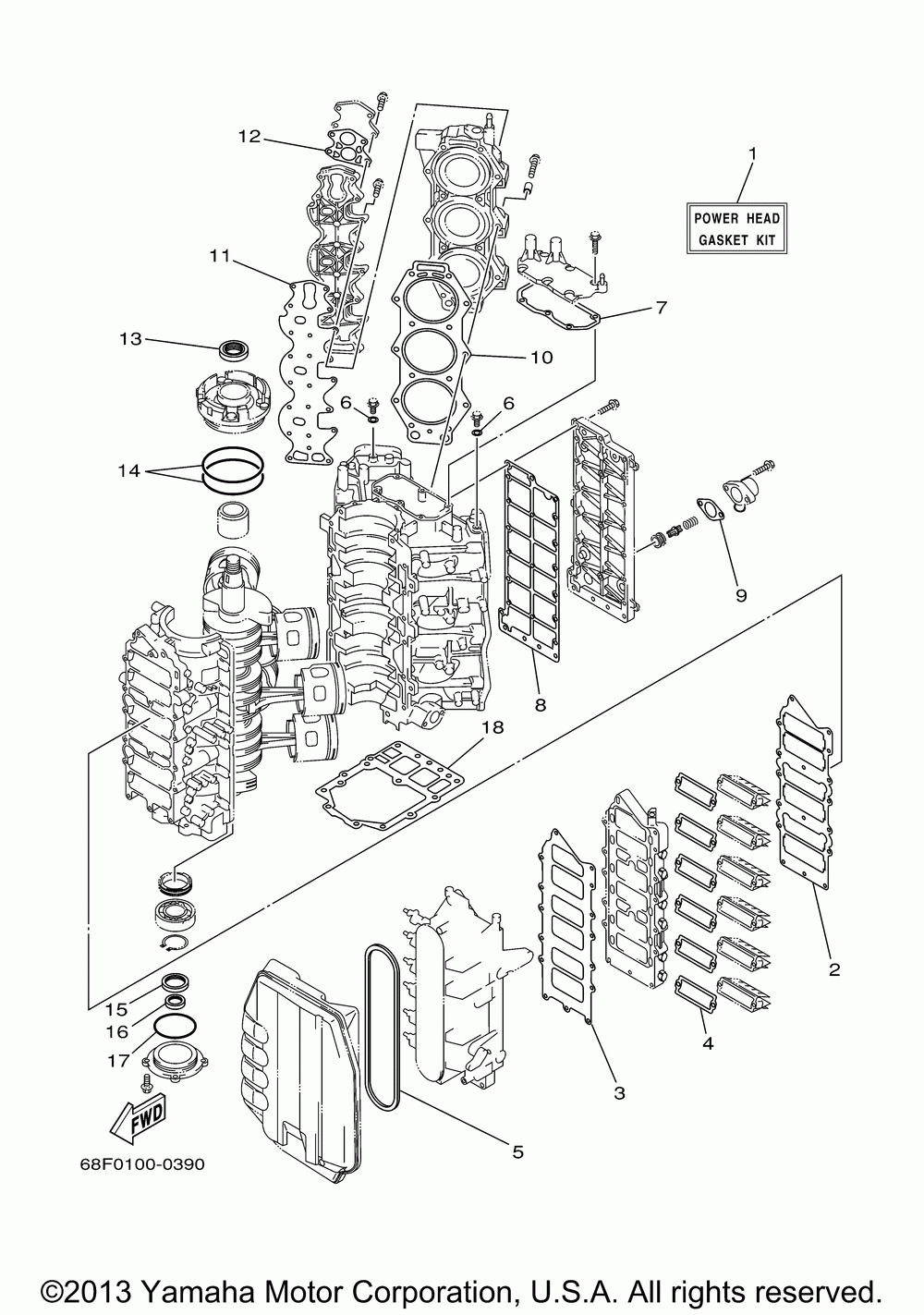

Ремонтные комплекты 1

Yamaha VZ150TLRY
Yamaha
#oem кодцена
1
68F-W0001-09-00
Power Head Gasket Ki (68j)
2
65L-13645-00-00
Gasket, Manifold 1 (68j)
2
65L-13645-00-00
Gasket, Manifold 1 (68j)
3
65L-13646-00-00
Gasket, Manifold 2 (68j)
3
65L-13646-00-00
Gasket, Manifold 2 (68j)
4
61A-13621-A0-00
Gasket, Valve Seat (68j)
4
61A-13621-A0-00
Gasket, Valve Seat (68j)
5
65L-14483-00-00
Gasket (68j)
5
65L-14483-00-00
Gasket (68j)
6
90430-14115-00
Gasket (68j)
6
90430-14115-00
Gasket (68j)
7
68F-11381-00-00
Gasket 1 (68j)
7
68F-11381-00-00
Gasket 1 (68j)
8
68F-41114-00-00
Gasket, Exhaust Ou (68j)
8
68F-41114-00-00
Gasket, Exhaust Ou (68j)
9
6G5-11382-A1-00
Gasket 2 (68j)
9
6G5-11382-A1-00
Gasket 2 (68j)
10
68F-11181-00-00
Gasket, Cylinder H (68j)
10
68F-11181-00-00
Gasket, Cylinder H (68j)
11
68F-11193-02-00
Gasket, Head Cover 1 (68j)
11
68F-11193-02-00
Gasket, Head Cover 1 (68j)
12
688-12414-A1-00
Gasket, Cover (68j)
12
688-12414-A1-00
Gasket, Cover (68j)
13
93102-40M38-00
Oil Seal, Sd-type (68j)
13
93102-40M38-00
Oil Seal, Sd-type (68j)
14
93211-04001-00
O-ring (68j)
14
93211-04001-00
O-ring (68j)
15
93102-35M61-00
Oil Seal, Sd-type (68j)
15
93102-35M61-00
Oil Seal, Sd-type (68j)
16
93101-22M15-00
Oil Seal, S-type (68j)
16
93101-22M15-00
Oil Seal, S-type (68j)
17
93210-74M35-00
O-ring (68j)
18
68F-45113-01-00
Gasket, Upper Casing (68j)
18
68F-45113-01-00
Gasket, Upper Casing (68j)
