Дейвуд

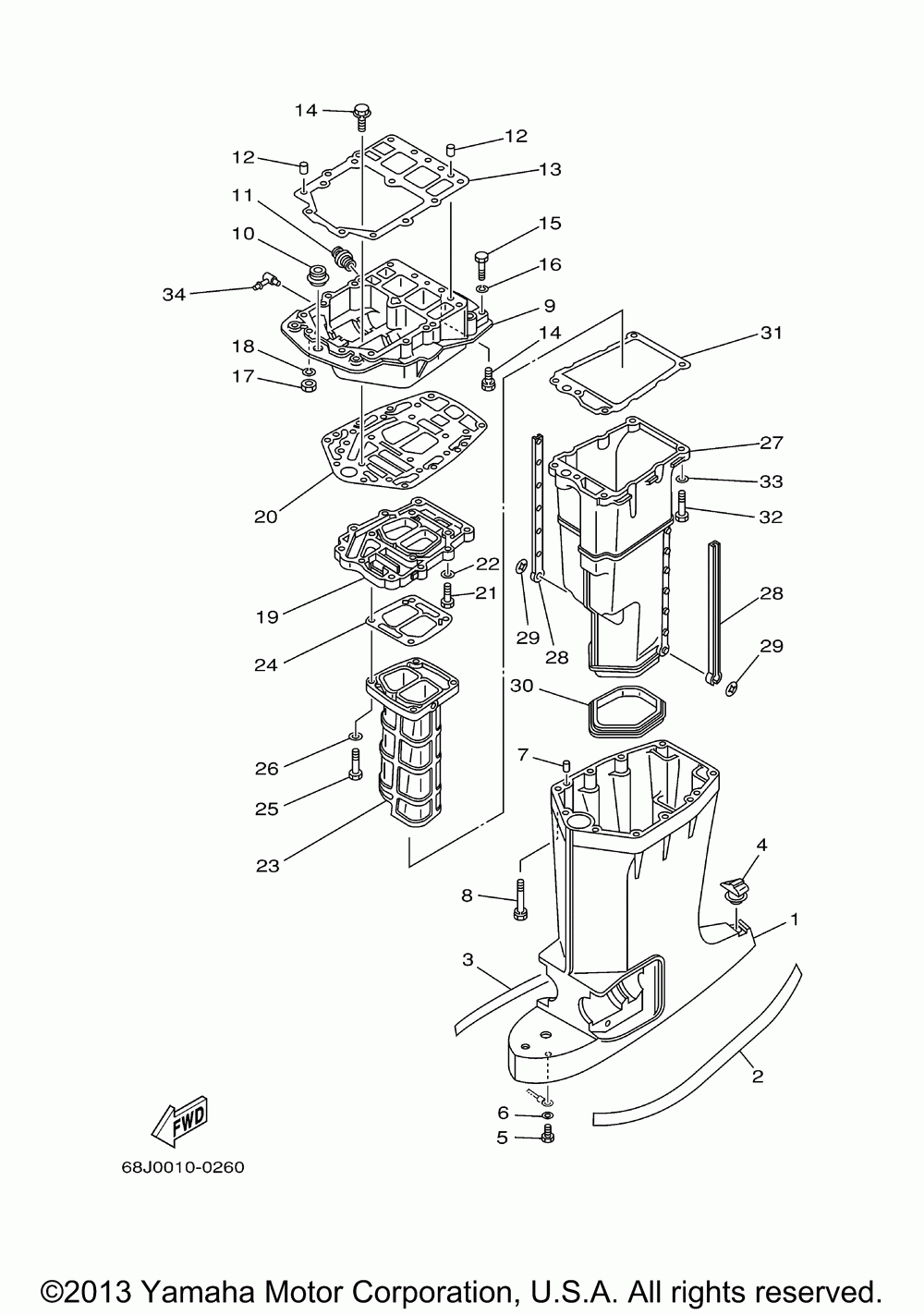

Yamaha VZ150TLRY
Yamaha
#oem кодцена
1
6E5-45111-02-8D
Casing, Upper L (68j)
2
6N9-42791-40-00
Mark (68j)
3
6N9-42792-40-00
Mark 2 (68j)
4
6E5-45155-00-00
Cap (68j)
5
97085-06010-00
Bolt (68j)
6
92990-06600-00
Washer (68j) (5 Per Pack)
7
93608-12M05-00
Pin, Dowel (68j) (5 Per Pack)
8
90119-08M78-00
Bolt, With Washer (68j)
9
6G5-41137-11-CA
Guide, Exhaust Flushing Kit (68j)
10
6E5-42724-00-00
Grommet 1 (68j)
11
6G5-12581-00-00
Joint, Hose 1 (68j)
12
93608-12M05-00
Pin, Dowel (68j) (5 Per Pack)
13
68F-45113-01-00
Gasket, Upper Casing (68j)
14
97080-08030-00
Bolt (68j)
15
97095-08045-00
Bolt, Hexagon (68j)
16
92990-08100-00
Washer, Spring (68j)
17
95380-08700-00
Nut (68j)
18
92990-08100-00
Washer, Spring (68j)
19
6G5-41131-01-CA
Manifold, Ext. 1 (68j)
20
6G5-45114-A1-00
Gasket, Upper Casing (68j)
21
97080-08030-00
Bolt (68j)
22
92990-08600-00
Washer (68j) (5 Per Pack)
23
64D-41132-00-CA
Manifold, Exhaust (68j)
24
6G5-41134-A1-00
Gasket, Exhaust Mani (68j)
25
97095-08045-00
Bolt, Hexagon (68j)
26
92990-08600-00
Washer (68j) (5 Per Pack)
27
6E5-14711-01-CA
Muffler 1 (68j)
28
6E5-14737-00-00
Damper, Muffler (68j)
29
90183-05M02-00
Nut, Spring (68j) (5 Per Pack)
30
6E5-45123-00-00
Gasket, Muffler (68j)
31
6E5-41135-A0-00
Gasket, Exh.mani.3 (68j)
32
97095-08045-00
Bolt, Hexagon (68j)
33
92990-08600-00
Washer (68j) (5 Per Pack)
34
6H1-11372-00-00
Nipple, Hose Flushing Kit (68j)
