Fuel pump drive gear Каталог оригинальных запчастей для лодочных моторов Yamaha VZ150TLRY (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Yamaha
2000
VZ150TLRY

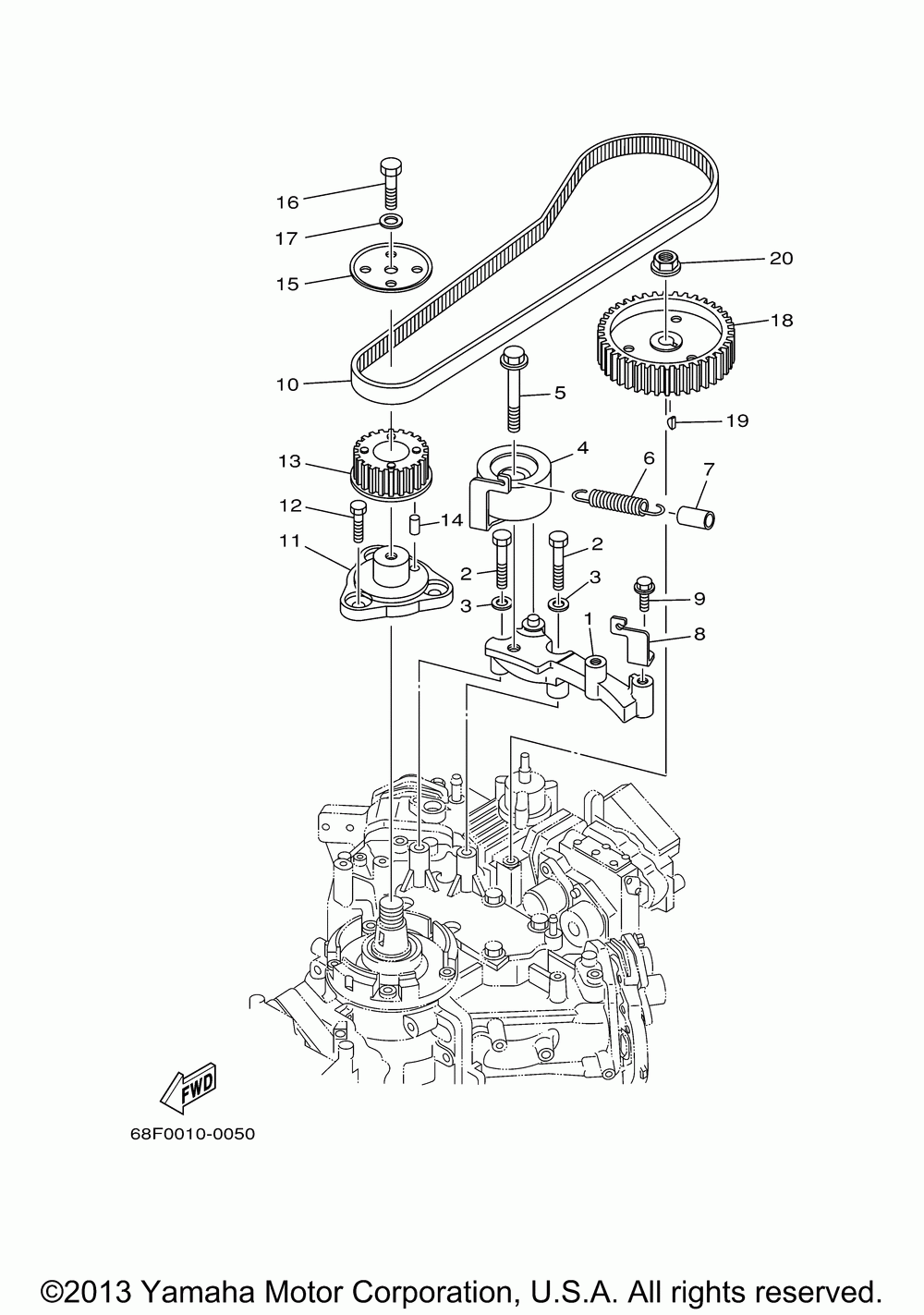

Fuel pump drive gear
Fuel pump drive gear

Fuel pump drive gear

Yamaha VZ150TLRY

Fuel pump drive gear

#

oem код

название

цена

1

68F-11598-00-00

Bracket, Tensioner (68j)

Bracket, Tensioner (68j)

2

Bolt (661) (68j)

Bolt (661) (68j)

3

Washer (68j) (5 Per Pack)

Washer (68j) (5 Per Pack)

4

68F-11590-00-00

Tensioner Assy (68j)

Tensioner Assy (68j)

5

Bolt, With Washer (68j) (5 Per Pack)

Bolt, With Washer (68j) (5 Per Pack)

6

Spring, Tension (68j)

Spring, Tension (68j)

7

Hose (l23) (68j)

Hose (l23) (68j)

8

68F-11595-00-00

Plate, Valve (68j)

Plate, Valve (68j)

9

Bolt (661) (68j)

Bolt (661) (68j)

10

68F-46241-00-00

V-belt (68j)

V-belt (68j)

11

68F-11579-01-00

Coupling, Flywheel (68j)

Coupling, Flywheel (68j)

12

Bolt (661) (68j)

Bolt (661) (68j)

13

68F-11536-00-94

Gear, Drive (68j)

Gear, Drive (68j)

14

Pin, Dowel (68j) (5 Per Pack)

Pin, Dowel (68j) (5 Per Pack)

15

60V-11557-00-00

Washer 1 (68j)

Washer 1 (68j)

16

Bolt (68j)

Bolt (68j)

17

Washer (68j) (5 Per Pack)

Washer (68j) (5 Per Pack)

18

68F-11537-00-94

Gear, Driven (68j)

Gear, Driven (68j)

19

Key, Woodruff (68j)

Key, Woodruff (68j)

20

Nut, Flange (68j)

Nut, Flange (68j)
