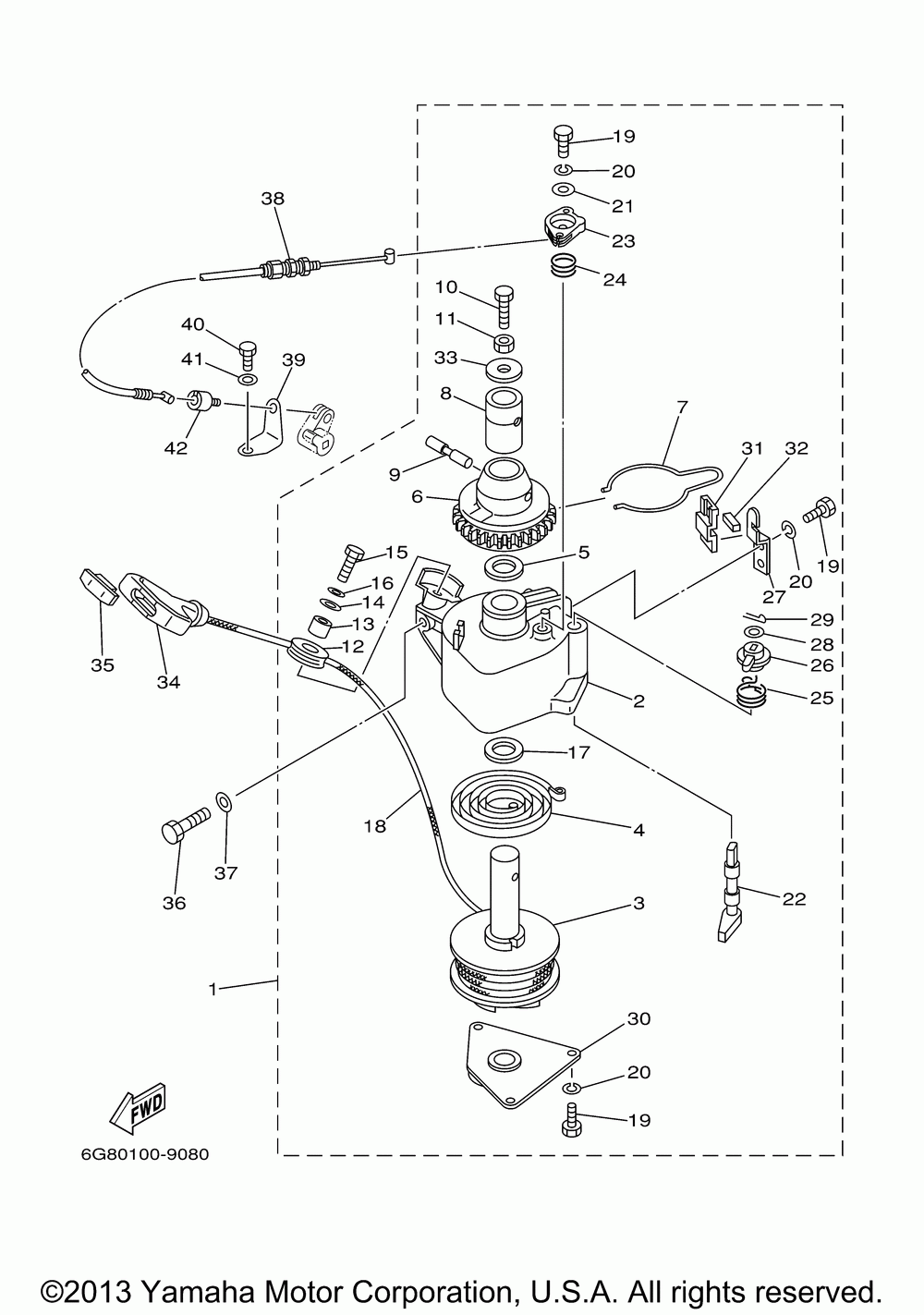

Starter t9.9mh

Yamaha T9.9ELHX/T9.9EXHX/T9.9EXRX/T9.9ELRX
Yamaha
#oem кодцена
1
6G8-15710-10-00
Starter Asy (m)
2
6G8-15711-00-00
Case, Starter (m)
3
6G8-15714-00-00
Drum, Sheave (m)
4
6G8-15713-00-00
Spring, Starter (m)
5
6G8-15719-00-00
Washer, Thrust (m)
6
6G8-15723-00-00
Pulley, Starter (m)
7
6G8-15715-00-00
Spring, Drive Plate (m)
8
6G8-15754-00-00
Bushing (m)
9
6G8-15727-00-00
Pin (m)
10
6G8-15768-00-00
Bolt (m)
11
95380-08700-00
Nut (m)
12
6F5-15752-00-00
Roller, Wire (m)
13
6F5-15753-00-00
Bush (m)
14
6F5-15791-00-00
Washer (m)
15
97017-06025-00
Bolt, Hexagon (m)
16
92995-06100-00
Washer (m) (5 Per Pack)
17
6G8-15739-00-00
Washer, Thrust (m)
18
90580-50M01-00
Starter Rope (m)
19
97013-05012-00
Bolt (661) (m)
20
92990-05100-00
Washer, Spring (m) (5 Per Pack)
21
6G8-15726-00-00
Washer, Flat (m)
22
6G8-15794-00-00
Stopper (m)
23
6G8-15746-00-00
Arm (m)
24
6G8-15767-00-00
Spring (m)
25
6G8-15734-00-00
Spring, Return (m)
26
6G8-15747-00-00
Link (m)
27
6G8-15716-00-00
Plate, Drive (m)
28
92990-06200-00
Washer (m) (5 Per Pack)
29
91490-16020-00
Pin, Cotter (m)
30
6G8-15712-00-00
Cover, Starter Case (m)
31
6G8-15779-00-00
Cover (m)
32
6G8-15789-00-00
Damper (m)
33
6G8-15742-00-00
Washer, Flat 1 (m)
34
6G1-15755-00-00
Handle, Starter (m)
35
689-15779-01-00
Cover (m)
36
97080-08030-00
Bolt (m)
37
92990-08600-00
Washer (m) (5 Per Pack)
38
6G8-15770-00-00
Cable Cmpl, Str Stp (m)
39
6G8-15771-00-00
Stay 1 (m)
40
97080-06012-00
Bolt (m)
41
92990-06600-00
Washer (m) (5 Per Pack)
42
6G8-15772-00-00
Stay 2 (m)
