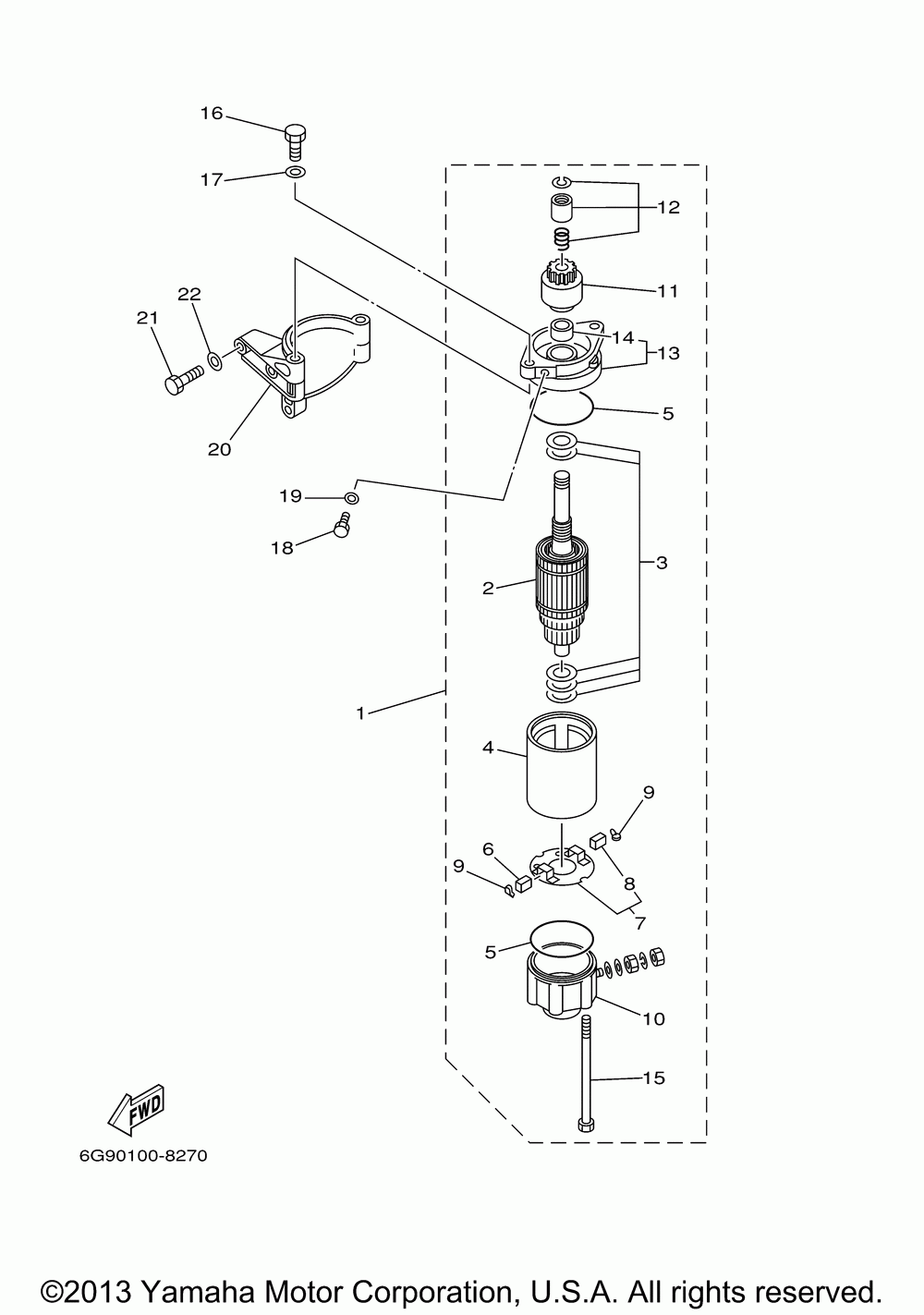

Yamaha T9.9ELHX/T9.9EXHX/T9.9EXRX/T9.9ELRX

Starting motor t9.9eh er

#

oem код

название

цена

1

6G8-81800-11-00

Starting Motor Asy (e)

Starting Motor Asy (e)

2

689-81850-12-00

Armature Asy (e)

Armature Asy (e)

3

689-81809-11-00

Washer Kit (e)

Washer Kit (e)

4

689-81810-11-00

Stator Asy (e)

Stator Asy (e)

5

689-81847-11-00

O-ring (e)

O-ring (e)

6

689-81811-11-00

Brush 1 (e)

Brush 1 (e)

7

689-81840-11-00

Brush Holder Asy (e)

Brush Holder Asy (e)

8

689-81812-11-00

Brush 2 (e)

Brush 2 (e)

9

689-81813-10-00

Spring, Brush (e)

Spring, Brush (e)

10

689-81820-11-00

Rear Bracket Asy (e)

Rear Bracket Asy (e)

11

689-81807-12-00

Pinion Asy (e)

Pinion Asy (e)

12

689-81857-11-00

Retainer (e)

Retainer (e)

13

6F5-81830-11-00

Front Cover Ass'y (e)

Front Cover Ass'y (e)

14

689-81831-00-00

Metal, Front (e)

Metal, Front (e)

15

689-81826-10-00

Bolt (e)

Bolt (e)

16

Bolt (e)

Bolt (e)

17

Washer (e) (5 Per Pack)

Washer (e) (5 Per Pack)

18

Bolt (e)

Bolt (e)

19

Washer (e) (5 Per Pack)

Washer (e) (5 Per Pack)

20

6G8-81822-40-00

Bracket, Starting (e)

Bracket, Starting (e)

21

Bolt (661) (e)

Bolt (661) (e)

22

Washer (e) (5 Per Pack)

Washer (e) (5 Per Pack)
