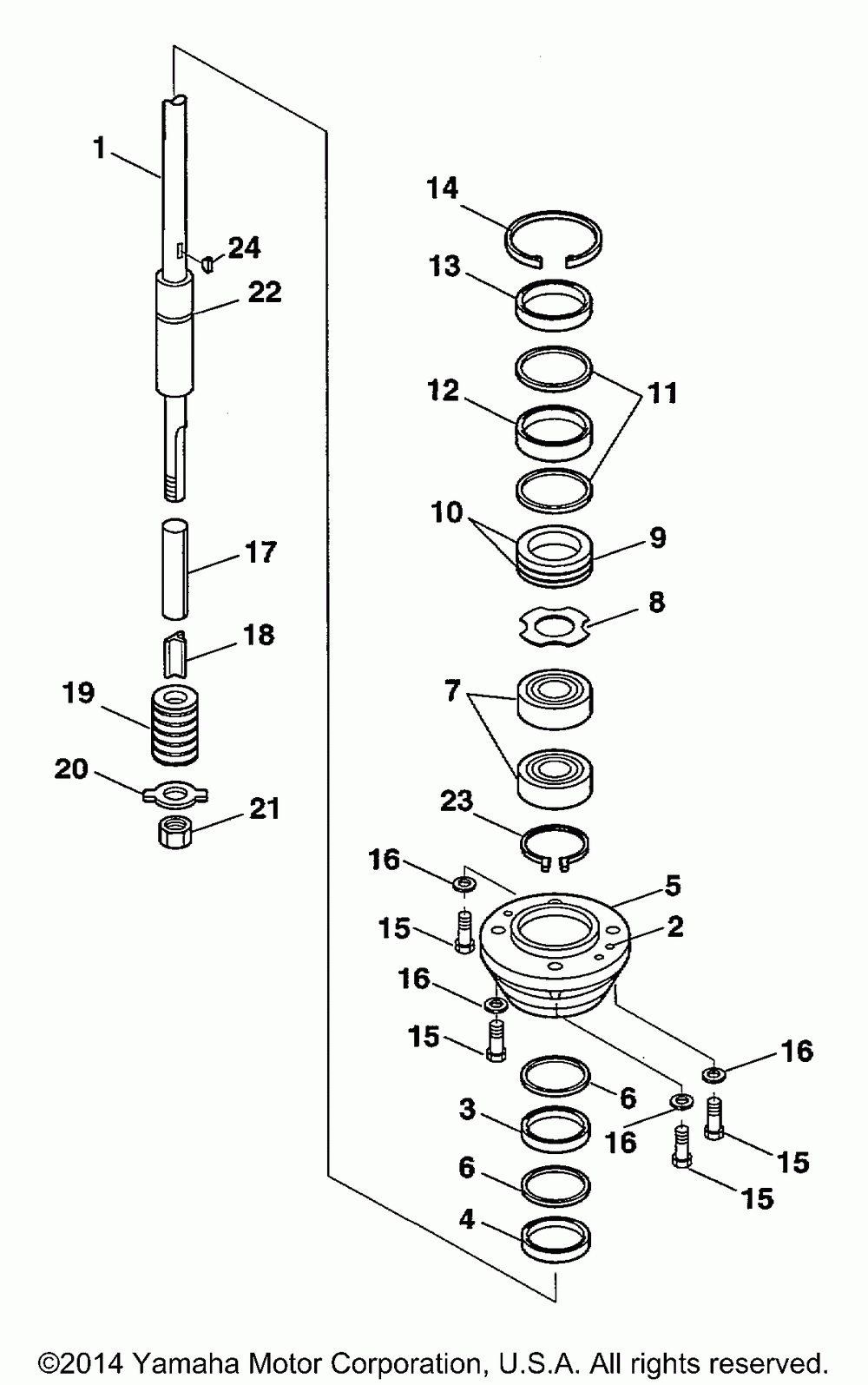

Drive up to serial 59499

Yamaha 115TJRV-PU/150TJRV-PU/90EJRV-PUM
Yamaha
#oem кодцена
1
6H1-JD009-68-00
Drvshft W/brg Carr 1 90 Hp Model
1
6E5-JD009-52-00
Drvshft W/brg Carr 1 115/200 Hp Model
1
6H1-JD009-67-00
Driveshaft 90 Hp Model
1
6G6-JD009-51-00
Driveshaft Only 115/200 Hp Model
2
6H1-JD003-93-00
Bearing Carr Assy 1/
3
6H4-JD005-06-00
Shaft Seal N472324 (n472324)
4
6H4-JD005-07-00
Shaft Seal, N6324s (n6324s)
5
6H4-JD005-21-00
O-ring-011
6
6H4-JD005-17-00
Retng.ring Spirolx
7
6H1-JD005-02-00
Bearing, Sng. Row (u7305b-ua)
8
6H1-JD004-04-00
Back-up Washer Dbl
9
6H1-JD004-32-00
Up Seal Carr.w/sls
10
6H1-JD005-27-00
Уплотнительное кольцо
11
6H4-JD005-17-00
Retng.ring Spirolx
12
6H4-JD005-06-00
Shaft Seal N472324 (n472324)
13
6H4-JD005-07-00
Shaft Seal, N6324s (n6324s)
14
6H1-JD005-13-00
Retaining Ring Tru
15
6H1-JD005-75-00
Bolt, 1/4-20x7/8"
16
6H4-JD006-38-00
Washer, Spr Loc 1/4
17
6H1-JD001-36-00
Shaft Sleeve, Implr
18
6H1-JD004-34-00
Tee Key
19
6H1-JD001-21-00
Shim Washer
20
6H1-JD007-81-00
Nut Keeper
21
6H1-JD001-22-10
Nut, Driveshaft
22
6H4-JD000-41-00
Shft.bear.thr.ring
23
6H4-JD005-11-00
Стопорное кольцо
24
90280-03024-00
Сегментная шпонка
