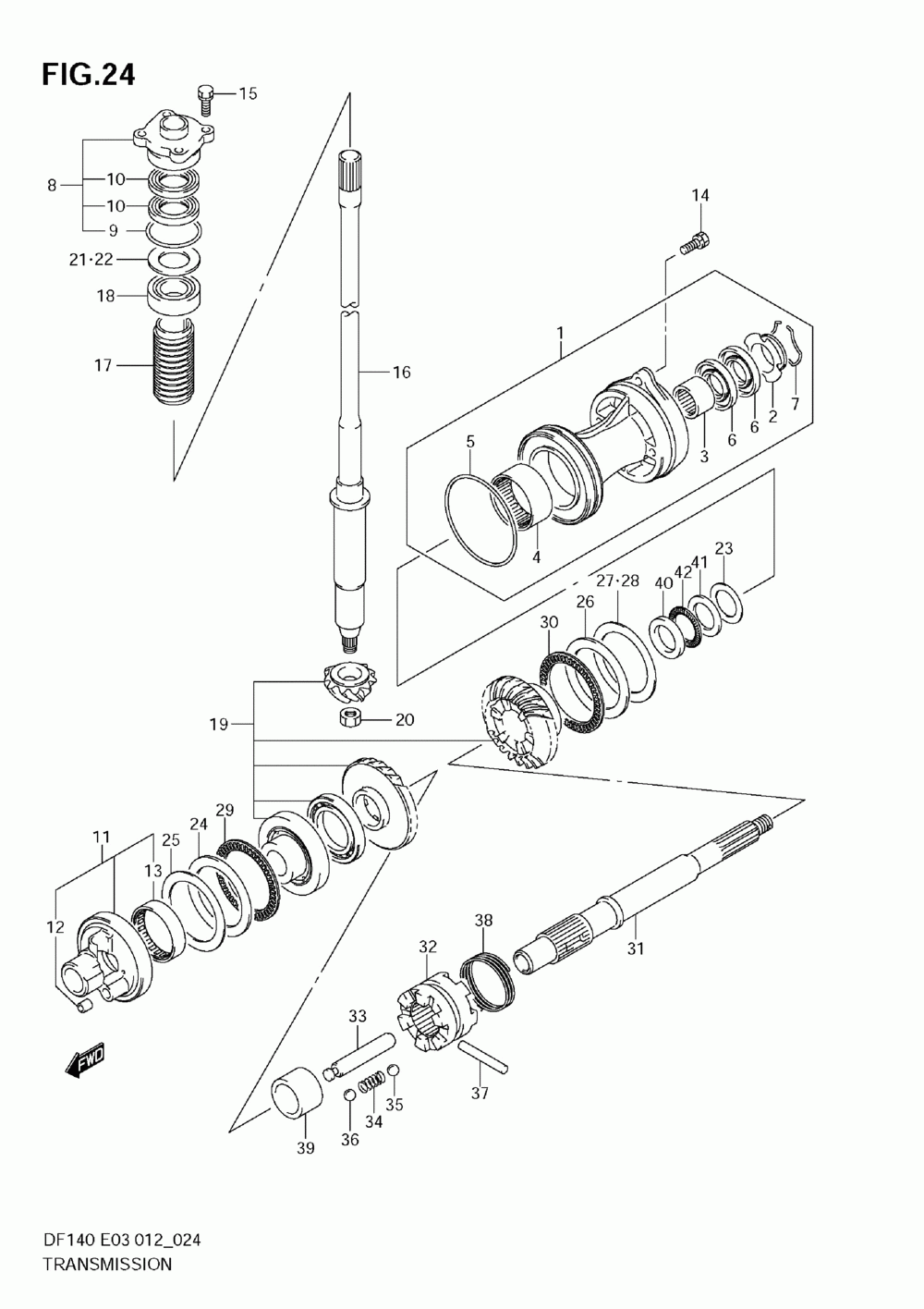

Transmission (df140z)
Transmission (df140z)

Transmission (df140z)

Suzuki Marine DF140 L2

Transmission (df140z)

#

oem код

название

цена

1

56120-92J12-0EP

Housing Comp, Pr

Housing Comp, Pr

2

Шайба

Шайба

3

Needle Brng 30x

Needle Brng 30x

4

Rn 50x62x25 Brg

Rn 50x62x25 Brg

5

Кольцо

Кольцо

6

Сальник

Сальник

7

Set Ring (sus)

Set Ring (sus)

8

Hsg Comp, Drive

Hsg Comp, Drive

9

O Ring D:3.5 Id

O Ring D:3.5 Id

10

Oil Seal 24x40x

Oil Seal 24x40x

11

Housing, Rev Gea

Housing, Rev Gea

12

Штифт

Штифт

13

Beearing 45x52x

Beearing 45x52x

14

Bolt, 8x30

Bolt, 8x30

15

Болт

Болт

16

Shaft, Drive(x)

Shaft, Drive(x)

17

Манжета

Манжета

18

Tapered 25x52x1

Tapered 25x52x1

19

Pinion / Gear S

Pinion / Gear S

20

Гайка

Гайка

21

Shim Set, Drive

Shim Set, Drive

24

Washer, 60x85x3 (rev Gear)

Washer, 60x85x3 (rev Gear)

26

Washer, Thrust F (fwd Gear)

Washer, Thrust F (fwd Gear)

27

Shim Set, Forwar (fwd Gear)

Shim Set, Forwar (fwd Gear)

29

Rc 60x85x3 Brg (rev)

Rc 60x85x3 Brg (rev)

30

Rc 70x95x4 Brg (fwd)

Rc 70x95x4 Brg (fwd)

31

Shaft Comp, Prop

Shaft Comp, Prop

32

Муфта сцепления

Муфта сцепления

33

Pin, Connector

Pin, Connector

34

Spring, Detent

Spring, Detent

35

Steel Ball 7/32 (no.1)

Steel Ball 7/32 (no.1)

36

Ball (no.2)

Ball (no.2)

37

Штифт

Штифт

38

Пружина

Пружина

39

Spacer, Clutch D

Spacer, Clutch D

40

Washer, 30x47x6. (prop Shaft Rev)

Washer, 30x47x6. (prop Shaft Rev)

41

Washer, 32x47x3 (prop Shaft Rev)

Washer, 32x47x3 (prop Shaft Rev)

42

Thrust Bearing (prop Shaft Rev)

Thrust Bearing (prop Shaft Rev)

22-1

Регулировочная прокладка

Регулировочная прокладка

22-2

Регулировочная прокладка

Регулировочная прокладка

22-3

Shim, 41x52x0.6

Shim, 41x52x0.6

22-4

Shim, 41x52x0.65

Shim, 41x52x0.65

22-5

Shim, 41x52x0.7

Shim, 41x52x0.7

22-6

Shim, 41x52x0.75

Shim, 41x52x0.75

22-7

Shim, T:0.8

Shim, T:0.8

22-8

Shim, 41x52x0.85

Shim, 41x52x0.85

22-9

Shim, 41x52x0.9

Shim, 41x52x0.9

23-1

Washer, 35x46x0. (prop Shaft Rev)

Washer, 35x46x0. (prop Shaft Rev)

23-2

Washer, 35x46x0. (prop Shaft Rev)

Washer, 35x46x0. (prop Shaft Rev)

23-3

Washer, 35x46x0. (prop Shaft Rev)

Washer, 35x46x0. (prop Shaft Rev)

23-4

Washer, 35x46x0. (prop Shaft Rev)

Washer, 35x46x0. (prop Shaft Rev)

23-5

Washer, 35x46x0. (prop Shaft Rev)

Washer, 35x46x0. (prop Shaft Rev)

23-6

Washer, 35x46x1. (prop Shaft Rev)

Washer, 35x46x1. (prop Shaft Rev)

23-7

Washer, 35x46x1. (prop Shaft Rev)

Washer, 35x46x1. (prop Shaft Rev)

23-8

Washer, 35x46x1. (prop Shaft Rev)

Washer, 35x46x1. (prop Shaft Rev)

23-9

Washer, 35x46x1. (prop Shaft Rev)

Washer, 35x46x1. (prop Shaft Rev)

25-1

Washer T 0.8

Washer T 0.8

25-2

Washer T 0.9

Washer T 0.9

25-3

Шайба

Шайба

25-4

Шайба

Шайба

25-5

Шайба

Шайба

25-6

Шайба

Шайба

25-7

Шайба

Шайба

28-1

Shim (fwd Gear)

Shim (fwd Gear)

28-2

Shim, Forward Ge (fwd Gear)

Shim, Forward Ge (fwd Gear)

28-3

Shim (fwd Gear)

Shim (fwd Gear)

28-4

Shim, Forward Ge (fwd Gear)

Shim, Forward Ge (fwd Gear)

28-5

Shim (fwd Gear)

Shim (fwd Gear)

28-6

Shim, Forward Ge (fwd Gear)

Shim, Forward Ge (fwd Gear)

28-7

Shim (fwd Gear)

Shim (fwd Gear)

28-8

Shim, Forward Ge (fwd Gear)

Shim, Forward Ge (fwd Gear)

28-9

Shim (fwd Gear)

Shim (fwd Gear)

22-10

Shim, 41x52x0.95

Shim, 41x52x0.95

22-11

Проставка 1.0

Проставка 1.0

22-12

Shim, 41x52x1.05

Shim, 41x52x1.05

22-13

Shim, 41x52x1.1

Shim, 41x52x1.1

22-14

Shim, 41x52x1.15

Shim, 41x52x1.15
