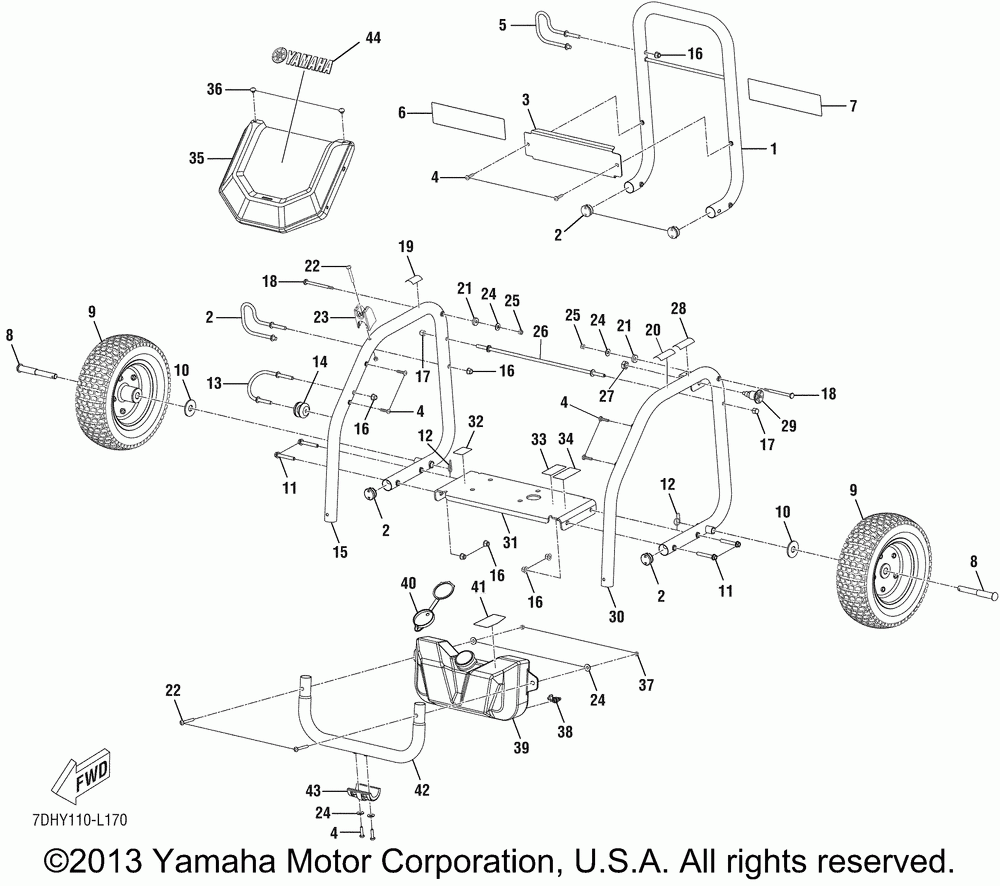

Frame assembly

Yamaha PRESSURE WASHER PW3028
Yamaha
#oem кодцена
1
7DH-R4223-00-00
Handle Comp. Incl. Ref. No. 2
2
7DH-R4230-00-00
Cap, Plastic Tube
3
7DH-R4675-00-00
Panel Front
4
7DH-R4543-00-00
Bolt, Torx 1
5
7DH-R4632-00-00
Holder, Trigger Han
6
7DH-R4271-00-00
Label, Performance
7
7DH-R4272-00-00
Label, Quick Start
8
7DH-R4634-00-00
Axle, Step
9
7DH-R4620-00-00
Wheel Comp. 1 (12 In.)
10
7DH-R4650-00-00
Washer, Plain 5 (5/8 In.)
11
7DH-R4547-00-00
Bolt, Flg. 1
12
7DH-R423D-00-00
Шплинт
13
7DH-R4633-00-00
D-ring, Wand Storag
14
7DH-R4661-00-00
D-ring, Rubber Donu
15
7DH-R4211-00-00
Frame Assy. 2 Incl. Ref. No. 2
16
7DH-R4549-00-00
Nut, Flg. 1
17
7DH-R4546-00-00
Nut, Cap 1
18
7DH-R4530-00-00
Pin, Connector 1 (1/4 In.)
19
7DH-R4273-00-00
Label, Lubricant
20
7DH-R4274-00-00
Label, Hot Surface
21
7DH-R4531-00-00
Spacer (od20 X Id8 X 4.5t)
22
7DH-R4544-00-00
Bolt, Torx 2
23
7DH-R423C-00-00
Holder, Lower Wand
24
7DH-R4251-00-00
Washer, Plain 2 (1/4 In.)
25
7DH-R454A-00-00
Nut, 3 (1/4-20)
26
7DH-R4234-00-00
Cross Bar, Wire For
27
7DH-R4542-00-00
Nut, 1 (1/2-20)
28
7DH-R4275-00-00
Label, Release Pin
29
7DH-R4213-00-00
Handle Lock Assy.
30
7DH-R4210-00-00
Frame Assy. 1 Incl. Ref. No. 2
31
7DH-R4232-00-00
Plate, Engine
32
7DH-R4276-00-00
Label, Add Oil
33
7DH-R4470-00-00
Label, Printed Data
34
7DH-R4277-00-00
Label, Danger
35
7DH-R423E-00-00
Face Plate
36
7DH-R4262-00-00
Cap, Rubber
37
7DH-R4545-00-00
Nut, 2 (m6)
38
7DH-R4263-00-00
Cover, Outlet
39
7DH-R4330-00-00
Soap Tank
40
7DH-R4331-00-00
Cap, Soap Tank W/ T
41
7DH-R427C-00-00
Label, Detergent Tan
42
7DH-R4212-00-00
Fr. Frame W/ Rubbe Incl. Ref. No. 24, 43 & 44
43
7DH-R4264-00-00
Rubber Foot
44
7DH-R4278-00-00
Label, Yamaha Logo
