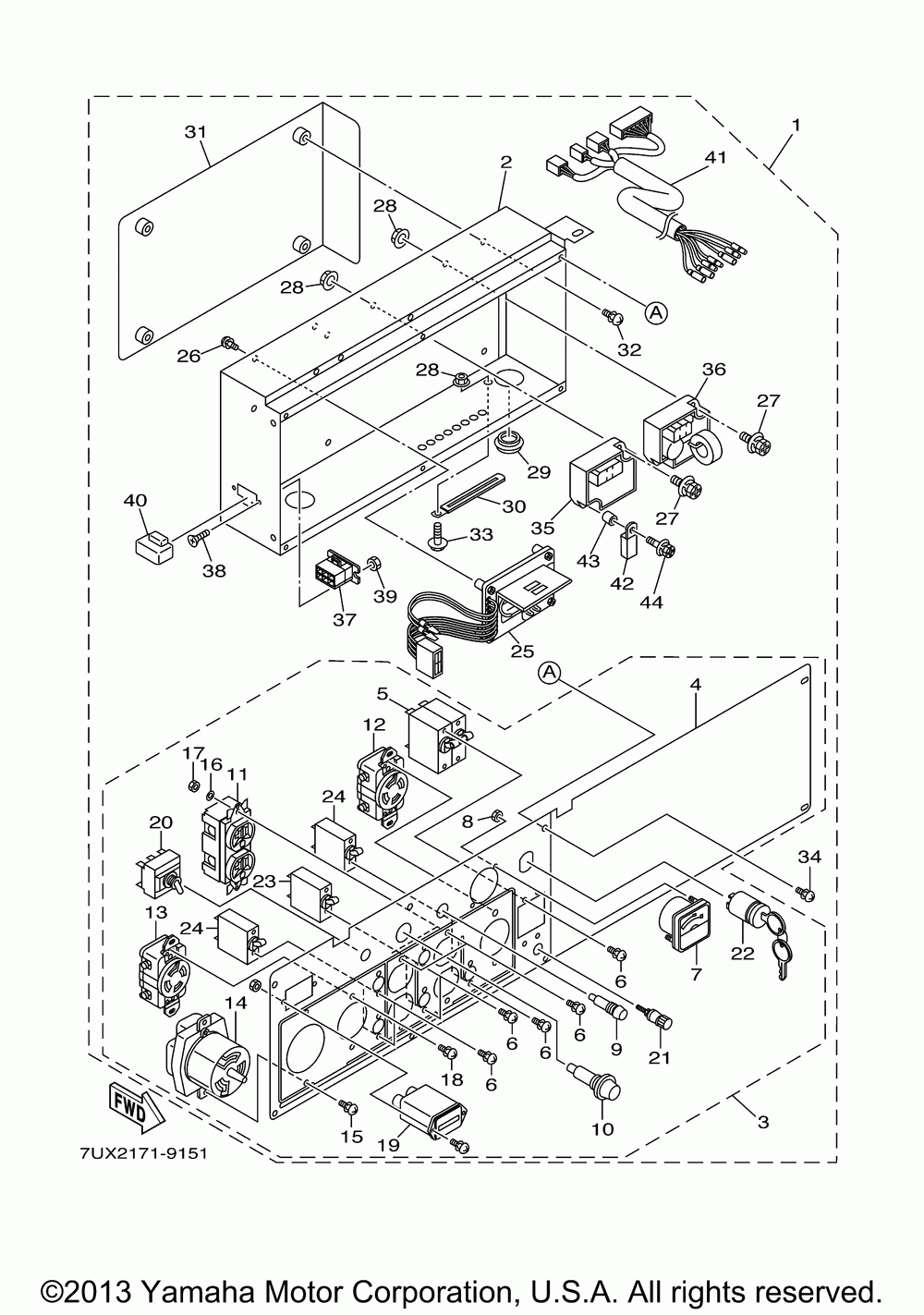

Control box

Yamaha 7UX3-0250148~ (EF12000DECA) EF12000DEC
Yamaha
#oem кодцена
2
YA3-1G730-02-01
Control Box Unit
5
YA3-1G750-02-03
No Fuse Breaker (2p- (2p-39a)
6
YA3-1B790-11-03
Screw W/washer Assy
7
YA3-91479-02-01
Ac Voltmeter (7ny3)
8
YA0-02170-30-00
Nut (m3)
9
YA3-1F750-16-03
Pilot Lamp (green)
10
YA3-93431-01-01
Lamp (oil) (oil) (red)
12
YA3-80457-49-08
Ac Receptacle (125v- (125v-30a)
13
YA3-1G750-17-03
Ac Receptacle (125/2
14
YA3-1G750-18-03
Ac Receptacle (125/2
15
YA3-51499-20-08
Screw W/washer Assy
16
YA0-03100-40-00
Washer (7ny3)
17
YA0-02170-40-00
Nut (m4) (7ny3) (m4)
18
YA3-1G750-15-03
Screw W/washer Assy
19
YA3-93406-51-08
Hour Meter
20
YA3-44456-15-08
Auto Idle Switch
21
YA3-53457-16-08
Terminal Bolt (7ny3)
22
YA0-66000-03-30
Key Switch
25
YA3-1G740-22-01
Avr Ass'y
26
YA3-92499-86-08
Bolt With Washer
27
YA0-04360-62-00
Screw W/washer Assy
28
YA0-02380-60-00
Flange Nut (m6) (m6)
29
YA0-24115-00-10
Уплотнитель резиновый
30
YA0-56600-02-50
Зажим
31
YA3-1G730-06-01
Пластина
32
YA3-66499-97-08
Screw W/washer Assy
33
YA0-11006-00-20
Flange Bolt (m6x12mm)
34
YA3-51499-20-08
Screw W/washer Assy
35
YAK-U3110-62-51
Ecu(o/s&r/c),comp. (o/s & R/c), Compl. To 250165
36
YAK-U3110-55-01
Idle Control Unit
37
YA3-53472-00-08
Connector(6p) (6p)
38
YA0-04350-41-00
Screw W/washer Assy
39
YA0-02170-40-00
Nut (m4) (7ny3) (m4)
40
YA3-1G495-01-03
Connector Cap
42
YA3-91483-01-01
Relay
43
YA0-23006-03-30
Проставка
44
YA0-04360-62-00
Screw W/washer Assy To 250165
44
YA0-01370-60-35
Screw From 250166
