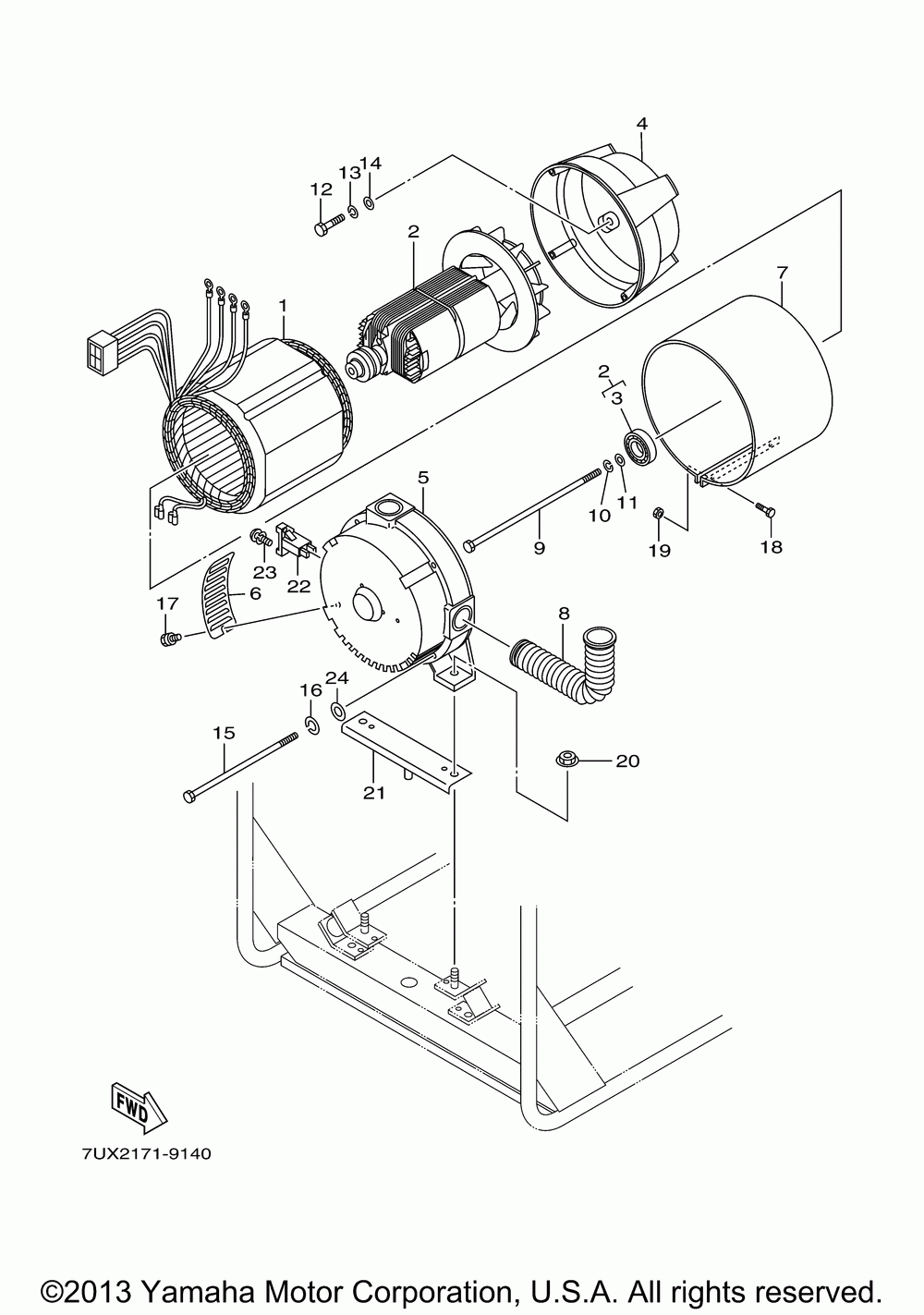

Генератор

Yamaha 7UX3-0250148~ (EF12000DECA) EF12000DEC
Yamaha
#oem кодцена
1
YA3-1G520-17-01
Stator, Compl.
2
YA3-1G520-01-01
Rotor, Compl.
3
YA3-33582-06-08
Bearing (6205zz)(7ny
4
YA3-1F530-01-03
Front Bracket (7ny3)
5
YA3-1G530-12-01
Rear Cover
6
YA3-1F540-04-01
Brush Cover (7ny3)
7
YA3-1F540-09-01
Stator Cover (7ny3
8
YA3-91290-00-13
Втулка
9
YA3-1F540-02-01
Through Bolt (un5/16 (5/16-24x265mm)
10
YA0-03200-80-00
Пружинная шайба
11
YA0-03100-80-00
Washer (7ny3)
12
YA3-1F540-01-01
Bolt (3/8-16x25mm) (3/8-16x25mm)
13
YA0-03201-00-00
Пружинная шайба
14
YA0-03101-00-00
Шайба
15
YA3-65580-06-08
Cover Bolt (7ny3) (m8x220mm)
16
YA0-03200-80-00
Пружинная шайба
17
YA3-56599-53-08
Bolt W/washer Assy (m5x12mm)
18
YA3-1F540-05-01
Bolt (7ny3) (m4x18mm)
19
YA0-02170-40-00
Nut (m4) (7ny3) (m4)
20
YA0-02381-00-00
Flange Nut (m10) (m10)
21
YA0-01661-04-00
Bolt (m10x40mm)
22
YA3-1H540-02-01
Brush Holder, Compl.
23
YA3-1G620-01-01
Screw And Washer (m5 (m5x20mm)
24
YA0-03100-80-00
Washer (7ny3)
