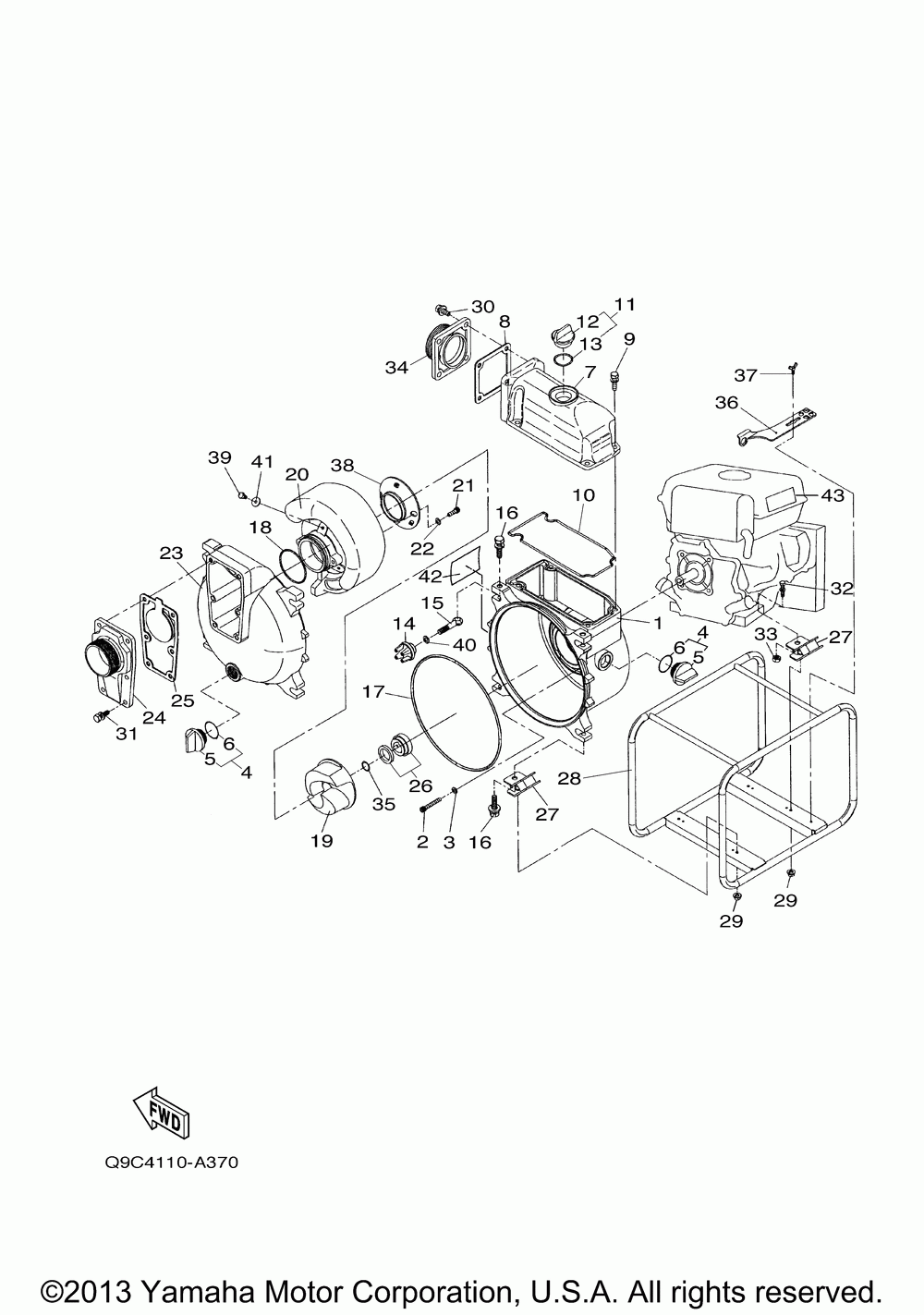

Water pump 1 yp20ta

Yamaha G9C4-0400126~_YP30TA Q9C5-500201~ YP40TA Q9C6-6001 YP20TA/YP40TA/YP30TA
Yamaha
#oem кодцена
1
YJA-01165-84-01
Body, Pump (kth-50x (kth-50x)
2
YJA-01165-17-01
Bolt, Flange Socket
3
YJA-01164-93-01
Шайба
4
YJA-01180-79-01
Plug Assy (25a) (25a)
5
YJA-01101-69-04
Plug, Drain (7rp1)
6
YJA-88985-50-32
Уплотнительное кольцо
7
YJA-01154-45-02
Body, Outlet (kth-50 (kth-50x)
8
YJA-01154-90-01
Flange Packing, Outl (kth-50)
9
YJA-74311-90-63
Bolt (7rp1)
10
YJA-01155-48-01
Head Packing (kth-80 (kth-80x)
11
YJA-01184-50-01
Plug Set
12
YJA-01134-05-01
Plug (32a) (32a)
13
YJA-88985-50-40
Уплотнительное кольцо
14
YJA-01155-90-01
Knob (kth-80x) (kth-80x)
15
YJA-01155-80-01
Cover Bolt (kth-80x) (kth-80x)
16
YJA-74311-90-83
Bolt, Hexagon With W
17
YJA-01155-79-01
Front Cover Packing (kth-80x)
18
YJA-01156-76-01
O-ring (kth-80x) (kth-80x)
19
YJA-01154-47-02
Impeller (kth-50x) (kth-50x)
20
YJA-01161-63-03
Housing, Impeller (w (wt20t)
21
YJA-73450-50-66
Bolt, Hexagon With W
22
YJA-85425-50-08
Washer, Seal (7rn1)
23
YJA-01158-82-01
Front Cover (kth-80x (kth-80x)
24
YJA-01154-92-01
Flange, Inlet (npt) (npt)
25
YJA-01157-80-01
Valve Packing (kth-5 (kth-50x)
26
YJA-01151-59-01
Mechanical Seal (seh (seh-50t)
27
YJA-01161-72-01
Rubber, Silent Block (wt)
28
YJA-01177-91-01
Frame Assy (kta-80x- (kta-80x-bab)
29
YJA-84231-90-08
Spring Nut (m8) (m8)
30
YJA-74311-90-46
Hexagon Bolt (m8x22) (m8x22)
31
YJA-74311-90-61
Bolt (7rp1)
32
YJA-74311-90-51
Bolt (7rp1)
33
YJA-83871-90-08
Гайка
34
YJA-01154-44-01
Flange, Outlet (kth- (kta-50x) (npt)
35
YJA-01104-91-02
Adjusting Washer (se (seh-80) Un
36
YJA-01157-78-02
Tools (kth-50x) (kth-50x)
37
YJA-74130-51-53
Болт
38
YJA-01160-85-02
Wear Plate (wt20x) (wt20x)
39
YJA-74310-50-30
Bolt, Hexagon With W
40
YJA-84621-10-14
Шайба
41
YJA-01161-73-01
Washer, Plate (kth) (kth)
42
YJA-01166-98-01
Plate, Name (yp20ta) (yp20ta)
43
YJA-01166-92-01
Emblem (trash Pump) (trash Pump)
