Water pump 2 yp30ta Оригинальные запчасти для генераторов Yamaha G9C4-0400126~_YP30TA Q9C5-500201~ YP40TA Q9C6-6001 YP20TA/YP40TA/YP30TA (2000)

Water pump 2 yp30ta

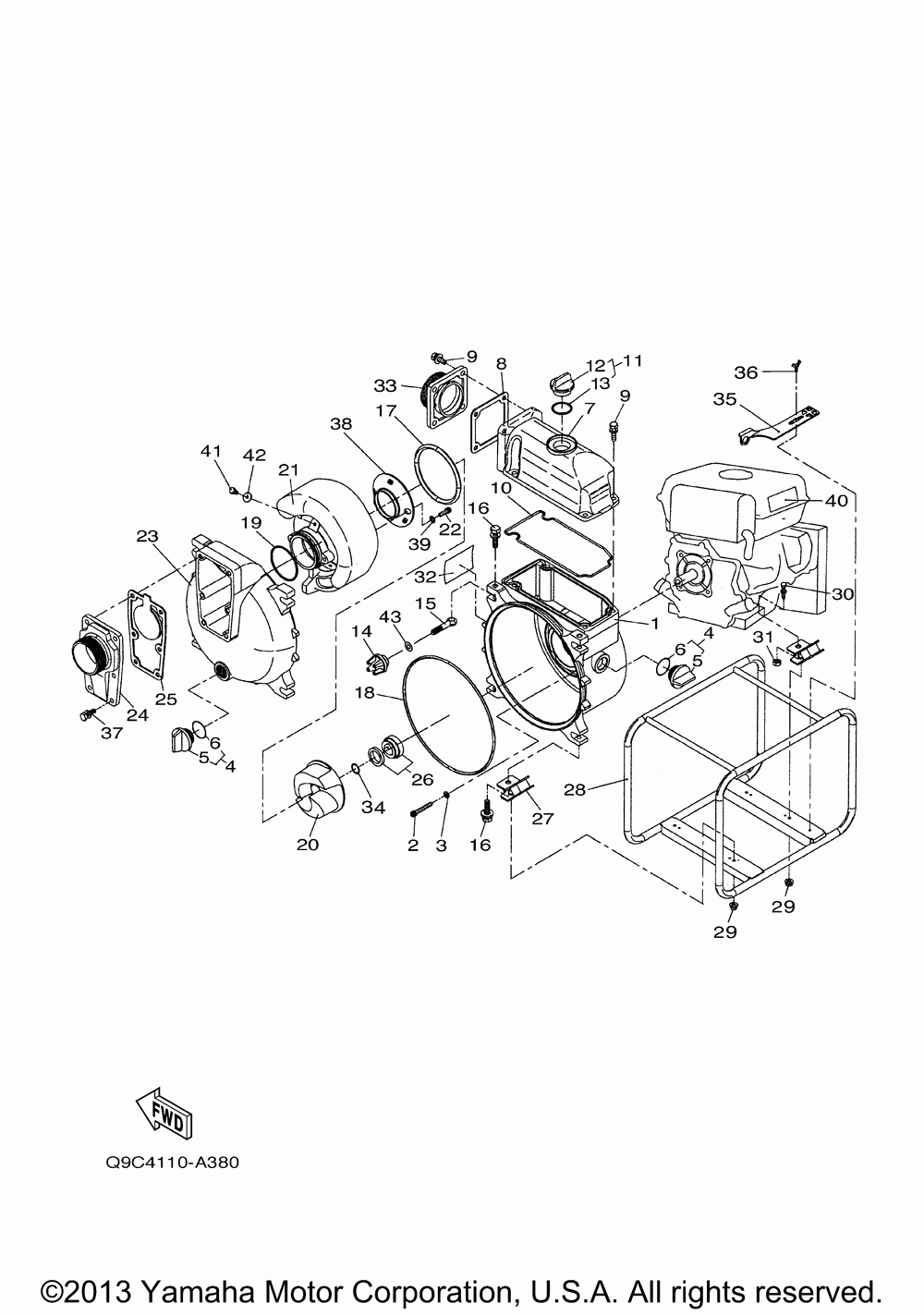

Yamaha G9C4-0400126~_YP30TA Q9C5-500201~ YP40TA Q9C6-6001 YP20TA/YP40TA/YP30TA

oem код

название

цена

YJA-01155-46-04

Body, Pump (kth-80x) (kth-80x)

YJA-01165-16-01

Bolt, Flange Socket

YJA-01164-93-01

Шайба

YJA-01180-79-01

Plug Assy (25a) (25a)

YJA-01101-69-04

Plug, Drain (7rp1)

YJA-88985-50-32

Уплотнительное кольцо

YJA-01155-47-02

Body, Outlet (kth-80 (kth-80x)

YJA-01105-84-02

Gasket, Hose Joint (7rp1)

YJA-74311-90-63

Bolt (7rp1)

YJA-01155-48-01

Head Packing (kth-80 (kth-80x)

YJA-01184-50-01

Plug Set

YJA-01134-05-01

Plug (32a) (32a)

YJA-88985-50-40

Уплотнительное кольцо

YJA-01155-90-01

Knob (kth-80x) (kth-80x)

YJA-01155-80-01

Cover Bolt (kth-80x) (kth-80x)

YJA-74311-90-83

Bolt, Hexagon With W

YJA-01155-78-01

Packing, Case (kth-8 (kth-80x)

YJA-01155-79-01

Front Cover Packing (kth-80x)

YJA-01156-76-01

O-ring (kth-80x) (kth-80x)

YJA-01155-58-03

Impeller (kth-80x) (kth-80x)

YJA-01161-64-03

Housing, Impeller (w (wt30x)

YJA-73450-50-66

Bolt, Hexagon With W

YJA-01158-82-01

Front Cover (kth-80x (kth-80x)

YJA-01113-60-03

Flange, Inlet (se-80 (se-80l) (npt)

YJA-01156-92-01

Valve Packing (kth-8 (kth-80x)

YJA-01156-78-01

Mechanical Seal (kth (kth-80x)

YJA-01161-72-01

Rubber, Silent Block (wt)

YJA-01177-67-01

Frame Assy (kta-80x- (kta-80x-bab)

Spring Nut (m8) (m8)

Bolt, Hexagon With W

Гайка

Flange, Outlet (kth- (kth-80x) (npt)

YJA-01100-81-01

Adjusting Washer (su (su-80l) Un

YJA-01157-67-02

Tools (kth-80x) (kth-80x)

YJA-74130-51-53

Болт

YJA-74311-90-61

Bolt (7rp1)

YJA-01160-86-02

Wear Plate (wt30x) (wt30x)

YJA-85425-50-08

Washer, Seal (7rn1)

YJA-01166-92-01

Emblem (trash Pump) (trash Pump)

YJA-74310-50-30

Bolt, Hexagon With W

YJA-01161-73-01

Washer, Plate (kth) (kth)

YJA-84621-10-14

Шайба
