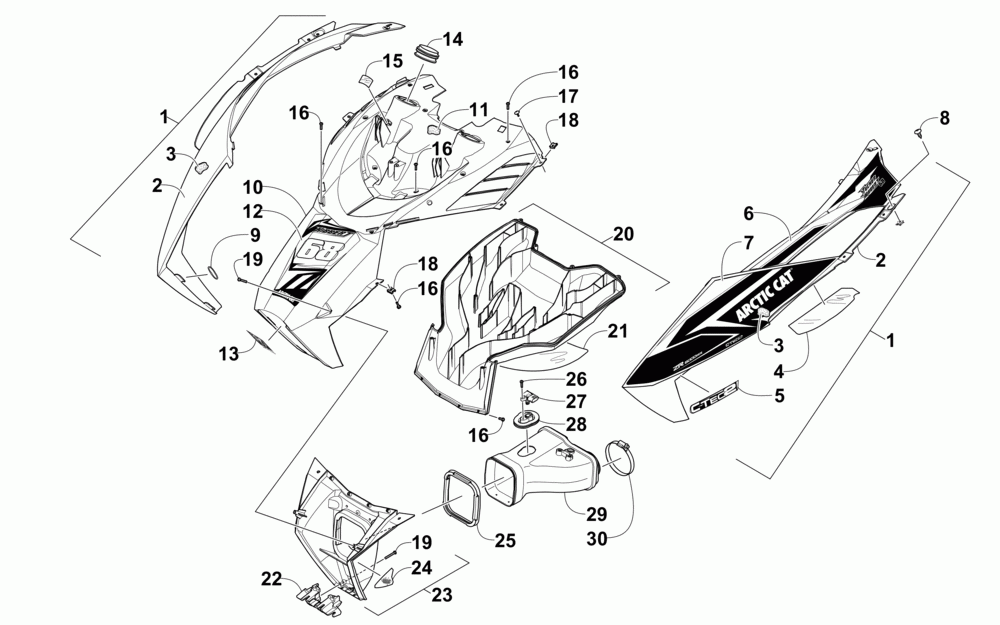

Капот и воздуховоды

Arctic Cat ZR 6000 TUCKER HIBBERT RR BLACK
Arctic Cat
#oem кодцена
2
3718-588
Hood, W/foam-rh-blk (inc. 3)
2
3718-589
Hood, W/foam-lh-blk (inc. 3-4)
3
0617-647
Foam, Hood-lh
3
0617-646
Foam, Hood-rh
4
6606-407
Foil, Protective-hood-lh
5
0621-906
Decal, Hood-"ctec2"
8
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
9
1623-960
O-ring, 1 1/16 Id X 1 1/4 Od (4 Per Pack)
10
5706-356
Plenum, Intake-upper W/foam (inc. 11)
11
0617-648
Foam, Plenum Intake 800
12
2621-204
Decal, Plenum-upr "68"
13
2621-205
Decal, Plenum-lwr
14
6606-386
Seal, Upper Plenum
15
2606-007
Протектор (4 шт в упаковке)
16
1623-933
Screw, Plastite-txspnh 10-14x3/4 Z&b (6 Per Pack)
17
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
18
1623-939
Nut, Speed-#10 B "u" Type (2 Per Pack)
19
1623-929
Screw, Plastite-txspnh 10-14x1 1/2 Z&b (4 Per Pack)
20
5706-358
Plenum, Intake-lower Rear W/foil (inc. 21)
21
6606-406
Foil, Protective-plenum
22
6606-822
Retainer, Lower Plenum
23
5706-990
Plenum, Air Intake-lwr Frt-w/reflector (inc. 24)
24
0621-989
Decal, Reflector-amber
25
0617-624
Seal, Air Silencer
26
2623-016
Screw, Self Tap-tspnh 10-16x7/8 Type A Ss (2 Per Pack)
27
0824-052
Sensor, T-map
28
2670-444
Boot, T-map Sensor
29
1770-056
Boot, Extension-efi Assy
30
0423-018
Clamp, Hose-worm (norma 60-80)
