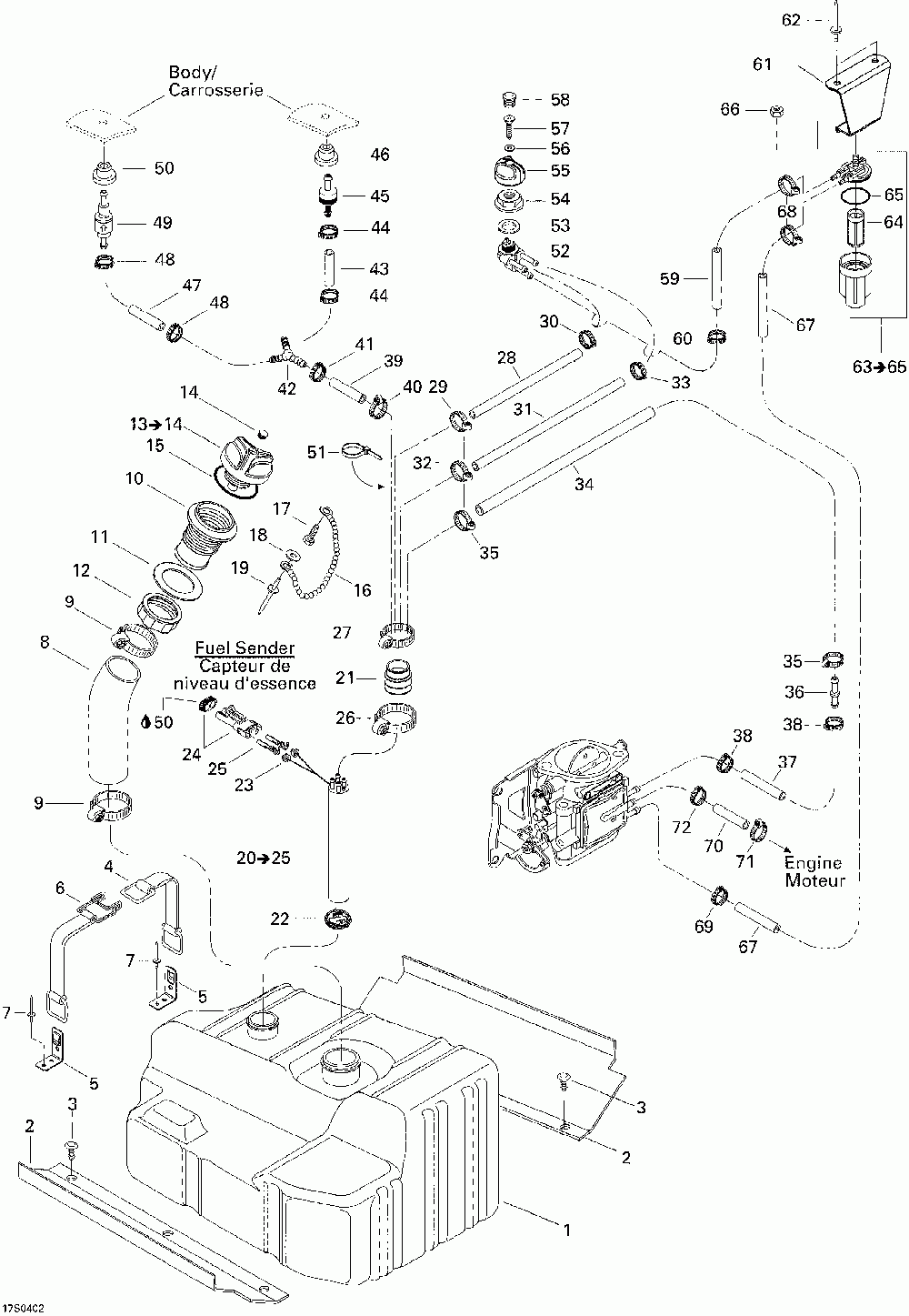

Топливная система

Sea-Doo (Bombardier) GTI
Sea-Doo (Bombardier)
#oem кодцена
1
275500291
Бак топливный
2
293830077
Прокладка резиновая
3
293730006
Dard Noir *dart-black (5.000 Per Pack)
4
293850036
Ремень крепления бака
5
293850076
Pince Courroie *clip-strap 90
6
293850038
Sangle Res.ess.*strap-tank Fue
7
293150037
Rivet Avdel *rivet-avdel 3/16 (10.000 Per Pack)
8
275500520
Boyau Remplis. *hose-fil.neck
9
293650023
Bride Serrage *clamp-tridon (5.000 Per Pack)
10
275500231
Заливная горловина
11
293250029
Прокладка
12
211100012
Гайка
13
275500430
Bouchon Ess.sub*cap-fuel Sub.
14
293000034
Capuchon Press.*cap-snap Black (5.000 Per Pack)
15
293250211
Прокладка
16
275500518
Chaine Bouchon *chain-cap Fuel
17
241140060
Screw-pt.hex.flange K40 X 10 (5.000 Per Pack)
18
234032600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
19
390407900
Rivet-pop 1/8 *rivet-pop 1/8 (50.000 Per Pack)
20
275500470
Chicane Triage *baffle-pick Up Includes Items 20 To 25
21
275500111
Соеденитель трубы
22
275500397
Фильтр топливный
23
278000218
Joint De Fil *seal-wire (10.000 Per Pack)
24
278000220
Bloc 2 Circ.mal*housing-tab(m)
25
278000223
Cosse Femelle *terminal-femal (5.000 Per Pack)
26
293650023
Bride Serrage *clamp-tridon (5.000 Per Pack)
27
293650035
Bride Serrage *clamp-tridon (5.000 Per Pack)
28
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
29
293650170
Collet A Vis *gear Clamp (10.000 Per Pack)
30
293650042
Collet A Sertir*crimp Clamp (5.000 Per Pack)
31
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
32
293650170
Collet A Vis *gear Clamp (10.000 Per Pack)
33
293650042
Collet A Sertir*crimp Clamp (5.000 Per Pack)
34
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
35
293650170
Collet A Vis *gear Clamp (10.000 Per Pack)
36
293710039
Фитинг шланга
37
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
38
293650050
Bride Serrage *clamp-clic (5.000 Per Pack)
39
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
40
293650170
Collet A Vis *gear Clamp (10.000 Per Pack)
41
293650050
Bride Serrage *clamp-clic (5.000 Per Pack)
42
293710059
Тройник
43
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
44
293650050
Bride Serrage *clamp-clic (5.000 Per Pack)
45
275500398
Клапан
46
293720029
Passe-fils *grommet (5.000 Per Pack)
47
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
48
293650050
Bride Serrage *clamp-clic (5.000 Per Pack)
49
275500479
Клапан
50
293720029
Passe-fils *grommet (5.000 Per Pack)
51
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
52
275500098
Клапан топливный
53
293250004
Joint Etanche *gasket (5.000 Per Pack)
54
212100009
Nut-hex.plastic (10.000 Per Pack)
55
275500263
Рукоятка топливного клапана
56
234040600
Washer-flat Din.433a2 (10.000 Per Pack)
57
208640860
Screw-pan Hd.ph.din.7985a-a2 (5.000 Per Pack)
58
275500241
Bouchon Bouton *plug-cap Fuel Valve (5.000 Per Pack)
59
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
60
293650042
Collet A Sertir*crimp Clamp (5.000 Per Pack)
61
275500287
Support Filtre *support-filter
62
293150043
Rivet-pop 3/16 *rivet-pop 3/16 (5.000 Per Pack)
63
275500088
Filtre Ess.ass.*filter-fuel As Includes Items 63 To 65
64
275500089
Filtre Essence *filter-fuel (5.000 Per Pack)
65
275500090
Кольцо
66
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
67
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
68
293650170
Collet A Vis *gear Clamp (10.000 Per Pack)
69
293650050
Bride Serrage *clamp-clic (5.000 Per Pack)
70
275500549
Boyau 1/4 *hose-1/4 (10.000 Per Pack)
71
293650170
Collet A Vis *gear Clamp (10.000 Per Pack)
72
293650050
Bride Serrage *clamp-clic (5.000 Per Pack)
