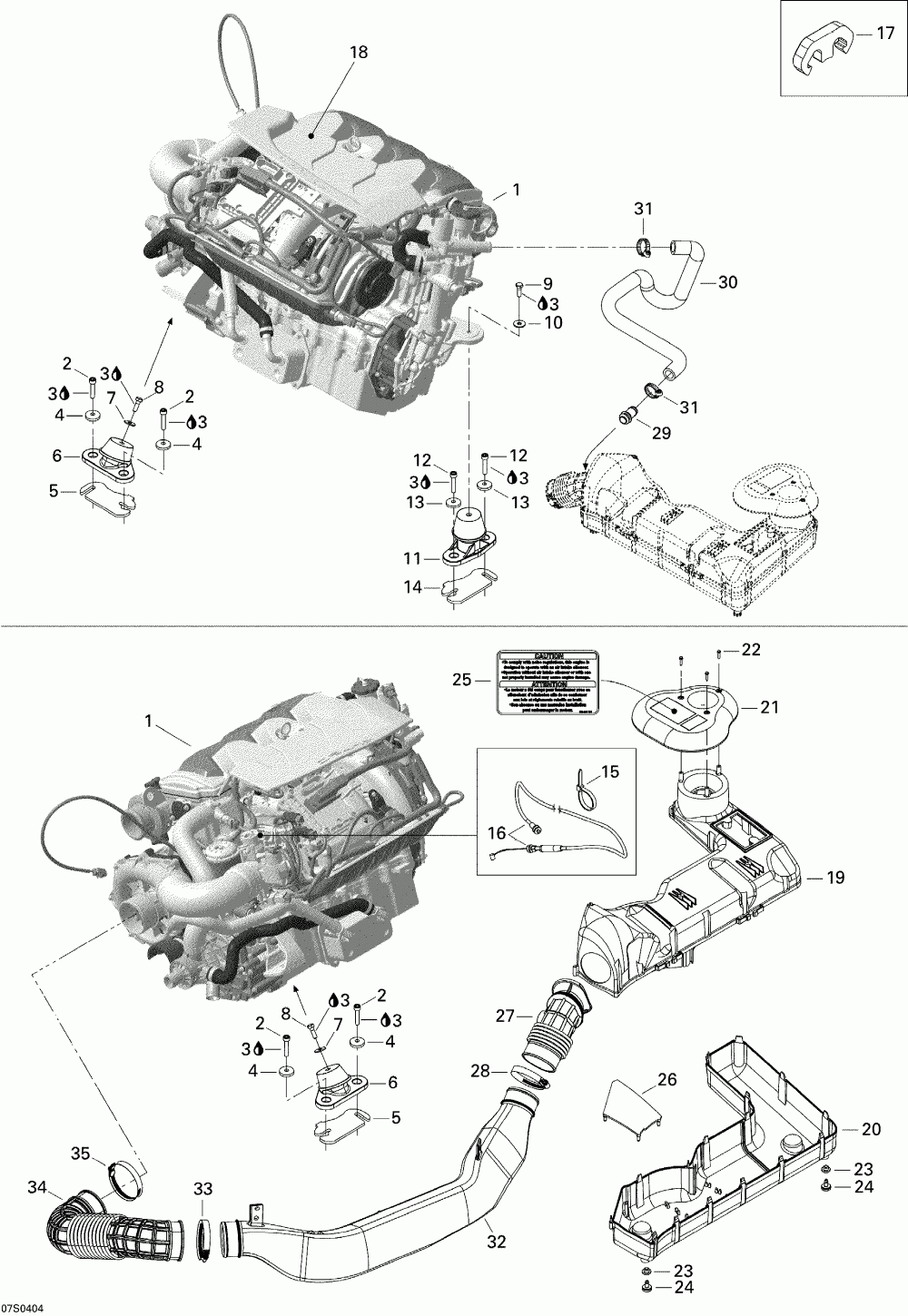

01- engine support and air intake

Sea-Doo (Bombardier) GTX 4-TEC, Supercharged
Sea-Doo (Bombardier)
#oem кодцена
270000762
Cale Epaisseur *shim-1.3mm.
1
295501044
Oil Separator Vent Hose Kit
2
205084060
Screw-socket Hd.din.912a2 (5.000 Per Pack)
3
293800060
Клей loctite-243
4
250200018
Rondelle Coniq.*washer-cone (2.000 Per Pack)
5
270000445
Cale Epaisseur *shim-0.3mm (10.000 Per Pack)
6
270000882
Опора крепления
7
234082600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
8
207182560
Screw-hex.cap Din.933a2 (5.000 Per Pack)
9
207182560
Screw-hex.cap Din.933a2 (5.000 Per Pack)
10
234082600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
11
270000885
Опора двигателя
12
205084060
Screw-socket Hd.din.912a2 (5.000 Per Pack)
13
250200018
Rondelle Coniq.*washer-cone (2.000 Per Pack)
14
270000445
Cale Epaisseur *shim-0.3mm (10.000 Per Pack)
15
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
16
277001121
Трос газа
17
277000279
Patte Verrouil.*lock-tab (5.000 Per Pack)
18
270000677
Couvercle Ass`e*cover Ass`y
19
273000222
Silencieux Adm.*silenc-air Upp
20
273000190
Silencieux Adm.*silenc-air Low
21
273000256
Крышка
22
241141660
Screw-pt.hex.flange K40 X 16 (5.000 Per Pack)
23
293720064
Passe-fils *grommet (6.000 Per Pack)
24
275500454
Клапан
25
516002715
Наклейка
26
273000206
Deflecteur .*deflector
27
273000186
Boyau Admission*intake Hose
28
293650064
Хомут
29
273000234
Сапун
30
275500566
Boyau Forme *formed Hose
31
293650051
Collet A Vis *gear Clamp (5.000 Per Pack)
32
273000214
Boyau Admission*intake Hose
33
293650179
Хомут
34
273000188
Шланг - впускной
35
293650179
Хомут
