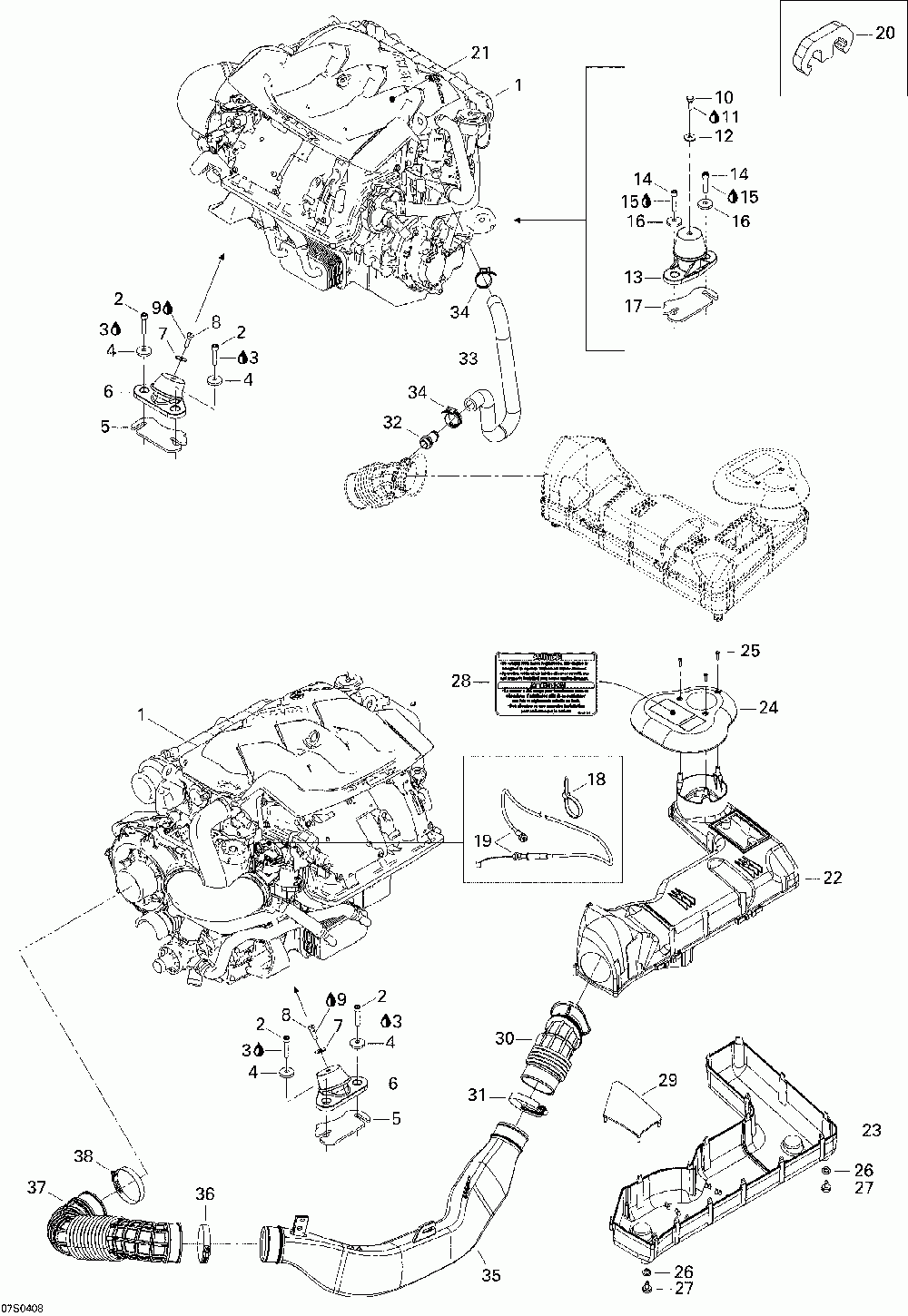

01- engine support and air intake

Sea-Doo (Bombardier) RXP
Sea-Doo (Bombardier)
#oem кодцена
1
270000570
Moteur *engine-1503
2
205084060
Screw-socket Hd.din.912a2 (5.000 Per Pack)
3
293800060
Клей loctite-243
4
250200018
Rondelle Coniq.*washer-cone (2.000 Per Pack)
5
270000445
Cale Epaisseur *shim-0.3mm (10.000 Per Pack)
5
270000762
Cale Epaisseur *shim-1.3mm.
6
270000882
Опора крепления
7
234082600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
8
207182560
Screw-hex.cap Din.933a2 (5.000 Per Pack)
9
293800060
Клей loctite-243
10
207182560
Screw-hex.cap Din.933a2 (5.000 Per Pack)
11
293800060
Клей loctite-243
12
234082600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
13
270000885
Опора двигателя
14
205084060
Screw-socket Hd.din.912a2 (5.000 Per Pack)
15
293800060
Клей loctite-243
16
250200018
Rondelle Coniq.*washer-cone (2.000 Per Pack)
17
270000445
Cale Epaisseur *shim-0.3mm (10.000 Per Pack)
17
270000762
Cale Epaisseur *shim-1.3mm.
18
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
19
277001070
Трос газа
20
277000279
Patte Verrouil.*lock-tab (5.000 Per Pack)
21
270000677
Couvercle Ass`e*cover Ass`y
22
273000222
Silencieux Adm.*silenc-air Upp
23
273000190
Silencieux Adm.*silenc-air Low
24
273000256
Крышка
25
241141660
Screw-pt.hex.flange K40 X 16 (5.000 Per Pack)
26
293720064
Passe-fils *grommet (6.000 Per Pack)
27
275500454
Клапан
28
516002715
Наклейка
29
273000206
Deflecteur .*deflector
30
273000186
Boyau Admission*intake Hose
31
293650064
Хомут
32
273000234
Сапун
33
275500604
Шланг сформированный
34
293650051
Collet A Vis *gear Clamp (5.000 Per Pack)
35
270000740
Boyau Admission*intake Hose
36
293650179
Хомут
37
273000188
Шланг - впускной
38
293650179
Хомут
