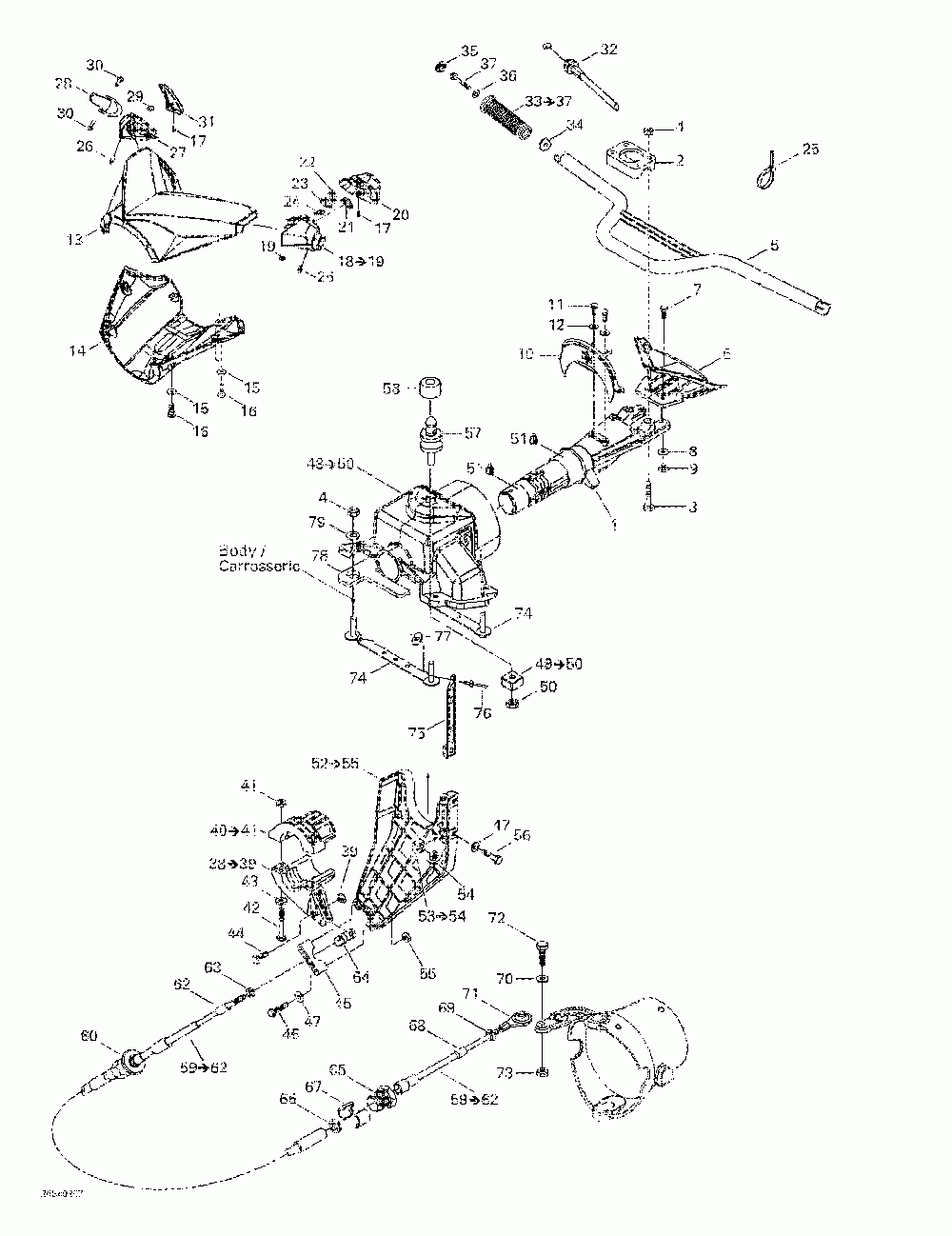

Рулевая система

Sea-Doo (Bombardier) GTX DI, 5563/5564/5595/5596
Sea-Doo (Bombardier)
#oem кодцена
277001078
Tampon Guidon *pad-handle Gtx Di 5595/5596.
1
277000562400
Tige Direction *stem-steering
2
277000142
Крепеж руля
3
207085060
Screw-hex.cap Din.931a2 (5.000 Per Pack)
4
232581600
Nut-stop Elastic Din.985a2 (5.000 Per Pack)
5
277001454
Guidon Soude *bar-handle
6
277000950
Tampon Guidon *pad-handle Gtx Di 5563/5564.
7
207063060
Screw-hex.cap Din.931a2 (5.000 Per Pack)
8
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
9
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
10
277000549
Plaque Mar.noir*plate-mar.blac
11
211000036
Screw-forming Hex.hd. (5.000 Per Pack)
12
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
13
277000952
Couvre Guidon *cover-stee.sup
14
277000953
Couvre Guidon *cover-stee.inf.
15
234051600
Washer-flat Din.125a-a2 (10.000 Per Pack)
16
241141660
Screw-pt.hex.flange K40 X 16 (5.000 Per Pack)
17
209630960
Screw-tapp.pan Hd.ph.din.7981c-a2 (5.000 Per Pack)
18
277001481
Logement Ass. *housing-ass Y Includes 18 - 19.
19
232860600
Nut-square Thin M6 Din.562a2 (10.000 Per Pack)
20
277001061
Облицовка
21
278001713
Bouton D Arret *knob-stop (5.000 Per Pack)
22
278001714
Bouton Mode *knob-mode
23
278001715
Bouton Set *knob-set
24
277001069
Attache En ""u"" *bracket
25
293750002
Tie Rap 142mm *tie-rap 142mm (10.000 Per Pack)
26
250000036
Screw-socket Set M6x16 Ss304-a2 (5.000 Per Pack)
28
277001485
Рычаг Газа
29
232860600
Nut-square Thin M6 Din.562a2 (10.000 Per Pack)
30
277000381
Goupille *pin (5.000 Per Pack)
31
277001023
Облицовка
32
277000851
Трос газа
33
295500691
Black Handle Grip Kit Includes 33 - 37.
35
277000203
Capuchon Gaine *cap-grip Black (2.000 Per Pack)
36
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
37
250000002
Screw-hex.cap Din.933a2 S.grip (25.000 Per Pack)
38
277001472
Support *support Includes 38 - 39.
39
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
40
277001473
Palier Bras *thrust-arm Includes 40 - 41.
41
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
42
207162560
Screw-hex.cap Din.933a2 (5.000 Per Pack)
43
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
44
211000081
Screw-hex.cap (5.000 Per Pack)
45
277001528
Palier Support *thrust Support
46
207065060
Screw-hex.cap Din.931a2 (5.000 Per Pack)
47
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
48
277001471
Support Direct.*support-steer. Includes 48 - 50.
49
271001115
Logement Ecrou *housing-nut Includes 49 - 50.
50
232001600
Nut-hexagonal Din.934a2 (5.000 Per Pack)
51
293550010
Graisse Synth. *grease-synth.
52
277001522
Support Cable *support-cable Includes 52 - 55.
53
269500252
Logement Ecrou *housing-nut As Includes 53 - 54. (2.000 Per Pack)
54
232061600
Nut-hexagonal Din.934a2 (5.000 Per Pack)
55
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
56
207162060
Screw-hex.cap Din.933a2 (5.000 Per Pack)
57
291002147
Ergot D Ancrage*stud-latch
58
293830078
Прокладка резиновая
59
277001583
Embout Grand *end Piece Includes 59 - 62.
60
277000782
Bouton Ajust. *knob-ajust.
61
211100056
Nut-hex. 1/4-28 Ss-304 (10.000 Per Pack)
62
277000441
Racleur *wiper-terminal
63
234081600
Washer-flat Din.125a-a2 (10.000 Per Pack)
64
277001180
Шаровой наконечник
65
277001729
Стопор троса
66
293830063
Rondelle Caout.*rubber Washer (10.000 Per Pack)
67
277001527
Полукольцо
68
277000441
Racleur *wiper-terminal
69
211100056
Nut-hex. 1/4-28 Ss-304 (10.000 Per Pack)
70
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
71
277000775
Шаровой наконечник
72
207063560
Screw-hex.cap Din.931a2 (5.000 Per Pack)
73
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
74
277001072
Support Direct.*support-steer.
75
291001886
Support Boyau *support-hose
76
293150026
Rivet-pop 1/8 *rivet-pop 1/8 (10.000 Per Pack)
77
234032600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
78
293250171
Joint Etanche *gasket (2.000 Per Pack)
