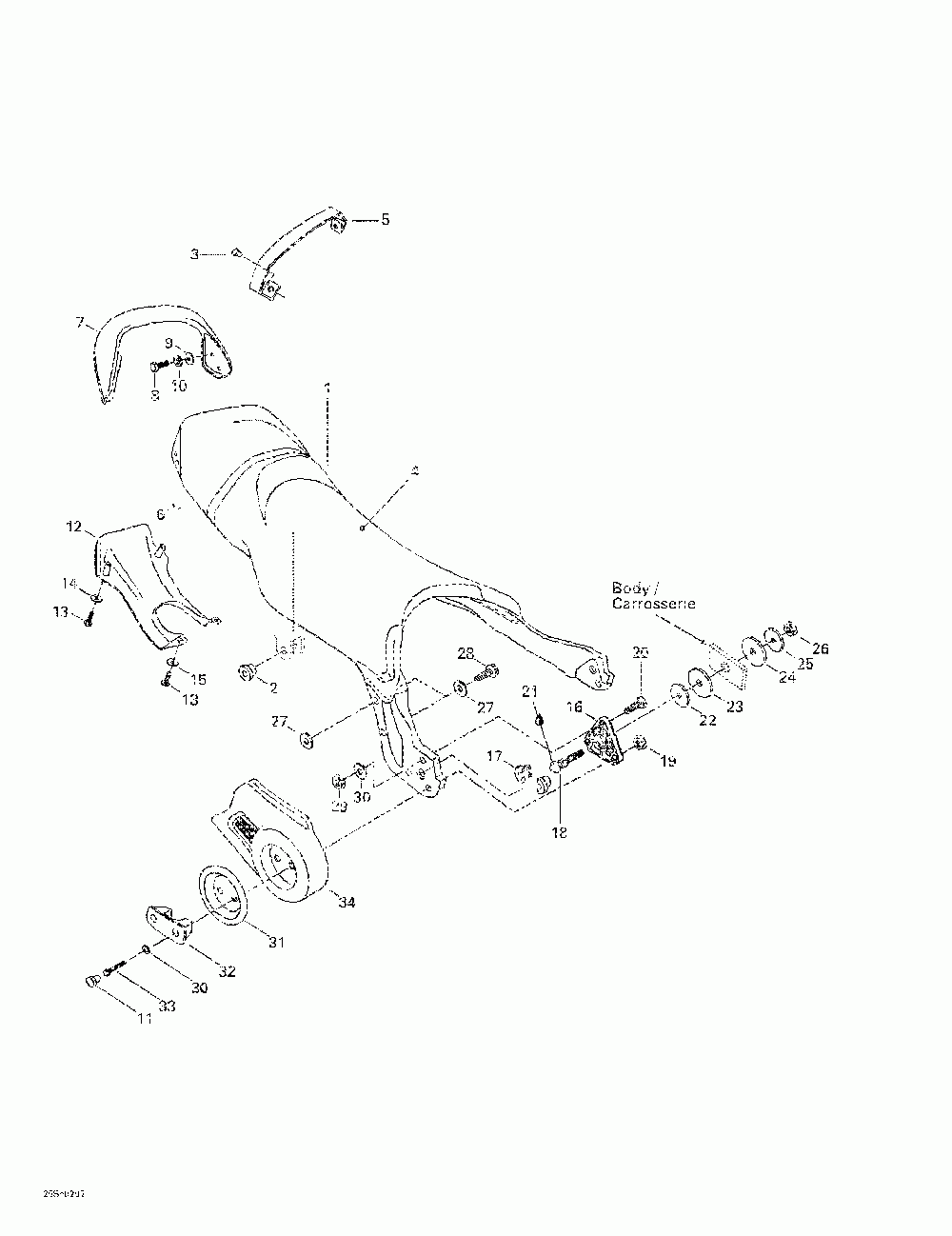

Сидение

Sea-Doo (Bombardier) XP, 5577/5578
Sea-Doo (Bombardier)
#oem кодцена
269000432
Couv.chassis Ga*cover-frame Lh
1
269000807
Siege Sub.assy *seat-sub-assy Includes 1 - 10.
2
269000427
12mm*spacer-12mm
3
293150067
Rivet Tri-fast *rivet-tri-fast (10.000 Per Pack)
4
269000807
Siege Sub.assy *seat-sub-assy
5
269000443
Sangle De Siege*strap-yellow
6
293730005
Agrafe Monelle *staple-monelle
7
269000434
Poignee Noire *handle-grab
8
207382560
Screw-hex.cap Din.933a2 S.grip (10.000 Per Pack)
9
234081600
Washer-flat Din.125a-a2 (10.000 Per Pack)
10
234181601
Washer-lock Helical Din.127b-a2 (10.000 Per Pack)
11
277000203
Capuchon Gaine *cap-grip Black (2.000 Per Pack)
12
269000429
Couv.chass.arr.*cover-body Rr.
13
243041660
Screw-plastite Hex.unsl (5.000 Per Pack)
14
234051600
Washer-flat Din.125a-a2 (10.000 Per Pack)
15
234052600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
16
269000448
Pivot Siege *pivot-seat Includes 16 - 20.
19
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
20
207063044
Screw-hex.cap Din.931 (10.000 Per Pack)
21
293550010
Graisse Synth. *grease-synth.
22
211200030
Шайба
23
293830029
Rondelle Caout.*washer-rubber (5.000 Per Pack)
24
250200028
Rondelle *rubber Washer
25
269000137
Шайба *шайба
26
232581600
Nut-stop Elastic Din.985a2 (5.000 Per Pack)
27
234042600
Washer-flat Din.9021b-a2 (5.000 Per Pack)
28
241142560
Screw-pt.hex.flange K40 X 25 (5.000 Per Pack)
29
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
30
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
31
292000438
Coquille *shell
32
269000430
Amarre Siege *bow-eye Seat
33
207165060
Screw-hex.cap Din.933a2 (25.000 Per Pack)
34
269000431
Couv.chassis Dr*cover-frame Rh
