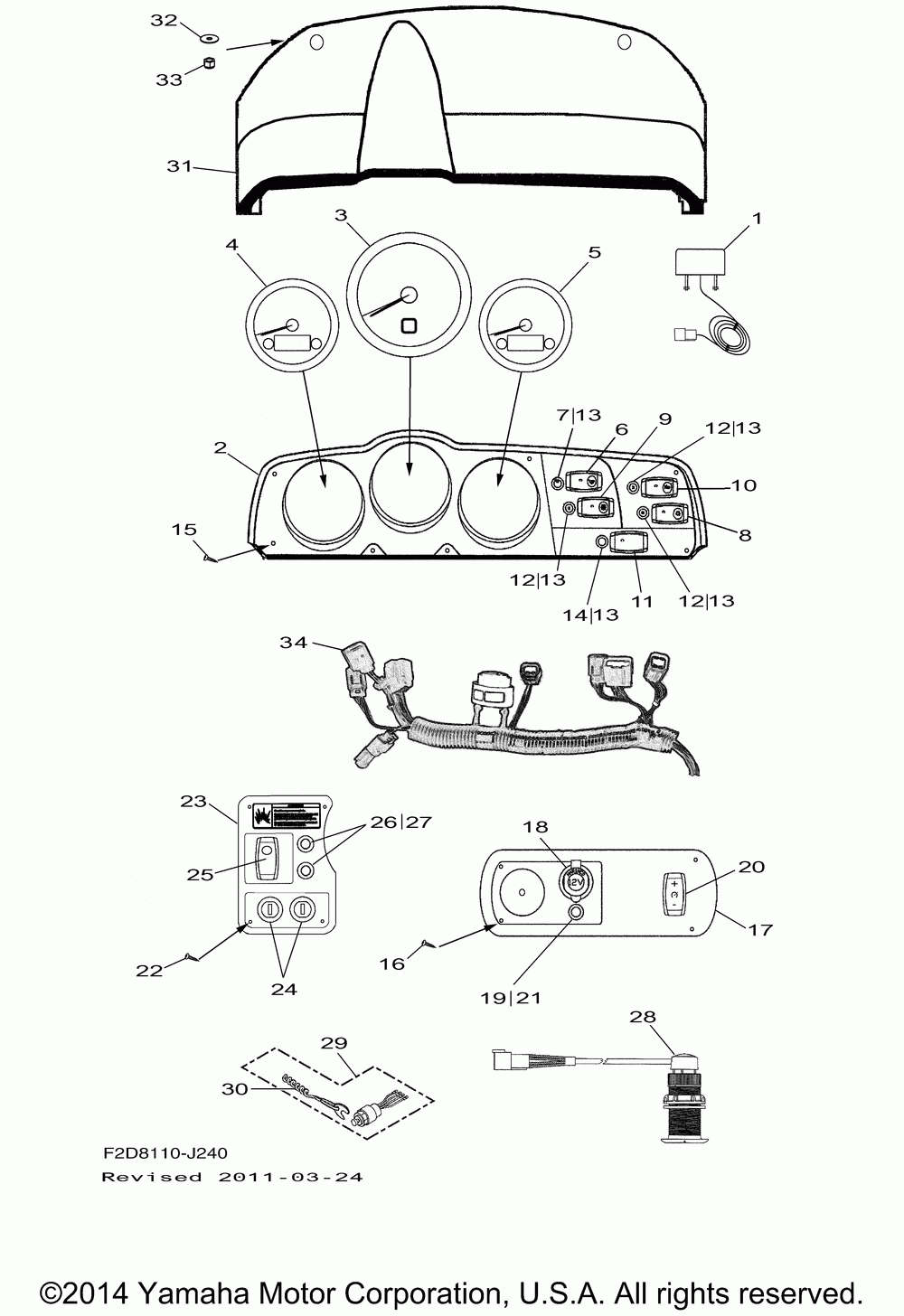

Электрика 4

Yamaha 242 LIMITED SXT1800JK
Yamaha
#oem кодцена
1
F2D-U8K1L-00-00
Antena, Gps
2
F2D-U82B3-10-00
Panel, Meter 1
3
F2D-U822N-10-00
Спидометр
4
F2D-U8245-20-00
Tachometer
5
F2D-U8245-30-00
Tachometer
6
F2D-U8012-00-00
B.pump Sw.assy
7
F1C-U8348-10-00
Breaker (3 Amp) 3a
8
F2D-U8026-00-00
R.light Sw.assy
9
F2D-U8029-00-00
B.stern Light Sw.
10
F2D-U8011-00-00
Horn Switch Assy
11
F2D-U8312-00-00
Switch, Pull
12
F1C-U8348-00-00
Breaker (5 Amp) 5a
13
F0R-U8188-10-00
Circuit Breaker Cove
14
F1C-U8348-20-00
Breaker (4 Amp) 4a
15
90169-08SA3-00
Screw Truss Head
16
90169-08SA3-00
Screw Truss Head
17
F2D-U82B5-30-00
Panel, Switch 1
18
F0K-U8284-00-00
Socket, 12 Acc
19
F1C-U8348-30-00
Breaker (10amp) 10a
20
F2D-U8090-00-00
Реле
21
F0R-U8188-10-00
Circuit Breaker Cove
22
90169-08SA3-00
Screw Truss Head
23
F2D-U82B6-10-00
Panel, Side 1
24
F1C-U8036-02-00
Key Switch Pack Assy
25
F1C-U8022-00-00
Switch Assy, Blowe
26
F1C-U8348-20-00
Breaker (4 Amp) 4a
27
F0R-U8188-10-00
Circuit Breaker Cove
28
F2D-U8K1W-01-00
Датчик
29
F2A-6834C-00-00
Lanyard, Stop Switch
30
682-82556-00-00
Шнур остановки двигателя
31
F2D-U8262-10-00
Cover Meter
32
90209-10SB1-00
Шайба
33
90185-10S00-00
Гайка
34
F2D-U827D-00-00
Wire, Harness 2
