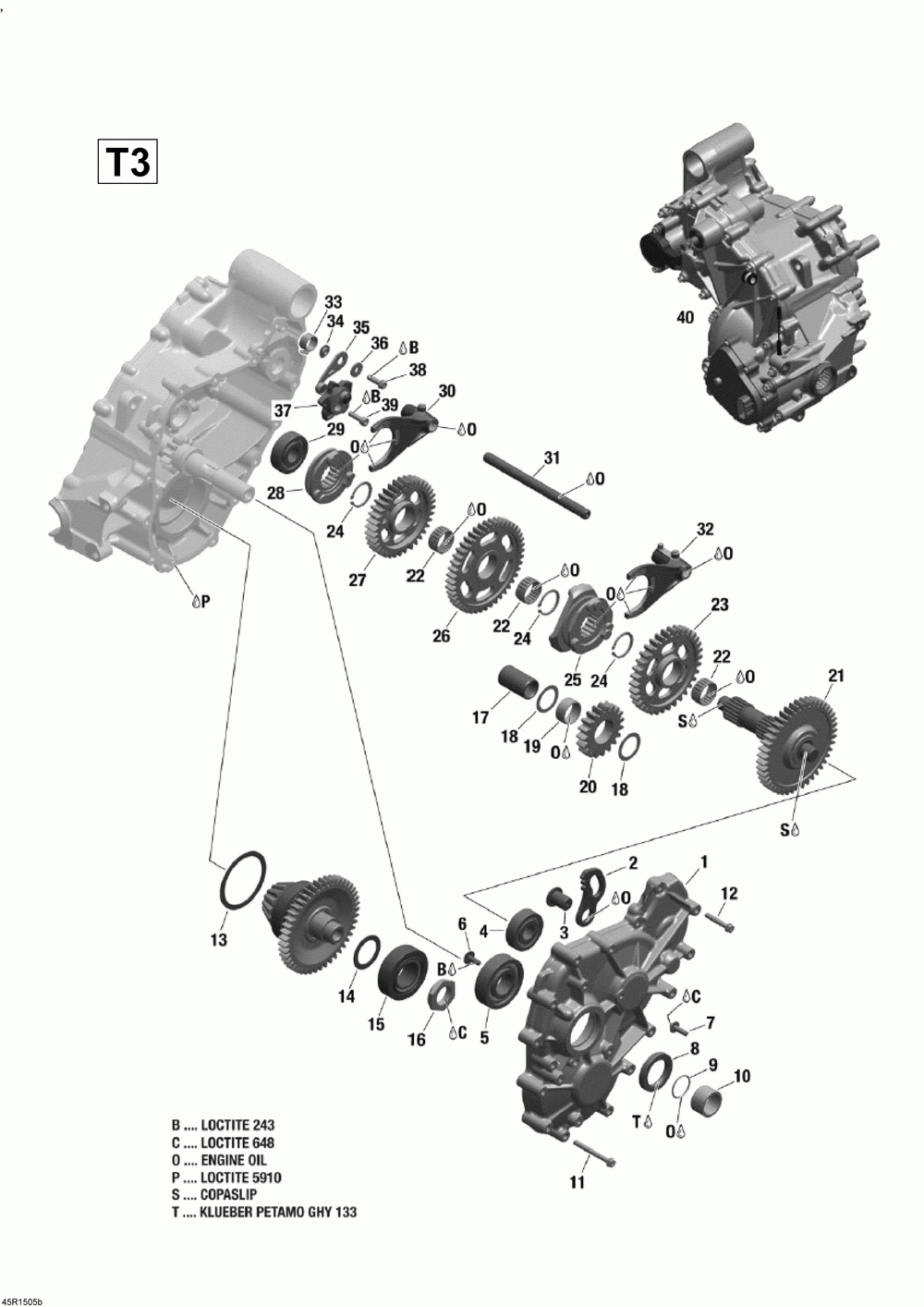

gear box 2 (t3)

Can-Am (Bombardier) Outlander 500 EFI
Can-Am (Bombardier)
#oem кодцена
2
420257654
Parking Lock Lever
3
420647123
Manchon*collar Sleeve
4
420932815
Ball Bearing 6303e
5
420932825
Подшипник
6
420241529
Torx Screw M6 X 16 Tightening Torque 10 Nm +/- 12%
7
420441431
Distance Screw M6 Tightening Torque 10 Nm +/- 12%
8
420950089
Oil Seal Included In Gasket Kit
9
420631610
O-ring Included In Gasket Kit
10
420647253
Distance Ring
11
420440702
Flanged Torx Screw M6 X 55 Tightening Torque 10 Nm +/- 12%
12
420440274
Flanged Torx Screw M6 X 35 Tightening Torque 10 Nm +/- 12%
17b
420620687
Intermediate Gear Shaft
18
420944476
Упорная шайба
19
420932930
Игольчатый подшипник
20
420434588
Engrenage*intermediate Gear 19t
21
420637047
Arbre*main Shaft
22
420632070
Игольчатый подшипник
23
420434871
Gear Pinion, 34 Teeth
24
420845771
Стопорное кольцо
25
420257953
Shifting Sleeve
26
420434865
Gear Pinion, 46 Teeth
27
420434857
Pinion*pinion Gear 36t
28
420257944
Shifting Sleeve
29
420932815
Ball Bearing 6303e
30
420257629
Shift Fork
31
420258387
Fork Spindle
32
420258515
Shift Fork Ass Y
33a
420248532
Index Lever Ass Y Includes 33a To 37
38
420440207
Flanged Torx Screw M6 X 20 Tightening Torque 10 Nm +/- 12%
39
420241939
Allen Screw M6 X 20 Tightening Torque 10 Nm +/- 12%
40
420685807
Gear Box
