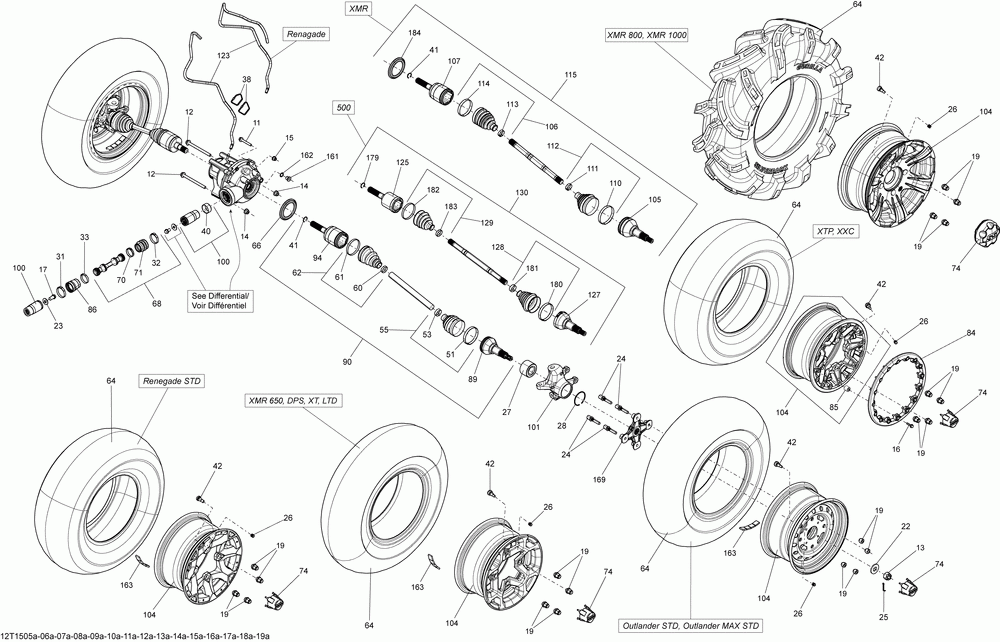

Привод передний

Can-Am (Bombardier) Outlander 800R EFI Xmr
Can-Am (Bombardier)
#oem кодцена
11
207685544
Hex. Flanged Screw M8 X 55 (2.000 Per Pack)
12
230602546
Hex. Flanged Screw M10 X 125
13
250100047
Hex. Castellated Nut M18 (5.000 Per Pack)
14
233201436
Flanged Elastic Nut M10 (10.000 Per Pack)
15
233281414
Гайка М8
16
250000435
Hex. Flanged Screw M6 X 25 (8.000 Per Pack)
17
250000540
Hex Flanged Screw M12 X 20
19
250100100
Black Wheel Nut M10 X 1.25 (4.000 Per Pack)
22
250200049
Rondelle Ress. *spring Washer (5.000 Per Pack)
23
250200102
Flat Washer M12 (5.000 Per Pack)
24
250300048
Wheel Stud
25
250400036
Cotter Pin (5.000 Per Pack)
26
293000110
Valve Cap
27
293350040
Подшипник
28
293370019
СТОПОРНОЕ КОЛЬЦО
31
293650138
Хомут
32
293650138
Хомут
33
293650199
Хомут
38
414115200
Tie-rap 180 Mm (50.000 Per Pack)
40
705400036
Wear Ring
41
705401349
Circlip Joint
42
705400193
Rim Valve With Cap
64
705400962
Pneu *tire
68
705400913
Front Drive Axle Ass Y
70
509000045
Хомут
71
715900118
Rubber Boot
74
705401318
Wheel Cap
86
705401093
Rubber Boot
100
703500678
Front Bushing Shaft Kit
101
705401290
Lh Knuckle
101
705401291
Rh Knuckle
104
705401552
Обод
105
705401407
Cv Joint
106
705401355
Ens.soufflet *kit-boot Differential
107
705401357
Rh Plunging Joint
107
705401359
Lh Plunging Joint
110
715900260
Oetiker Clamp, Large
111
715900261
Oetiker Clamp, Small
112
705401354
Пыльник ШРУСа комп-кт
113
715900261
Oetiker Clamp, Small
114
715900262
Oetiker Clamp, Large
115
705401383
Rh Homocinetic Joint
115
705401384
Lh Homocinetic Joint
123
415080200
Шланг, Полиуретановый
161
705500504
Сливная пробка
162
705500506
Copper Washer (10.000 Per Pack)
169
705501716
Wheel Hub Ass Y
184
705401177
Wear Ring
