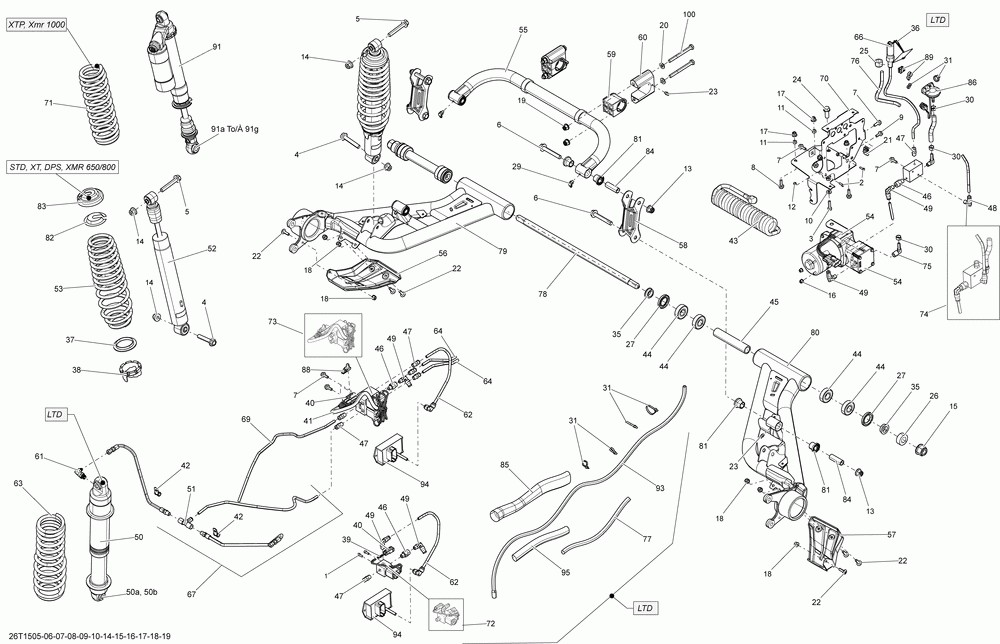

Задняя подвеска

Can-Am (Bombardier) Outlander MAX 1000 EFI
Can-Am (Bombardier)
#oem кодцена
4
207605546
Flanged Hex. Screw M10 X 55
5
207606046
Flanged Hex. Screw M10 X 60 (5.000 Per Pack)
6
207606536
Hex Flange Screw M10 X 65
13
233201414
Hex. Flanged Elastic Nut M10 (10.000 Per Pack)
14
233201436
Flanged Elastic Nut M10 (10.000 Per Pack)
15
233211466
Hex. Flanged Elastic Nut M16
18
233261494
Hex. Elastic Flanged Nut M6 (10.000 Per Pack)
19
233281434
Гайка М8
20
234081430
Шайба Плоская М8
22
250000722
Torx Screw M6 X 20
23
250000315
Масленка
26
250200112
Flat Washer M17
27
293200144
Сальник
29
293550056
Grease Fitting 90
35
706001282
Проставка
37
503187500
Spring Guide
38
505070150
Adjustment Cam
44
706000826
Подшипник
45
706000828
Проставка
52
706000970
Задний Амортизатор
53
706000971
Black Spring
55
706000988
Swaybar
56
706001009
Lh Protector
57
706001010
Rh Protector
58
706001020
Swaybar Linkage
59
706001098
Подушка
60
706001099
Bushing Holder
71
706001362
Black Spring Package-xtp
78
706001664
Axial Pivot M16
79
706001860
Black Lh Swing Arm
80
706001861
Black Rh Swing Arm
81
703500875
Kit Coussinet *cushion Kit Includes 84
82
706200785
Крышка
83
706200881
Пружина
84
703500875
Kit Coussinet *cushion Kit Includes 81
91
706001572
Rear Shock Package-xtp, Includes 91a To 91g
91a
715900209
O-ring Bushing Package-xtp
91b
715900210
Interior Bushing Package-xtp
91c
706201648
Grommet *bushing Package-xtp
91d
706201585
Bushing Sleeve Package-xtp
91e
706201586
Bushing Sleeve Package-xtp
91f
715900251
Spherical Bearing Package-xtp
91g
715900252
Retaining Ring Package-xtp
100
207088587
Hex, . Screw M8 X 85
