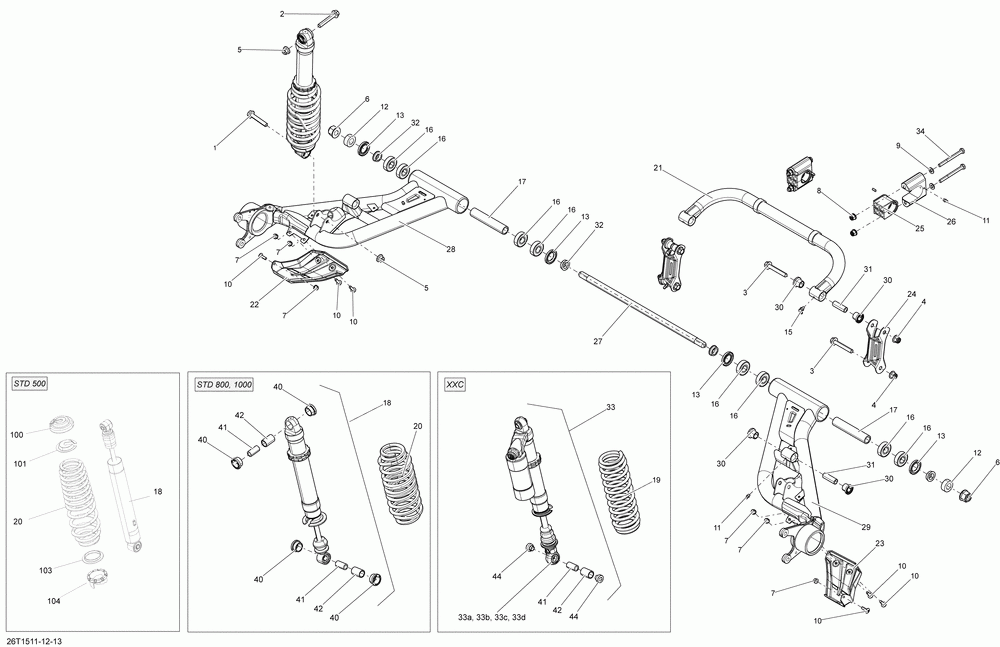

Задняя подвеска

Can-Am (Bombardier) Renegade 800R EFI
Can-Am (Bombardier)
#oem кодцена
1
207605546
Flanged Hex. Screw M10 X 55
2
207606046
Flanged Hex. Screw M10 X 60 (5.000 Per Pack)
3
207606536
Hex Flange Screw M10 X 65
4
233201414
Hex. Flanged Elastic Nut M10 (10.000 Per Pack)
5
233201436
Flanged Elastic Nut M10 (10.000 Per Pack)
6
233211466
Hex. Flanged Elastic Nut M16
7
233261494
Hex. Elastic Flanged Nut M6 (10.000 Per Pack)
8
233281434
Гайка М8
9
234081430
Шайба Плоская М8
10
250000722
Torx Screw M6 X 20
11
250000315
Масленка
12
250200112
Flat Washer M17
13
293200144
Сальник
15
293550056
Grease Fitting 90
16
706000826
Подшипник
17
706000828
Проставка
18
706001904
Rear Shock Includes 40 To 42
19
706002035
Yellow Spring Package-xxc
20
706000955
Yellow Spring Package-std
21
706000988
Swaybar
22
706001009
Lh Protector
23
706001010
Rh Protector
24
706001020
Swaybar Linkage
25
706001098
Подушка
26
706001099
Bushing Holder
27
706001664
Axial Pivot M16
28
706001860
Black Lh Swing Arm Model-std
28
706001868
Yellow Lh Swing Arm Model-xxc
29
706001861
Black Rh Swing Arm Model-std
29
706001869
Yellow Rh Swing Arm Model-xxc
30
703500875
Kit Coussinet *cushion Kit Includes 31
31
703500875
Kit Coussinet *cushion Kit Includes 30
32
706001282
Проставка
33
706001908
Rear Shock Model-xxc, Includes 33a To 33d, 41, 42, 44
33a
715900209
O-ring Bushing Model-xxc
33b
706201648
Grommet *bushing Model-xxc
33c
715900251
Spherical Bearing Model-xxc
33d
715900252
Retaining Ring Model-xxc
34
207088587
Hex, . Screw M8 X 85
40
706201584
Grommet *bushing Model-std
41
706201586
Bushing Sleeve Model-std/xxc
42
706201585
Bushing Sleeve Model-std/xxc
44
715900210
Interior Bushing Model-xxc
