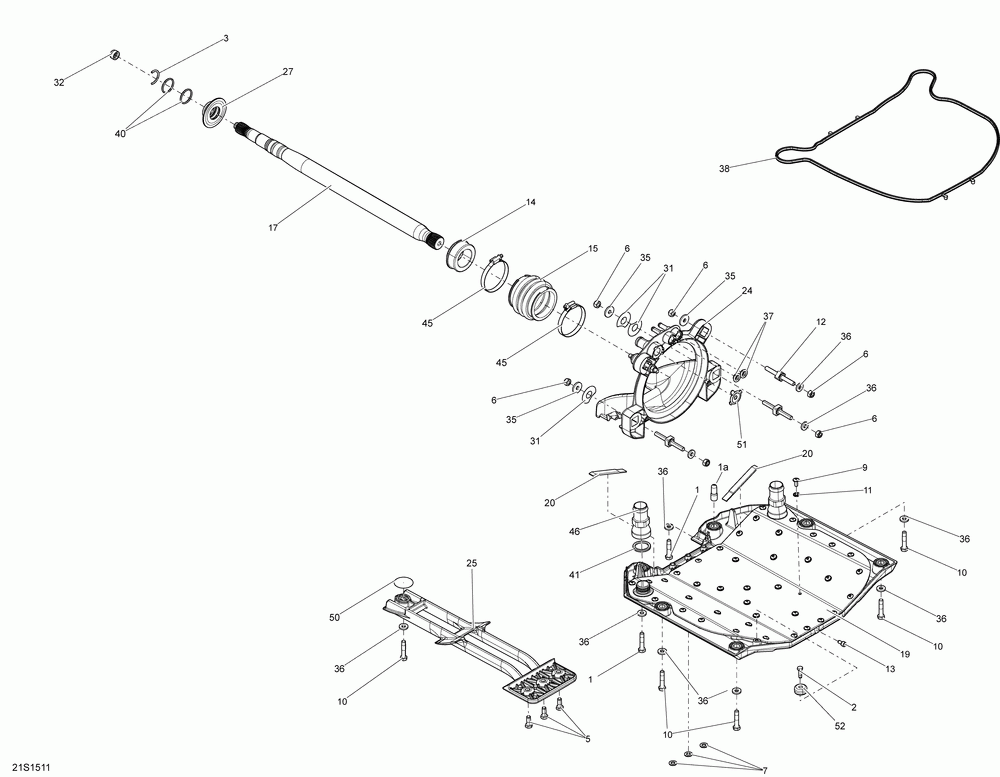

05- propulsion _21s1511

Sea-Doo (Bombardier) RXP-X 260 & RS
Sea-Doo (Bombardier)
#oem кодцена
1
250000782
Hexagonal Head Cap Screw M8 X 45 Hull Lfi
1
250000812
Screw-hex.cap S.grip M8 X 75 Hull Acmp
1a
293000105
Cap Plug Hull Acmp
2
207362060
Hex. Screw M6 X 20, Scotch Grip (10.000 Per Pack)
3
271001577
C-clip
5
207381660
Hex. Screw M8 X 16, Scotch Grip (10.000 Per Pack)
6
232581200
Hex. Elastic Nut M8, Brass (5.000 Per Pack)
7
234081600
Flat Washer 8 Mm, Stainless (10.000 Per Pack)
9
250000384
Torx Screw M6 X 14
10
250000782
Hexagonal Head Cap Screw M8 X 45
11
250200114
Sealing Washer
12
250300046
Square Stud
13
250500005
Socket Drain Plug M6 X 12 (4.000 Per Pack)
14
271001420
Carbon Ring
15
271001933
Сапун
17
271001719
Drive Shaft
19
271001750
Riding Plate Ass Y
20
293250087
Gasket, Neoprene
24
271001931
Support Pompe *pump Support Hull Acmp
24
271001865
Pump Support Hull Lfi
25
271001867
Grille Pompe *grate-pump
27
295501144
Kit Bague Carbone *carbon Ring Kit
31
272000053
Shim, 0.3 Mm (5.000 Per Pack)
32
272000173
Drive Shaft Plug
35
279000164
Шайба
36
293050001
Flat Washer (5.000 Per Pack)
37
293250084
Watertight Seal
38
293250235
Уплотнение
40
293300107
O-ring (2.000 Per Pack)
41
293300121
Уплотнительное кольцо
45
293650079
Norma Clamp (2.000 Per Pack)
46
293710111
Straight Plastic Fitting
50
293830047
Protector Disk
51
271001903
Reducer
52
271001920
Anode Zinc
