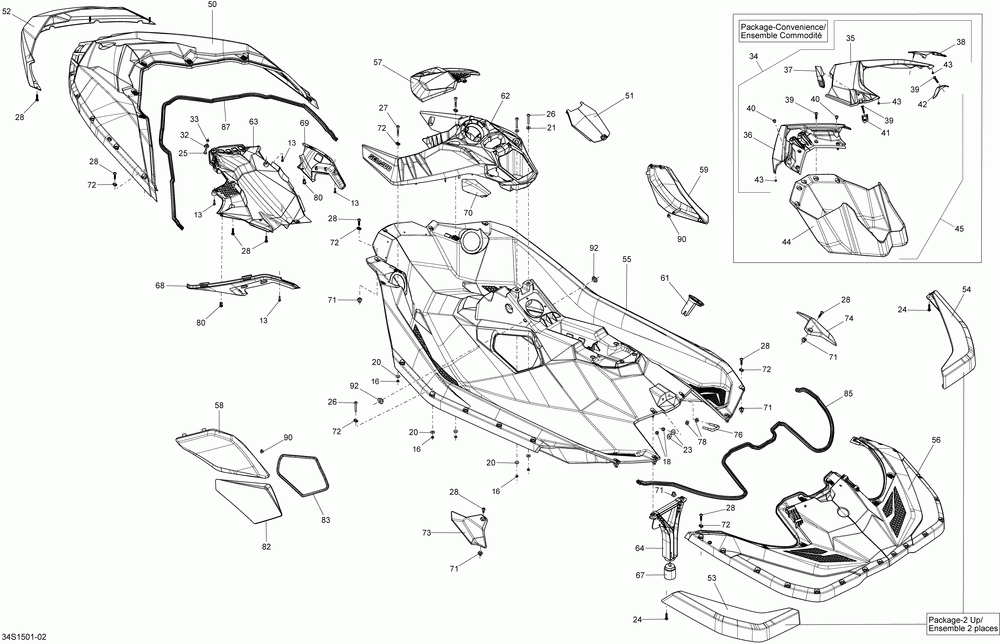

09- body _34s1501

Sea-Doo (Bombardier) SPARK ACE 900 (2up)
Sea-Doo (Bombardier)
#oem кодцена
13
211000023
Hex Screw 10 14 X 7/8" (5.000 Per Pack)
16
232561200
Nut-stop Elastic Din.985 (5.000 Per Pack)
18
232581200
Hex. Elastic Nut M8, Brass (5.000 Per Pack)
20
234062600
Flat Washer M6, Stainless (10.000 Per Pack)
21
250200150
Flat Washer M6, Stainless
23
234082600
Flat Washer 8 Mm, Stainless (10.000 Per Pack)
24
250000709
Torx Screw M6.81 X 30 Package-2 Up
25
250000711
Torx Screw M6 X 20
26
250000708
Screw Torx M6 X 50
27
250000708
Screw Torx M6 X 50
28
250000709
Torx Screw M6.81 X 30
32
269501166
Nut Housing Ass Y Includes 33
33
232561200
Nut-stop Elastic Din.985 (5.000 Per Pack)
34
295100553
Front Deflector Kit Package-convenience, Includes 35 To 43
37
269800472
Lh Retaining Strap Package-convenience
38
269800498
Rh Retaining Strap Package-convenience
39
250000709
Torx Screw M6.81 X 30 Package-convenience
40
293830005
Rubber Bumper Package-convenience (5.000 Per Pack)
41
269800541
Lh Hook Package-convenience
42
269800542
Rh Hook Package-convenience
43
269800662
Rubber Bumper Package-convenience
45
295100504
Storage Bin Kit Package-convenience, Includes 35 To 44
50
291003377
Grey Front Deck Model-gray-white
50
291003819
Yellow Front Deck Model-yellow-white
50
291003820
White Front Deck Model-white-white
50
291003821
Magenta Front Deck Model-magenta-white
50
291003822
Orange Front Deck Model-orange-white
51
291003378
Glove Box Cover
52
291003379
Передний Бампер
53
291003380
Lh Rear Bumper Package-2 Up
54
291003381
Rh Rear Bumper Package-2 Up
55
291003382
Carrosserie *deck +
56
291003383
Grey Rear Deck Model-gray-white
56
291003823
Yellow Rear Deck Model-yellow-white
56
291003824
White Rear Deck Model-white-white
56
291003825
Magenta Rear Deck Model-magenta-white
56
291003826
Orange Rear Deck Model-orange-white
57
291003386
Grey Trim Model-gray-white
57
291003827
Yellow Trim Model-yellow-white
57
291003828
White Trim Model-white-white
57
291003829
Magenta Trim Model-magenta-white
57
291003830
Orange Trim Model-orange-white
58
291003387
Lh Knee Pads
59
291003388
Rh Knee Pads
61
291003390
Rear Access Cover
62
291003404
Консоль
63
291003439
Крышка
64
291003440
Rear Support
67
291003694
Rear Support Mount
68
291003696
Lh Panel Trim
69
291003697
Rh Panel Trim
70
291003702
Крышка
71
291003793
Logement *insert
72
291003880
Oval Washer
73
291003883
Lh Rear Panel Trim
74
291003884
Rh Rear Panel Trim
76
292000933
U-clamp
78
293050001
Flat Washer (5.000 Per Pack)
80
293150089
Пластиковая Заклепка
82
291004155
Front Access Cover Includes 83
83
293300121
Уплотнительное кольцо
85
293250340
Seal Joint
87
293250341
Seal Joint
90
293830005
Rubber Bumper (5.000 Per Pack)
92
705000321
Oval Washer (2.000 Per Pack)
