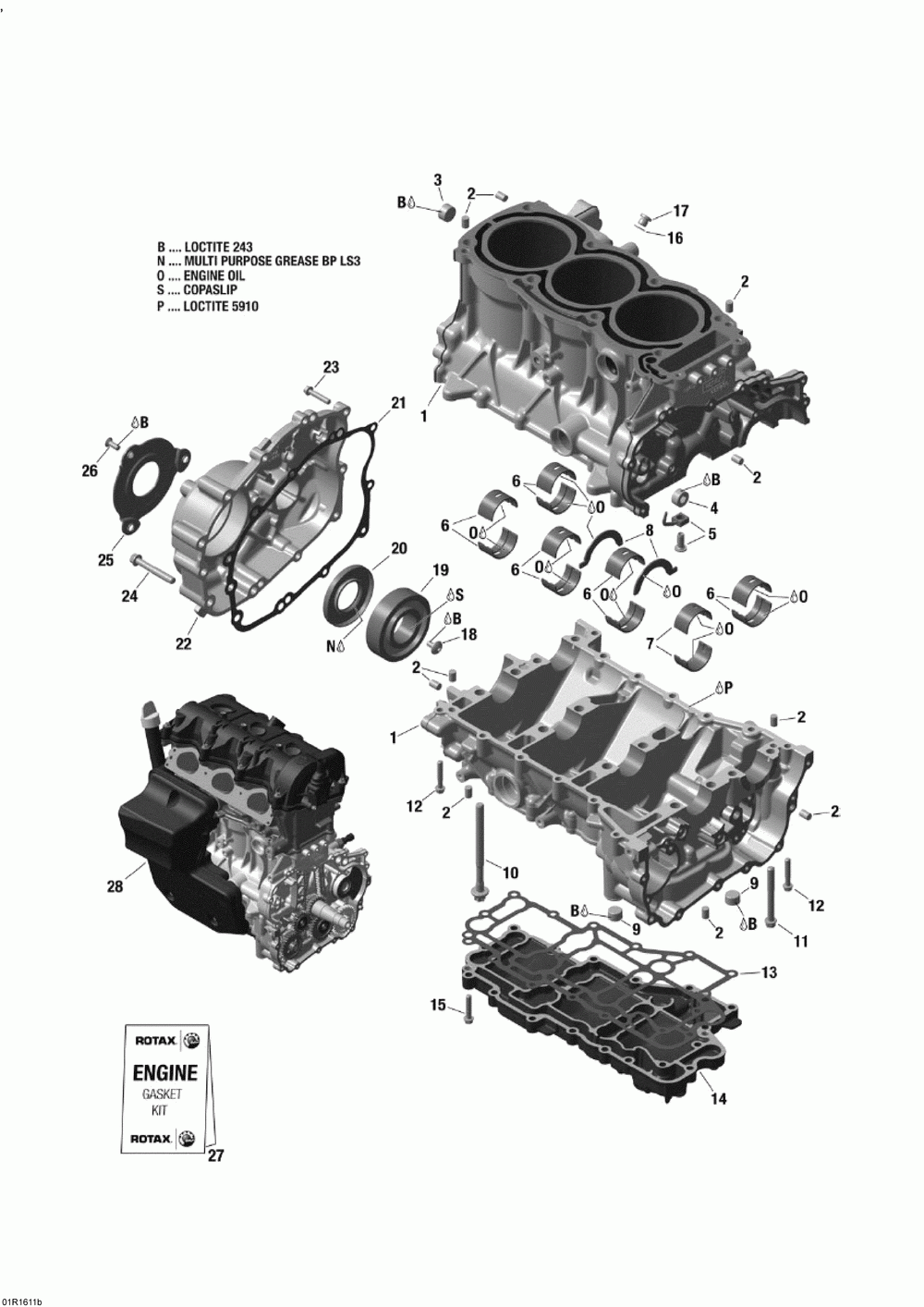

01 - блок двигателя - 1200 4-ТЕС

Ski-Doo (Bombardier) EXPEDITION -LE/ SE / - 4-STROKE
Ski-Doo (Bombardier)
#oem кодцена
1
420891887
Crankcase Ass Y Includes 1 To 7
2
420632010
Контактный Центр 8 Х 12
4
420240170
Plug Screw M18 X 1.5 Tightening Torque 20 Nm
5
420956774
Obturateur *oil Spray Nozzle Tightening Torque 19 Nm
6
420933852
Вкладыш
7
420933862
Вкладыш
8
420933140
Полу кольцо стопор
9
420240178
Screw Plug M16 X 1.5 Tightening Torque 16 Nm
10
420940945
Flanged Torx Screw M9 X 113 Tightening Torque 20 Nm +120
11
420840211
Flanged Torx Screw M8 X 70 Tightening Torque 25 Nm
12
420440274
Flanged Torx Screw M6 X 35 Tightening Torque 11 Nm
13
420430770
Joint Etanche *gasket Included In Gasket Kit
14
420611822
Масляный Поддон Крышка
15
420440649
Flanged Torx Screw M6 X 30 Tightening Torque 11 Nm
16
420230150
Oil Seal Included In Gasket Kit (5.000 Per Pack)
17
420641733
Plug Screw M10 X 1 Tightening Torque 12 Nm
18
420241535
Hex. Screw M6 X 13 Tightening Torque 11 Nm
19
420432125
Подшипник
20
420431402
Oil Seal Included In Gasket Kit
21
420430760
Joint Etanche *gasket Included In Gasket Kit
22
420611845
Pto Cover
23
420440647
Flanged Torx Screw M6 X 30 Tightening Torque 11 Nm
24
420641213
Flanged Torx Screw M8 X 55 Tightening Torque 25 Nm
25
420910240
Прокладка
26
420440906
Countersunk Screw M6 X 16 Tightening Torque 11 Nm
27
420893054
Ensemble*gasket Kit 1203
