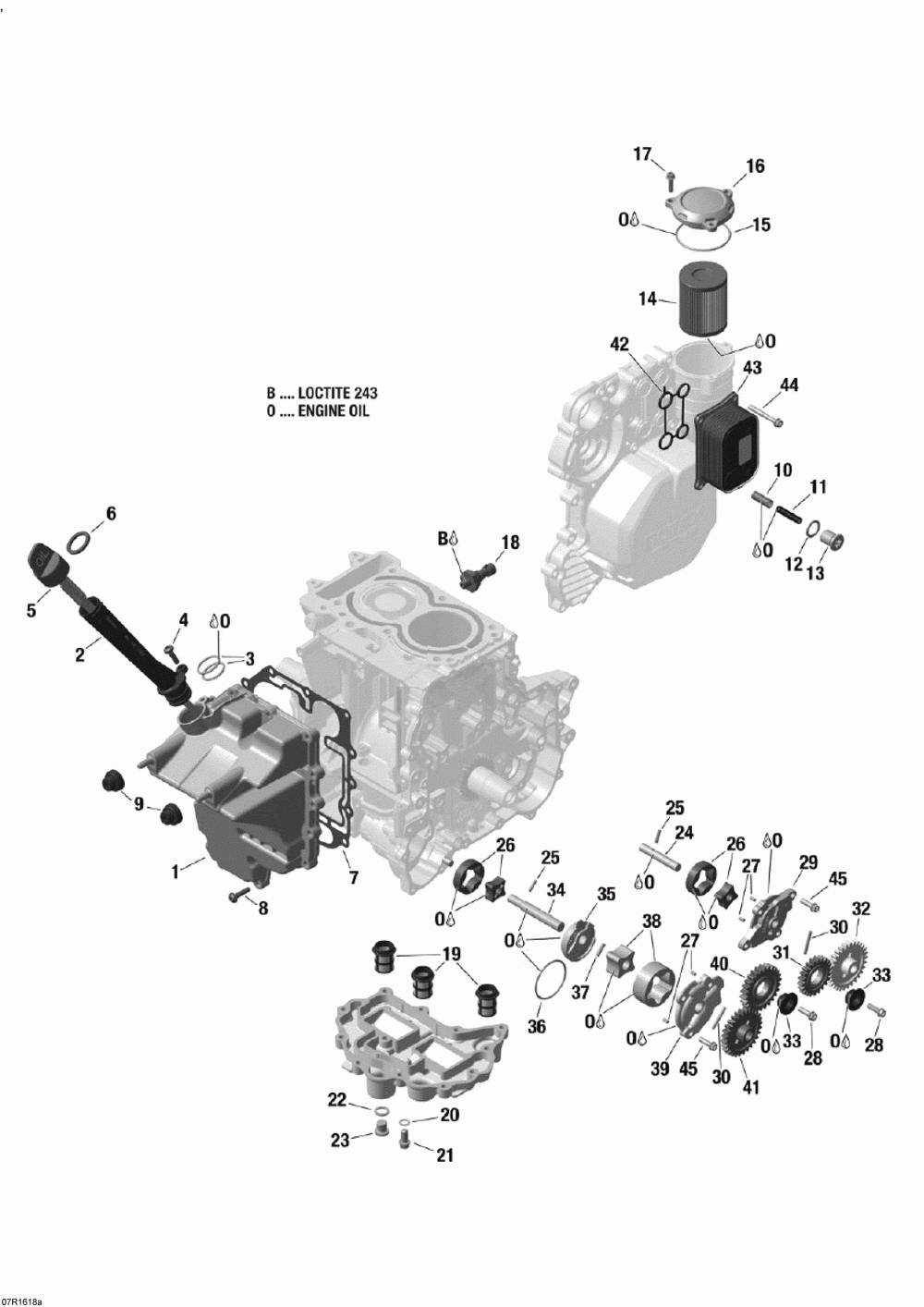

смазки двигателя - 600 Запчасти для снегоходов Ski-Doo (Bombardier) SKANDIC

смазки двигателя - 600

Ski-Doo (Bombardier) SKANDIC - 4-STROKE

oem код

название

цена

420956210

Крышка насоса

420656900

Маслоналивная Трубка

420430440

O-ring Included In Gasket Kit

420441386

Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%

420856665

Oil Lever Tube Includes 5 To 6

420431790

Anneau*gasket Ring Included In Gasket Kit

420431770

Joint Etanche *gasket Included In Gasket Kit

420841549

Flanged Torx Screw M6 X 25 Tightening Torque 9 Nm +/- 12% Retry Torque 11nm +/- 12%

420860150

Резиновый патрубок

420256517

Pression Regulating Piston

420239445

Пружина

420430622

Gasket Ring Included In Gasket Kit

420441372

Plug Screw Tightening Torque 17 Nm +/- 12%

420956123

Масляный Фильтр

420650500

O-ring Included In Gasket Kit

420612132

Крышка масленного фильтра

420440207

Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%

420256915

Oil Pressure Switch Tightening Torque 12 Nm +/- 12%

420656680

Масло

420950141

Sealing Ring Included In Gasket Kit (5.000 Per Pack)

420440852

Flanged Torx Screw M8 X 16 Tightening Torque 15 Nm +/- 12%

420250640

Copper Washer Included In Gasket Kit

420241700

Plug Screw M12 X 1.5 Tightening Torque 15 Nm +/- 12%

420820120

Масляный Насос Вал

420232731

Иглы Контактный

420256348

Масляный Насос Ротора

420929075

Иглы Контактный

420440207

Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%

Крышка насоса

Иглы Контактный

Idle Gear, 22 Teeth

Oil Pump Gear, 29 Teeth

Резиновая прокладка

Масляный Насос Вал

Крышка насоса

O-ring Included In Gasket Kit

420632220

Иглы Контактный

420256836

Масляный Насос Ротора

420611980

Крышка насоса

420835321

Idle Gear, 26 Teeth

420834887

Oil Pump Gear, 28 Teeth

420431870

Joint Etanche *gasket Included In Gasket Kit

420656697

Масляный Радиатор

420440324

Flanged Torx Screw M6 X 45 Tightening Torque 9 Nm +/- 12%

420440207

Flanged Torx Screw M6 X 20 Tightening Torque 9 Nm +/- 12%
