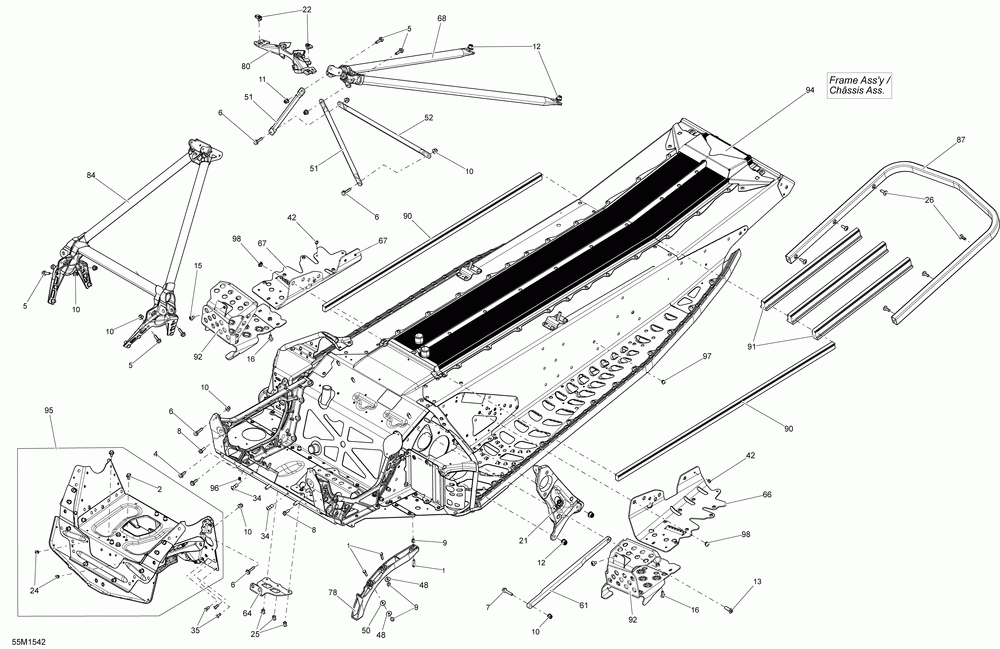

Рама

Ski-Doo (Bombardier) MXZ X-RS 600HOE XS RS
Ski-Doo (Bombardier)
#oem кодцена
1
207152044
Hex. Screw M5 X 20 (10.000 Per Pack)
2
207561044
Flanged Screw M6 X 10, Scotch Grip (5.000 Per Pack)
4
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
5
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
6
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
7
207663034
Винт M6 X 30 (5 шт в упаковки)
8
210261680
Hex. Flanged Screw M6 X 16 (10.000 Per Pack)
9
233251434
Flanged Elastic Nut M5 (4.000 Per Pack)
10
233261414
Резиновая гайка фиксатор М6
11
233261416
Elastic Flanged Nut M6
12
233281414
Гайка М8
13
250000143
Torx Screw M8 X 25, Scotch Grip (10.000 Per Pack)
15
250000325
Torx Truss Screw M6 X 12 (4.000 Per Pack)
16
250000365
Torx Screw M6 X 16 (5.000 Per Pack)
21
518328346
Pulley Support
22
250000079
Гайка М5 Х 0,8
24
293150144
Stavex Rivet (20.000 Per Pack)
25
293150147
Hemlock Rivet (10.000 Per Pack)
26
250000402
Torx-truss Screw M6 X 18 (5.000 Per Pack)
34
293150182
Monobolt Rivet 6.4 (2.000 Per Pack)
35
293150191
Monobolt Rivet, 4.8 Mm (4.000 Per Pack)
42
390402200
Pop Rivet 3/16" (50.000 Per Pack)
48
391301600
Шайба
50
517124300
Шайба (отпускается по 10 шт)
51
518325114
Upper Column Support
52
518325115
Center Column Support
61
518326118
Link
64
518326466
Module Reinforcement
66
518327131
Кронштейн
67
518327132
Кронштейн
68
518326559
Rear Member
78
518326973
Front Protector
80
518327145
Sub A Support
84
518327565
Член Фронта
87
518327637
Black Rear Bumper
90
518328040
Front Protector
91
518328041
Rear Protector
92
518328106
Подножка правая
92
518328107
Подножка Левая
94
415129959
Frame Ass Y, Racing
95
518328551
S Module *cross Member
96
293730053
Black Dart 5 Mm
97
293730047
Black Dart 8 Mm
98
293730060
Black Dart 10 Mm
